Nhà Máy Giá Mới Cây Chi Nhánh Gỗ Shredder Chipper Máy Công Nghiệp/Nhà Máy Giấy Bánh Có Động Cơ Với Động Cơ Mang Cho Giấy Bột Giấy
999
Đã bán
442.929.089đ
433.031.232đ ~ 442.929.089đ
442.929.089đ
433.031.232đ ~ 442.929.089đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
433.031.232đ
BtIbnDzTxr
Mô tả sản phẩm
Áp dụng Các Ngành Công Nghiệp: Nhà Máy sản xuấtPhòng Trưng Bày Trí: Ý, Nước Pháp, Đức, Việt Nam, Philippines, Peru, Nga, Tây Ban Nha, Thái Lan, Maroc
Điều kiện: MớiLoại: Gỗ Chipper
Sử dụng: Making wood into chipsĐiện Loại: Điện
Nơi xuất xứ: Henan, ChinaNhãn hiệu: BEDO
Kích thước (L * W * H): different for different modelstrọng lượng: 7000 KG
Bảo hành: 1 NămTiếp Thị Loại: Hot Product 2024
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Chịu Lực, Động Cơ, Bánh Răng, Động Cơ
Name: Tree Branch Wood Shredder Chipper Machine For Paper Pulp IndustrialPower: 110kw
Certificaction: CEThickness of the plate: 25mm
Usgae: Making wood into chipsBlade Number: 2pcs
Max. feeding size: 700*310mmFinal wood chips size: 25-35mm
Feeding speed: 38m/minColor: Customer's Request
Product Description
The drum chipper is used for processing wood logs or tree branches into 20mm-40mm wood chips for various wood products industries and plants. Known as wood cutting machine, wood chipper belongs to wood processing equipment series.
Wood drum chipper is widely used in particleboard mill, medium or high-density fiberboard factory, biomass power plant, wood pellet plants and other industrial production factories.
Inner Structure
This wood chipper machine is made up of machine body, knife roller, the upper and lower feed roller, conveyor belt, hydraulic system.
The machine adopts high strength steel plate welded together, is the supporting basis of the whole machine. Install two or three, four flying knives in the knife roller. Using the fly-knife bolt specially manufactured to fix these fly-knives on the knife roller through the pressure block. According to different thickness of cutting materials, the upper feed roller can fluctuate within a certain range with the aid of hydraulic system. Qualified wood chips fall down through the sieve holes, and are discharged from the bottom large wood chips will be cut again within the machine.
Hydraulic System: for by the oil pump to the fuel tank, you can start the cover for easy blade replacement can lift the upper feed roller assembly when maintenance, easy to adjust throwing knives, the gap of dead knife and dismantling of the comb plate.
The machine adopts high strength steel plate welded together, is the supporting basis of the whole machine. Install two or three, four flying knives in the knife roller. Using the fly-knife bolt specially manufactured to fix these fly-knives on the knife roller through the pressure block. According to different thickness of cutting materials, the upper feed roller can fluctuate within a certain range with the aid of hydraulic system. Qualified wood chips fall down through the sieve holes, and are discharged from the bottom large wood chips will be cut again within the machine.
Hydraulic System: for by the oil pump to the fuel tank, you can start the cover for easy blade replacement can lift the upper feed roller assembly when maintenance, easy to adjust throwing knives, the gap of dead knife and dismantling of the comb plate.
Features of wood chipper
Different model with different feeding size and different capacity.
The final size of wood chips is 8-50mm, which depends on customers'request.The wood chipper is designed with 6m feeding conveyor, 12m discharging conveyor and electric cabinet.
Durable blades. Easy operation and maintenance.
Specification
Model | BD-BX215 | BD-BX216 | BD-BX218 | BD-BX2113 |
Inlet size (H*W) (mm) | 170*430 | 240*540 | 310*700 | 400*700 |
Blade number (pcs) | 2 | 2 | 2 | 3 |
Knife roller speed (turn/min) | 590 | 590 | 590 | 420 |
Max.diameter (mm) | 170 | 200 | 300 | 380 |
Woodchips size (mm) | 25-35 | 30-35 | 25-35 | 25-35 |
Capacity (t/h) | 3-5 | 5-8 | 12-15 | 25-30 |
Main motor power (kw) | 37 | 55 | 110 | 220 |
Feed roller motor power (kw) | 3+3 | 3+4 | 3+4 | 7.5+7.5 |
Oil pump motor power (kw) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
Weight (kg) | 3200 | 4300 | 7000 | 11800 |
Dimensions(L*W*H)(mm) | 1540×1240×1420 | 2000×1900×1650 | 2670×2150×1900 | 3670*2517*2050 |
Conveyor motor power(kw) | 3 | 3 | 4 | 7.5 |
Raw materials
Company Profile
Related products

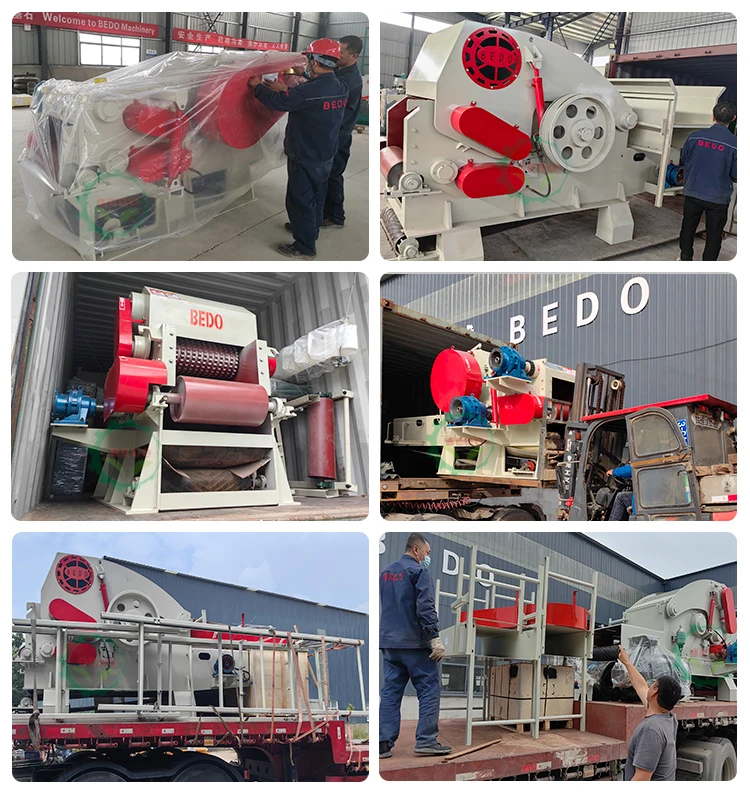

Packing&Shipping
FAQ
Q1. Can the final size of wood chips be adjusted?
A1. Yes. It can be adjusted according to customer's request.
Q2. Is it designed with conveyor?
A2. Yes. This wood chipper is designed with 6m feeding conveyor, 10m discharging conveyor and electric cabinet.
Q3. Can i get some discount if i buy this machine from your company?
A3. Yes. We will give you the most favourable price if buy more than two sets, the big discount will be given.
Q4. What is your payment term?
A4. 50% TT payment in advance, 50% TT payment before shipment.
Q5. How long is your delivery time?
A5. Within 15-20 working days after your down payment.
Q6. Does this machine design with hydraulic system?
A6. The machine designed with hydraulic system which will help you do easier maintain and repair work.
Q7. What is the warranty?
A7. The equipment with one year warranty, not including the wear parts (mainly the knifes).
Q2. Is it designed with conveyor?
A2. Yes. This wood chipper is designed with 6m feeding conveyor, 10m discharging conveyor and electric cabinet.
Q3. Can i get some discount if i buy this machine from your company?
A3. Yes. We will give you the most favourable price if buy more than two sets, the big discount will be given.
Q4. What is your payment term?
A4. 50% TT payment in advance, 50% TT payment before shipment.
Q5. How long is your delivery time?
A5. Within 15-20 working days after your down payment.
Q6. Does this machine design with hydraulic system?
A6. The machine designed with hydraulic system which will help you do easier maintain and repair work.
Q7. What is the warranty?
A7. The equipment with one year warranty, not including the wear parts (mainly the knifes).
Contact Us
Our drum type wood chipper shredder mainly have four types according to inlet size and capacity. The product size is customized as per the requirement of the clients.
We can also customize and design the wood chippers according to the customers' capacity requirement and the local conditions.
We can also customize and design the wood chippers according to the customers' capacity requirement and the local conditions.
Welcome to contact us.
We will be always here at your service.
