Nhà Máy Malaysia Bán Lò Đốt Than Carbonization Lò Carbonizing Cho Mùn Cưa Briquette
5
999
Đã bán
204.885.635đ
66.315.641đ ~ 204.885.635đ
Số lượng
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
66.315.641đ
IRJJXGkWJy
Mô tả sản phẩm
Nơi xuất xứ: Henan, ChinaĐiều kiện: Mới
Video Gọi Đi-Kiểm Tra: Cung CấpMáy Móc Báo Cáo Thử Nghiệm: Cung Cấp
Tiếp Thị Loại: Sản phẩm mớiBảo Hành Của Core Thành Phần: 1 Năm
Core Thành Phần: Động Cơ, Động CơNhãn hiệu: BEDO
Hiệu quả Khối lượng: 12lmKích thước (L * W * H): 2.0m * 2.1m * 2.0m
Điện áp: 380VCông suất (HP): 1.5kW
Bảo hành: 1 năm, Một nămKey Điểm Bán Hàng: Dễ dàng để Hoạt Động
Áp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Nhà Máy sản xuất, Các trang trại, Xây dựng làm việc, Năng lượng & Khai Thác MỏPhòng Trưng Bày Trí: Nigeria, Uzbekistan
Trọng lượng (KG): 2800Sau bán hàng dịch vụ cung cấp: Kỹ sư có sẵn để phục vụ máy móc ở nước ngoài
Sức chứa: 4T/ngàyChứng nhận: CE và ISO
Nhiệt độ trong bếp: 420-480 °CChất lượng: Hạng nhất
Sau khi dịch vụ bảo hành: Hỗ trợ kỹ thuật VideoXử lý nhiệt: 16-18h
Kích thước: 4100*1900*2500m m
Malaysia Factory Sell Horizontal Kiln Charcoal Carbonization Machine Carbonizing Furnace For Sawdust Briquette
Products Description
Horizontal carbonization furnace in the original carbonization furnace on the basis of the increase of flue gas recovery device,flue gas recovery can reach, to smoke-free dust. Horizontal carbonization furnace has the effect of one machine and two uses, the material can be directly carbonized, also can be made after the first rod carbonization. The carbon yield of raw materials is more than 40%-60%, and the yield of finished products is more than 95%. Save time and labor, one person can operate several carbonization furnaces at the same time.Horizontal carbonization furnace carbonization time is short, improve work efficiency. And suitable for a variety of materials carbonization process, the combustible gas can be fully utilized, no pollution to the environment, to achieve energy conservation and environmental protection.
Specifications
Model | Capacity | Interior Size | Heat Treatment Time | Size | Weight |
BD-TH200 | 400kg/day | 800*1500 | 8-10h | 1700*1000*1200mm | 450kg |
BD-TH300 | 600kg/day | 1000*1500 | 10-12h | 1600*1500*1800mm | 850kg |
BD-TH1000 | 2000kg/day | 1800*2800 | 14-16h | 3100*1600*2400mm | 2800kg |
BD-TH2000 | 4000kg/day | 2000*3500 | 16-18h | 4100*1900*2500mm | 4000kg |
BD-TH3000 | 6000kg/day | 2200*4500 | 18-20h | 5600*2400*2800mm | 6300kg |

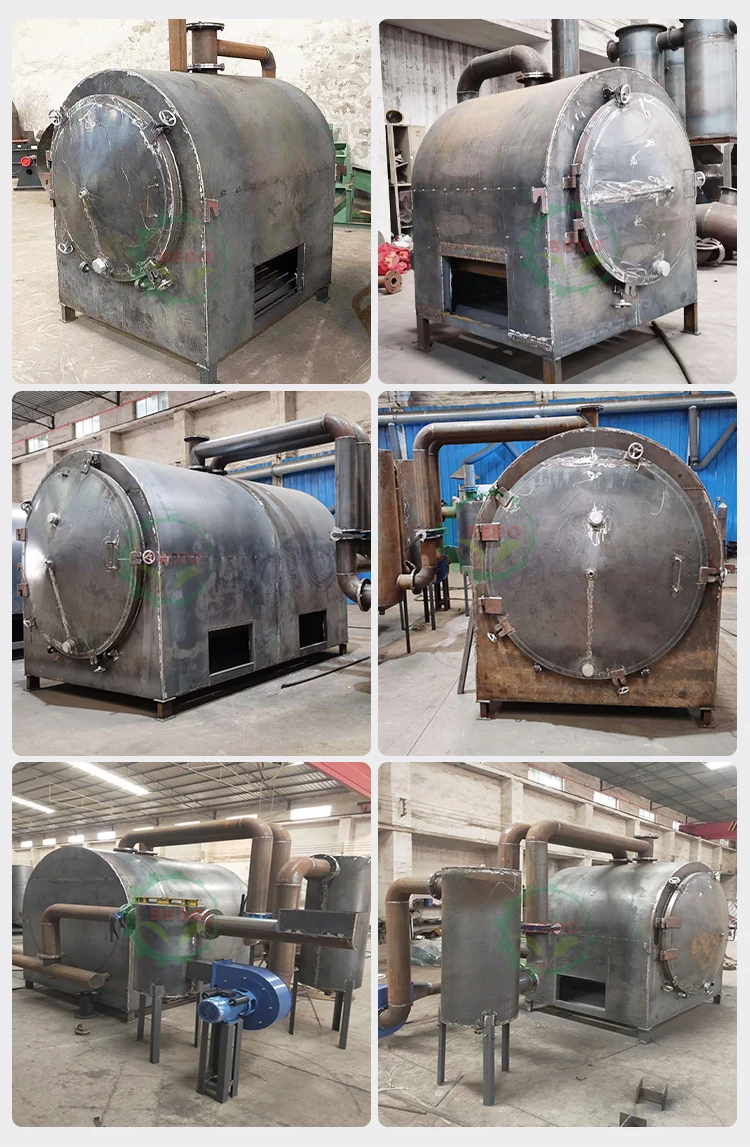

Details Images

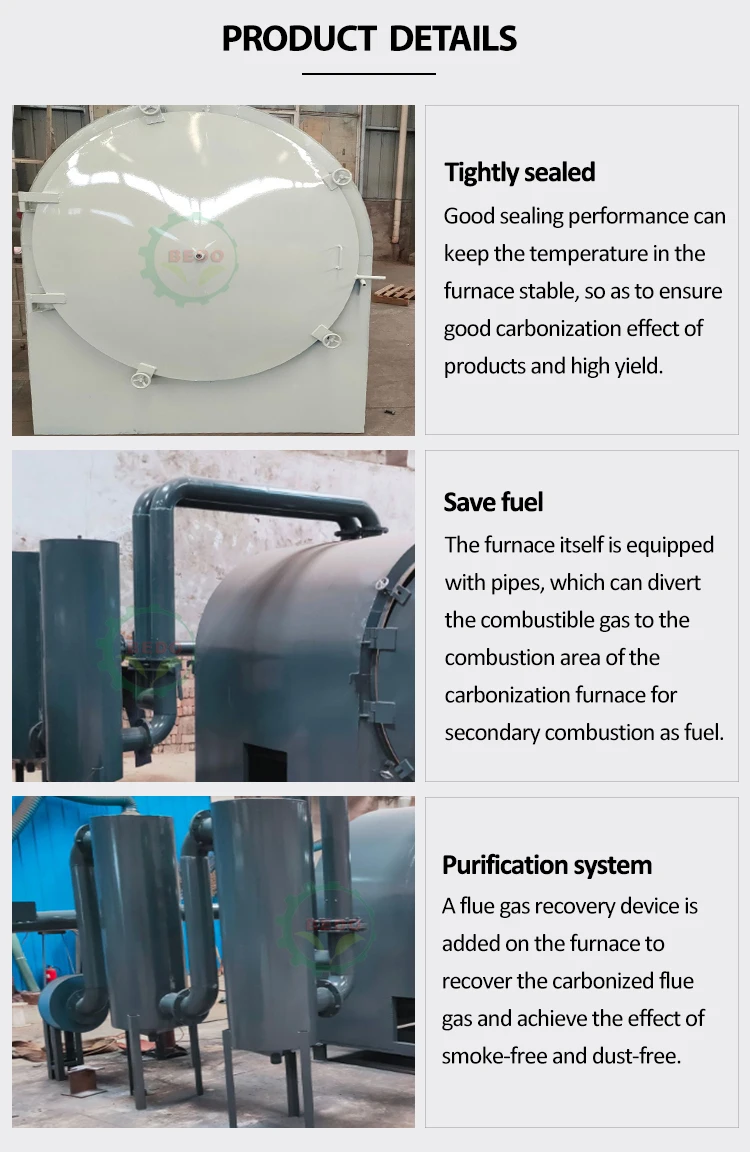

1. The carbonization furnace adopts horizontal manufacturing process. The carbonization furnace has a three-layer structure with light thermal insulation materials in the middle. It is possible to maintain the temperature in the furnace at any time
2.The furnace door is sealed with packing, which will not enter the air, and the carbon discharged is much higher than the traditional carbonization furnace.
3. It is called green carbonization furnace because a large amount of light yellow combustible gas will be produced in the carbonization process. These gases can guide the combustible gas to the combustion area of the carbonization furnace for secondary flame heating through the pipeline provided by the carbonization furnace. More environmentally friendly and fuel-efficient.
4. The surplus gas of carbonization furnace can be used for drying sawdust or combustion boiler.
5. The carbon cooling time at the end of the carbonization furnace is short. We use the gap water between sandwich units for natural cooling of the carbonization furnace, which is more efficient and convenient.
6. The environment-friendly air carbonization furnace is equipped with track and kiln car, which is more convenient to use and reduces the labor intensity of workers.
Advantages of continuous carbonization furnace:
1. Easy to operate and maintain, more safety, energy saving.
2. High carbonization rate, no smoking, little pollution, high efficiency.
3. Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization, 6-8 hours per stove and can work continuously.
4. The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continually warming the stove, and it will save 70% energy consumption and recycle 95% smoke.
1. Easy to operate and maintain, more safety, energy saving.
2. High carbonization rate, no smoking, little pollution, high efficiency.
3. Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization, 6-8 hours per stove and can work continuously.
4. The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continually warming the stove, and it will save 70% energy consumption and recycle 95% smoke.
Working principle of our continuous carbonization furnace:
Put the raw material into the inner stove, hoist it into the outer stove for carbonizing, when one inner stove finished the carbonization, hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the similar process for the third inner stove.
Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.
Put the raw material into the inner stove, hoist it into the outer stove for carbonizing, when one inner stove finished the carbonization, hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the similar process for the third inner stove.
Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.
Workshop
Raw Materials and Final Production
Original charcoal: Chinese fir, tung, poplar,pine, hard wood and other wood are burned by carbonized log charcoal furnace into charcoal.
Bamboo charcoal: Bamboo charcoal has loose porous structure, its molecular density porous, quality, hard. Have strong adsorption capacity, can purify air, eliminate peculiar smell, hygroscopic mildew, bacteriostatic insect repellent.
Mechanism charcoal: the use of abandoned branches, coconut shell, sawdust, rice husk, peanut shell, mechanism charcoal through high temperature and high pressure extrusion molding, carbonization into the furnace.
Olive carbon: olive carbon is common wood carbon combustion time companion, olive carbon after carbonization, smokeless combustion, durable burning resistance.
Mechanism charcoal: the use of abandoned branches, coconut shell, sawdust, rice husk, peanut shell, mechanism charcoal through high temperature and high pressure extrusion molding, carbonization into the furnace.
Olive carbon: olive carbon is common wood carbon combustion time companion, olive carbon after carbonization, smokeless combustion, durable burning resistance.
Packing&Shipping
Packaging
For one set charring kiln, it is packed by waterproof cloth, then packed in the container.
For more than two sets charring kiln, it is nude packing, packed in the full container.
Payment term
1. Payment: T/T, Western Union 50% TT payment in advance, 50% TT pay the balance before delivery.
2. Warranty: 12 months for the main machine, 4-6 months for the parts.
3. Delivery time: Within 7-10 days for single machine after getting the down payment 25-35 days for the whole production line after getting the down payment.
For one set charring kiln, it is packed by waterproof cloth, then packed in the container.
For more than two sets charring kiln, it is nude packing, packed in the full container.
Payment term
1. Payment: T/T, Western Union 50% TT payment in advance, 50% TT pay the balance before delivery.
2. Warranty: 12 months for the main machine, 4-6 months for the parts.
3. Delivery time: Within 7-10 days for single machine after getting the down payment 25-35 days for the whole production line after getting the down payment.
