Nhà Máy Trực Tiếp Bán Chống Leo Trèo, Chống Cắt 358 Hàng Rào An Ninh Cao Trung Quốc Anping

5
999
Đã bán
494.379đ
228.309đ ~ 494.379đ
Nơi xuất xứ: Hebei, ChinaNhãn hiệu: QUNKUN

Số Mô Hình: QK-358F-027Chất liệu khung: Kim loại

Kim loại Loại: SắtÁp lực xử lý Gỗ Loại: Xử lý nhiệt

Khung hình kết thúc: PVC trángTính năng: Dễ dàng lắp ráp, sinh thái thân thiện, FSC, Áp lực xử lý Timbers, Nguồn năng lượng tái tạo, Động vật gặm nhấm Proof, Bằng chứng thối, Kính cường lực, TFT, Không thấm nước

Cách sử dụng: Vườn Fence, Thể Thao Hàng Rào, Trang trại làm hàng ràoLoại: Đấu kiếm, Trellis & Gates

Service: 3D Mô Hình, Video Của Lắp ĐặtProduct name: 358 security fence prison mesh

Material: PVC coated metal ironMesh panel width: 2.0m,2.2m,2.5m,3m

Color: Any PAL series colorMesh panel material: low carbon steel wire,galvanized wire

Post material: hot dipped galvanized roll steel plateApplication: fencing for sports fiel ,driver construction animal

Product: we have our own factory.Delivery time: No more than 3 weeks for one full container

Surface treatment: Galvanized+PVC CoatedMùa Giải: Tất Cả Các Mùa

Không Gian Phòng Lựa Chọn: Không Hỗ TrợNhân Dịp Tuyển Chọn: Không Hỗ Trợ

Ngày Lễ Lựa Chọn: Không Hỗ Trợ






  Product Description

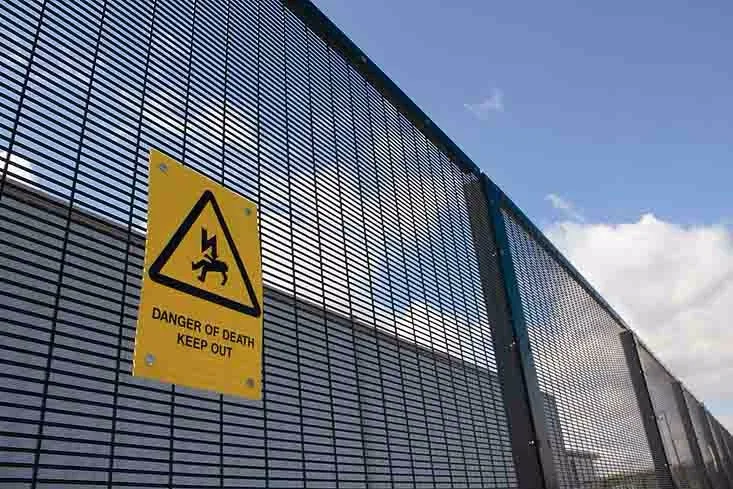

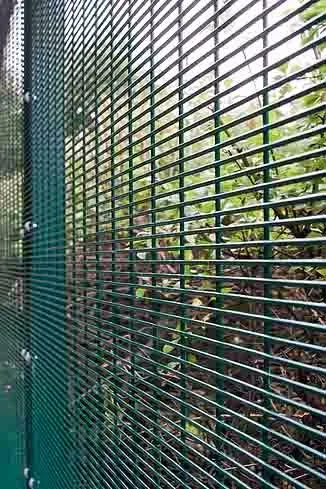

High security fencing , Prison Mesh Fencing or 358 Mesh Fencing as it is also known, is a highly robust steel Mesh Fencing system. It consists of horizontal and vertical mesh wires which are positioned close together to prevent people from fitting their fingers through the apertures, to ultimately climb the fencing.

  Specifications
Panel Description

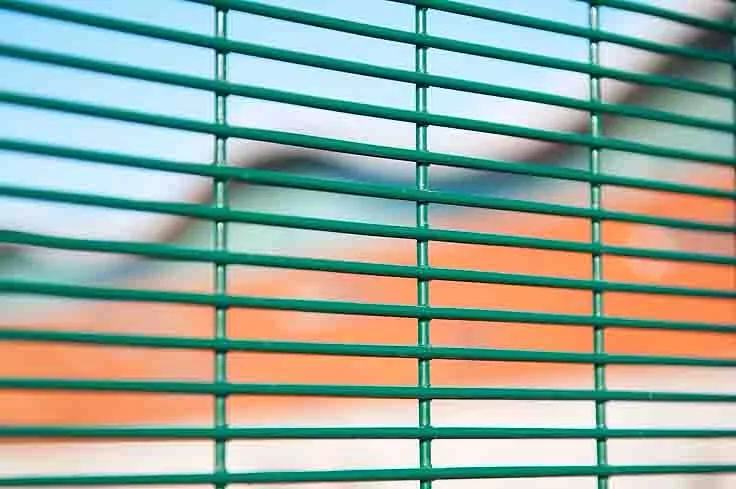

Mesh size
3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection
Wire diameter
8 gauge(4mm) horizontal wire and vertical wire
Welded strength
Range 540-690N/m2

Surface treatment
hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span
Installation
Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts
Post Description
Material
high grade steel for maximum strength and rigidity
Post section
60×60mm,80×60mm, 80×80mm or 120×60mm
Post plate thickness
2.5mm or 3.0mm
Finish
inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron )
Colors
Green RAL 6005, or Black RAL 9005
Post cap
80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap
Metal clips and clamps are hot dip galvanized then powder coating in green or black color.

Panel Size (Height*Width)
Fence Post (Height*Size*Thickness)
Clamp Bar (Height*Width*Thickness)
Inter or corner clamp NO(PCS)
2007mm*2515mm
2700mm*60*60*2.5mm
2007mm*60mm*5.00mm
7 or 14
2400mm*2515mm
3100mm*60*60*2.5mm
2400mm*60mm*5.00mm
9 or 18
2997mm*2515mm
3800mm*80*80*2.5mm
2997mm*80mm*6.00mm
11 or 22
3302mm*2515mm
4200mm*80*80*2.5mm
3302mm*80mm*6.00mm
12 or 24
3607mm*2515mm
4500mm*100*60*3.0mm
3607mm*100mm*7.00mm
13 or 26
3607mm*2515mm
4500mm*100*100*3.0mm
3607mm*100mm*7.00mm
13 or 26
4204mm*2515mm
5200mm*100*100*4.0mm
4204mm*100mm*8.00mm
15 or 30
4496mm*2515mm
5500mm*100*100*5.0mm
4496mm*100mm*8.00mm
16 or 32
5207mm*2515mm
6200mm*120*120*5.0mm
5207mm*100mm*8.00mm
18 or 36
  Our Services

Customer Service

Fast and Accurate Quotes
Best Value, Quality Products
10 Year Warranty on most Products

Custom Design

As every project is different, we can manufacture to your specifications to ensure your unique design ideas

Quality Inspection

We have our own quality control department to provide special quality testing for our customers.

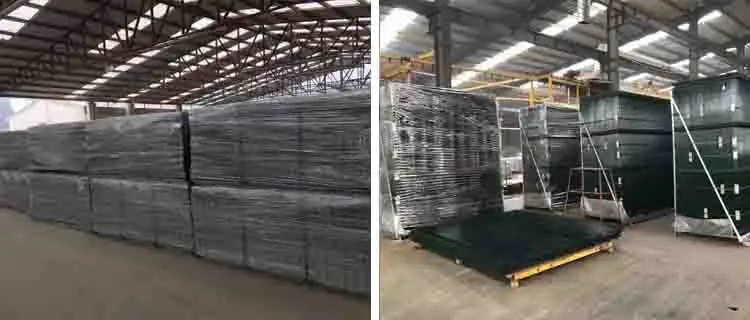

  Packaging & Delivery
  Our Products




  Our Certification
  Recommed Products
  FAQ

Q: Are you a manufacturer?

A: Yes,we have specialized in this field for about 10 years experience.

Q: Could you provide sample ?

A: Yes,we can provide sample in half A4 size together with our catalogue.

But the courier charge will on your side.

We'll send back the courier charge if you make an order.

Q: What information should I provide,if I want a lowest quotation?

A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.

Q: How is your delivery time?

A: We always prepae enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.

We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Q: How do you ship the finished wire mesh?

Usually by sea.

Q: What is the payment?

We usually use the T/T,L/C,D/P,Western Union.

Số lượng
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
Giá đã có thuế VAT
vXFIIYPkJI
Mô tả sản phẩm
Nơi xuất xứ: Hebei, ChinaNhãn hiệu: QUNKUN

Số Mô Hình: QK-358F-027Chất liệu khung: Kim loại

Kim loại Loại: SắtÁp lực xử lý Gỗ Loại: Xử lý nhiệt

Khung hình kết thúc: PVC trángTính năng: Dễ dàng lắp ráp, sinh thái thân thiện, FSC, Áp lực xử lý Timbers, Nguồn năng lượng tái tạo, Động vật gặm nhấm Proof, Bằng chứng thối, Kính cường lực, TFT, Không thấm nước

Cách sử dụng: Vườn Fence, Thể Thao Hàng Rào, Trang trại làm hàng ràoLoại: Đấu kiếm, Trellis & Gates

Service: 3D Mô Hình, Video Của Lắp ĐặtProduct name: 358 security fence prison mesh

Material: PVC coated metal ironMesh panel width: 2.0m,2.2m,2.5m,3m

Color: Any PAL series colorMesh panel material: low carbon steel wire,galvanized wire

Post material: hot dipped galvanized roll steel plateApplication: fencing for sports fiel ,driver construction animal

Product: we have our own factory.Delivery time: No more than 3 weeks for one full container

Surface treatment: Galvanized+PVC CoatedMùa Giải: Tất Cả Các Mùa

Không Gian Phòng Lựa Chọn: Không Hỗ TrợNhân Dịp Tuyển Chọn: Không Hỗ Trợ

Ngày Lễ Lựa Chọn: Không Hỗ Trợ






  Product Description

High security fencing , Prison Mesh Fencing or 358 Mesh Fencing as it is also known, is a highly robust steel Mesh Fencing system. It consists of horizontal and vertical mesh wires which are positioned close together to prevent people from fitting their fingers through the apertures, to ultimately climb the fencing.

  Specifications
Panel Description
Mesh size
3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection
Wire diameter
8 gauge(4mm) horizontal wire and vertical wire
Welded strength
Range 540-690N/m2

Surface treatment
hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span
Installation
Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts
Post Description
Material
high grade steel for maximum strength and rigidity
Post section
60×60mm,80×60mm, 80×80mm or 120×60mm
Post plate thickness
2.5mm or 3.0mm
Finish
inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron )
Colors
Green RAL 6005, or Black RAL 9005
Post cap
80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap
Metal clips and clamps are hot dip galvanized then powder coating in green or black color.

Panel Size (Height*Width)
Fence Post (Height*Size*Thickness)
Clamp Bar (Height*Width*Thickness)
Inter or corner clamp NO(PCS)
2007mm*2515mm
2700mm*60*60*2.5mm
2007mm*60mm*5.00mm
7 or 14
2400mm*2515mm
3100mm*60*60*2.5mm
2400mm*60mm*5.00mm
9 or 18
2997mm*2515mm
3800mm*80*80*2.5mm
2997mm*80mm*6.00mm
11 or 22
3302mm*2515mm
4200mm*80*80*2.5mm
3302mm*80mm*6.00mm
12 or 24
3607mm*2515mm
4500mm*100*60*3.0mm
3607mm*100mm*7.00mm
13 or 26
3607mm*2515mm
4500mm*100*100*3.0mm
3607mm*100mm*7.00mm
13 or 26
4204mm*2515mm
5200mm*100*100*4.0mm
4204mm*100mm*8.00mm
15 or 30
4496mm*2515mm
5500mm*100*100*5.0mm
4496mm*100mm*8.00mm
16 or 32
5207mm*2515mm
6200mm*120*120*5.0mm
5207mm*100mm*8.00mm
18 or 36
  Our Services

Customer Service

Fast and Accurate Quotes
Best Value, Quality Products
10 Year Warranty on most Products

Custom Design

As every project is different, we can manufacture to your specifications to ensure your unique design ideas

Quality Inspection

We have our own quality control department to provide special quality testing for our customers.

  Packaging & Delivery
  Our Products




  Our Certification
  Recommed Products
  FAQ

Q: Are you a manufacturer?

A: Yes,we have specialized in this field for about 10 years experience.

Q: Could you provide sample ?

A: Yes,we can provide sample in half A4 size together with our catalogue.

But the courier charge will on your side.

We'll send back the courier charge if you make an order.

Q: What information should I provide,if I want a lowest quotation?

A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.

Q: How is your delivery time?

A: We always prepae enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.

We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Q: How do you ship the finished wire mesh?

Usually by sea.

Q: What is the payment?

We usually use the T/T,L/C,D/P,Western Union.
