Oxy-nhiên liệu máy cắt cho 30mm 300A/400A oxy-nhiên liệu máy cắt cho 30mm gantry loại nhiệm vụ nặng nề CNC Plasma
Oxy-nhiên liệu máy cắt cho 30mm 300A/400A oxy-nhiên liệu máy cắt cho 30mm gantry loại nhiệm vụ nặng nề CNC Plasma
Oxy-nhiên liệu máy cắt cho 30mm 300A/400A oxy-nhiên liệu máy cắt cho 30mm gantry loại nhiệm vụ nặng nề CNC Plasma
5
999
Đã bán
177.572.500đ
164.888.750đ ~ 177.572.500đ
Yêu thích
Oxy-nhiên liệu máy cắt cho 30mm 300A/400A oxy-nhiên liệu máy cắt cho 30mm gantry loại nhiệm vụ nặng nề CNC Plasma
5
999
Đã bán
177.572.500đ
164.888.750đ ~ 177.572.500đ
Kích thước: 3000*8000m mLoại động cơ: Servo Motor
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: JIAXINSố Mô Hình: JX-3080
Điện áp: 220VCông suất: 2kw
Kích thước (L * W * H): 3.3*10*1.5mTrọng lượng (KG): 1100 KG
Năm: 2020Bảo hành: 2 Năm
Key Điểm Bán Hàng: Giá cả cạnh tranhÁp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Xây dựng làm việc, Công Ty quảng cáo
Phòng Trưng Bày Trí: Không cóTiếp Thị Loại: Sản Phẩm Mới 2020
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 2 NămCore Thành Phần: Động Cơ, Hộp Số, PLC
Tên sản phẩm: CNC Plasma và oxy-nhiên liệu máy cắt cho 30 métĐộ dày cắt: Theo nguồn năng lượng Plasma
Tốc độ cắt: 0-12000mm/phútKhu vực làm việc: 2200*8000m m
Hệ thống điều khiển: Shanghai fangling f2300aChế độ ổ đĩa: Ổ đĩa song phương
Động cơ truyền động: Động cơ servo Panasonic 400W với điều khiểnTHC: Fangling f1621
Phần mềm lồng nhau: Phần mềm Starcam
Product Description

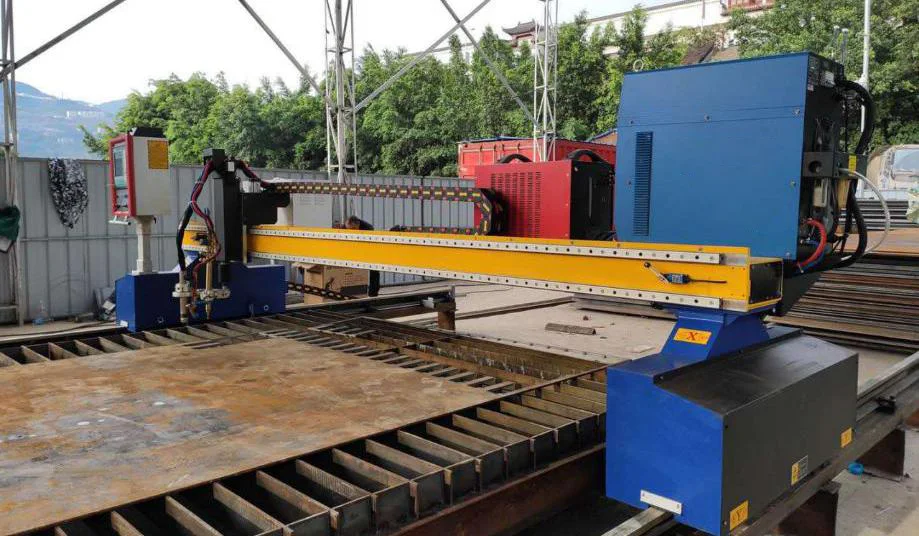

Gantry Type Heavy Duty CNC Plasma And Oxy-fuel Cutting Machine For 30mm
Detailed Images

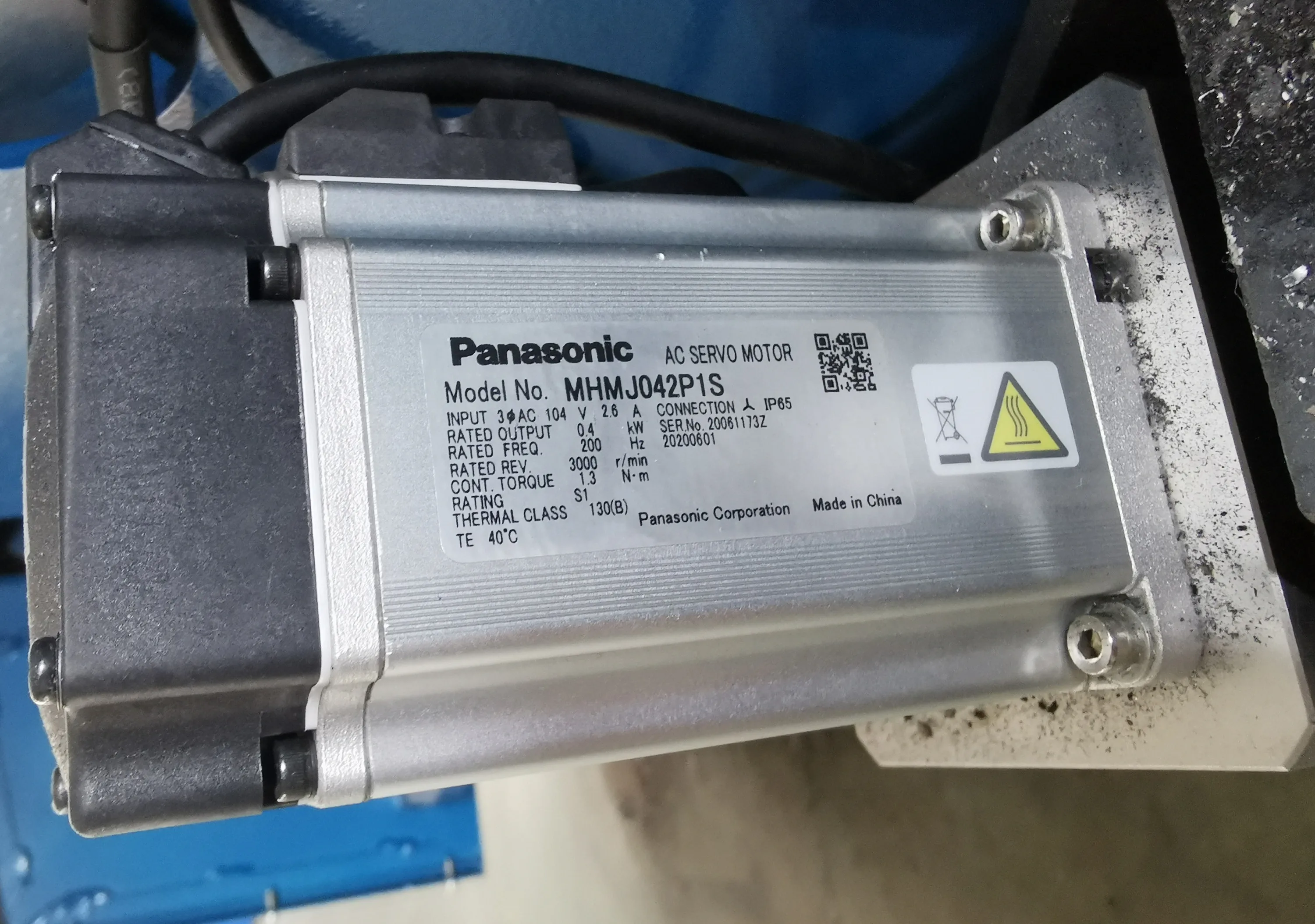

400W Servo motor of Panasonic Brand
24KG High precision fine grinding guide rail

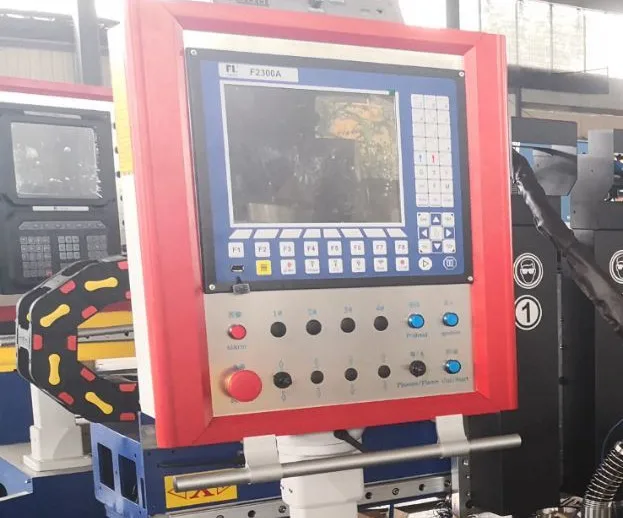

Shanghai Fangling F2300A Control System
512M RAM, At least 80GB Hard Disk
Air-Conditioner for CNC& Electrical Components
USB & RJ45 Interfaces for loading in cutting files.
EMI for Servo Driver System.
CNC functions
Air-Conditioner for CNC& Electrical Components
USB & RJ45 Interfaces for loading in cutting files.
EMI for Servo Driver System.
CNC functions
StarCam Nesting software
StarCAM pro nesting software, professional software used on plasma/flame cutters.
It supports CAD, DXF, DWG, IGES format files.
Fangling F1621 THC
A. Auto Initial Height Sensing(IHS)：
B. Torch Anti-Collision Function:
C. Freeze Auto Height Control on Corner Signal
D. Lifting torch Up on IHS Disabled status.
E. Lifting Torch Up on TURN ON or Arc Off:
1. Set Pierce Delay Time.
G.Manual Operation

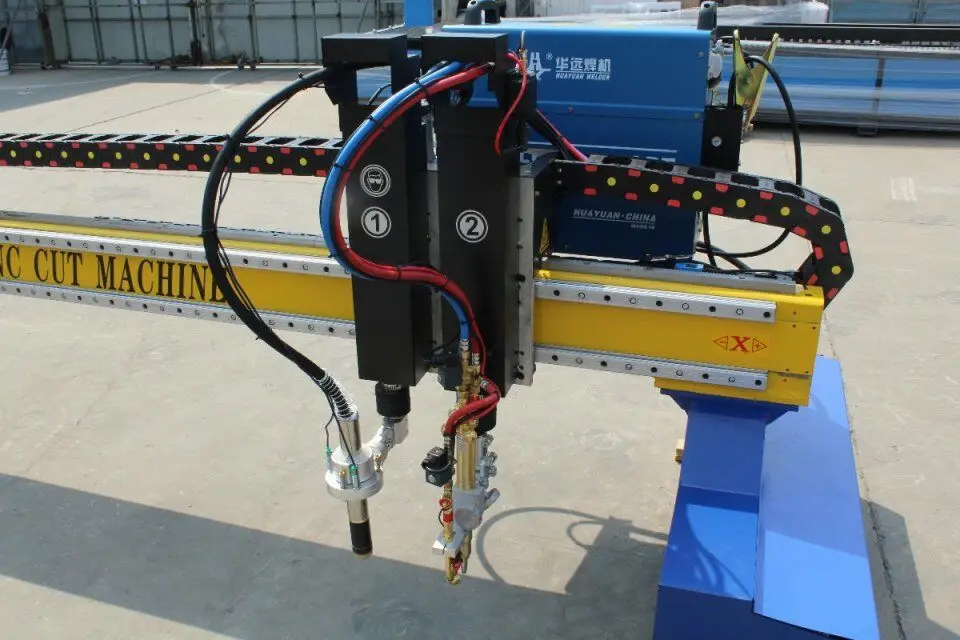

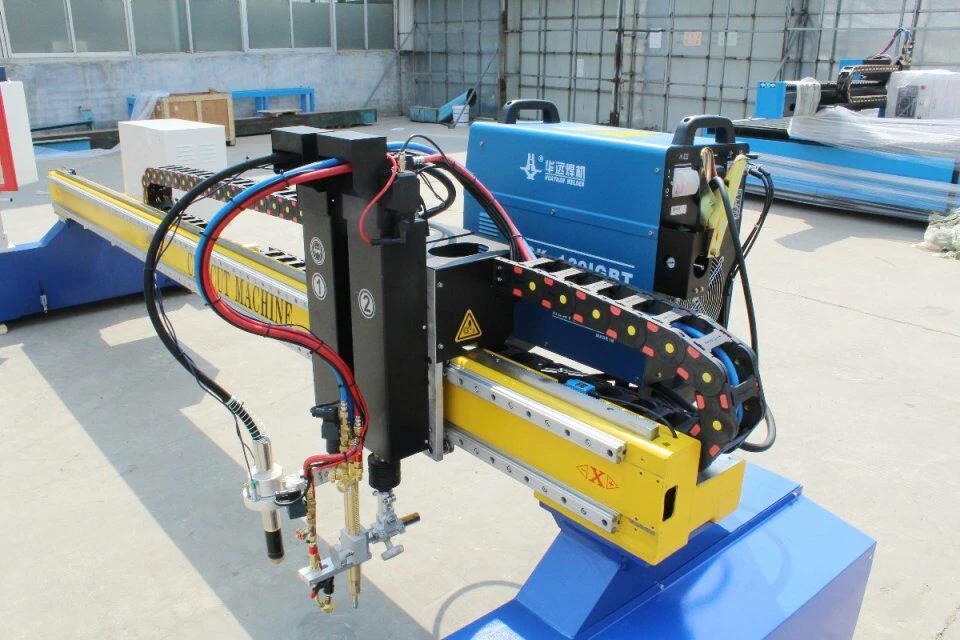

Flame & Plasma cutting torch
Hypertherm, Thermadyne or other brands
With anti-collision holder, during the cutting, when the torch touched the steel, torch will automatically pause, after the obstacle away, the torch will continue move, it protect the torch from damage.

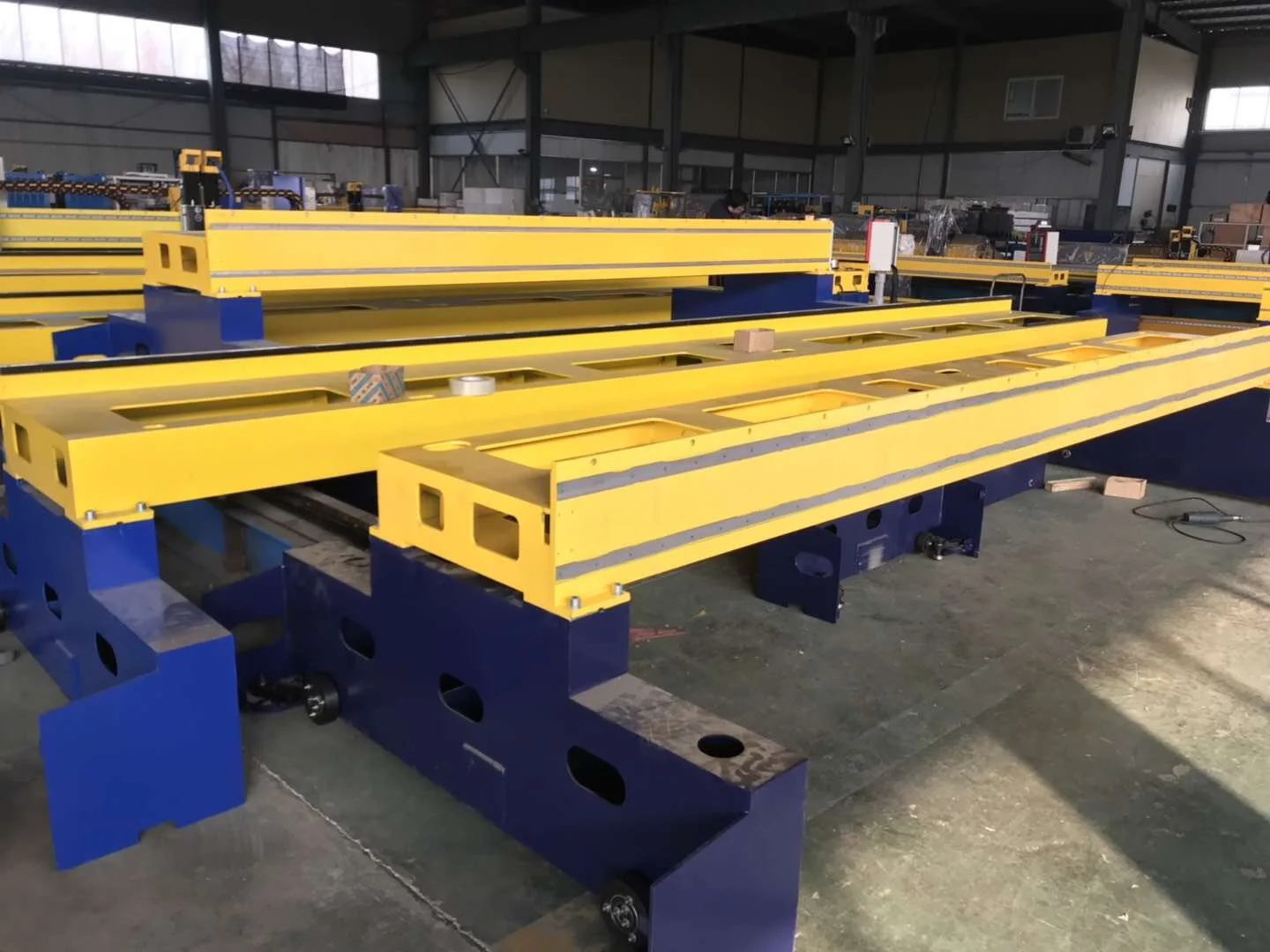

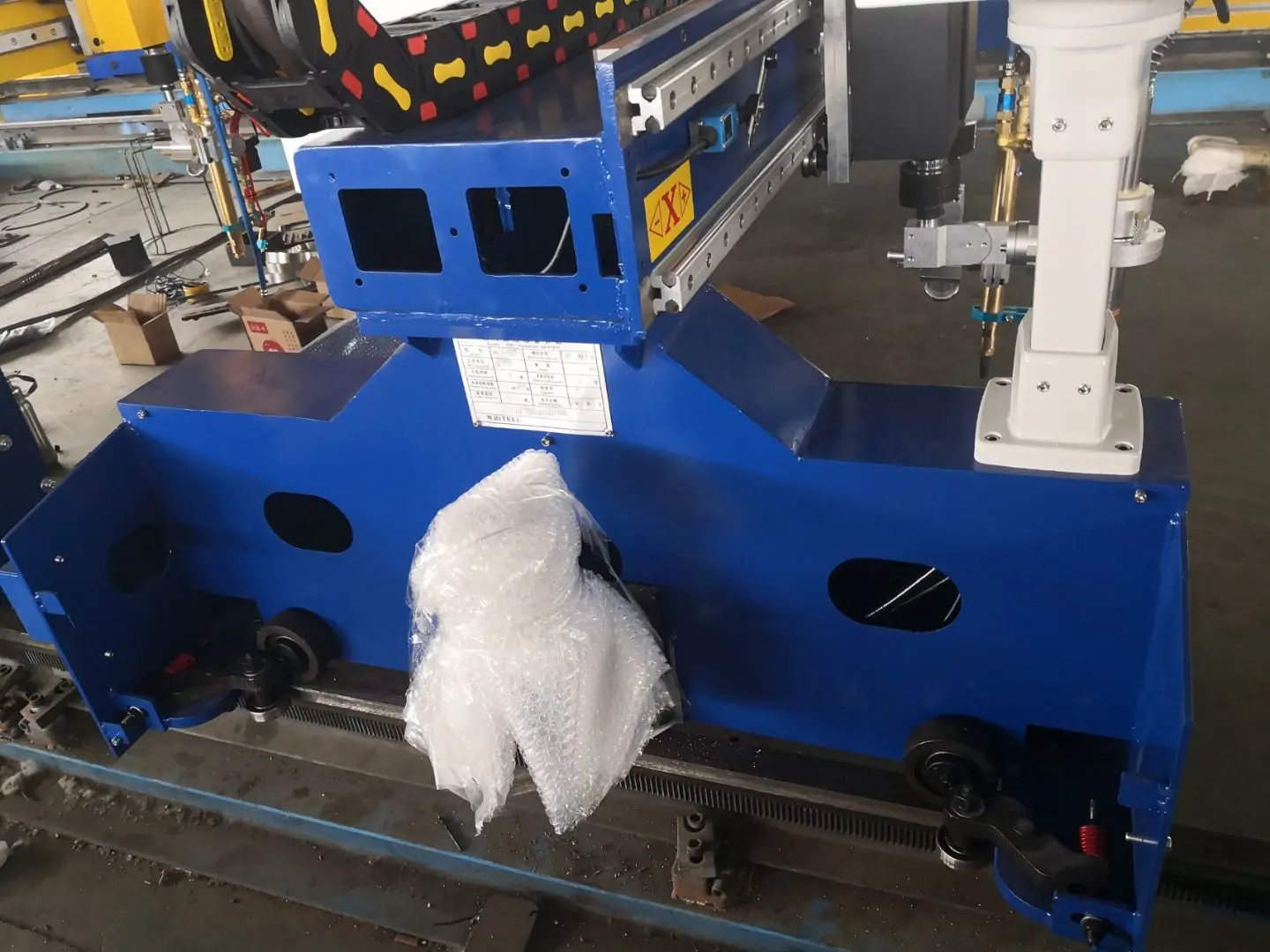

Machine Frame
It's gantry type structure, which is made by the
main beam, secondary beam and lengthwise supports. The beams and supports are made of square steel. It's processed in machining center after welding and heat working, which ensures the beams and supports are of hardness and stiffness. We can install several lifting stations to the main beam so as to achieve several torches working together.
main beam, secondary beam and lengthwise supports. The beams and supports are made of square steel. It's processed in machining center after welding and heat working, which ensures the beams and supports are of hardness and stiffness. We can install several lifting stations to the main beam so as to achieve several torches working together.

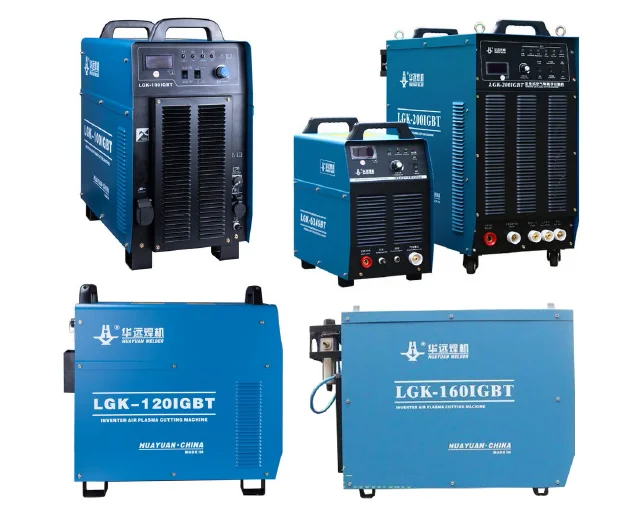

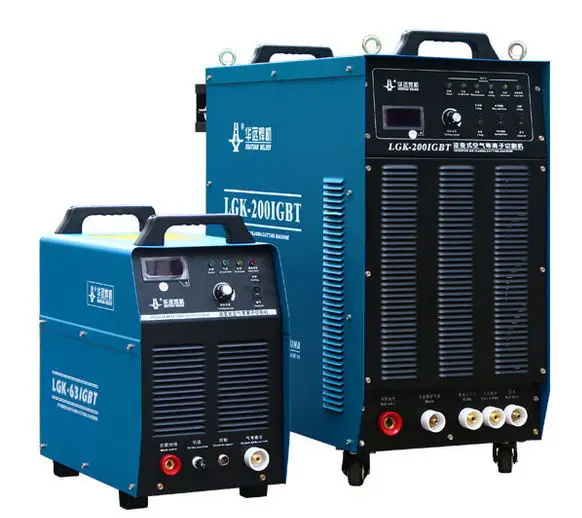

China Huayuan Plasma Power Source
63, 100A, 120A, 160A, 200A, 300A, 400A for optional
Size Information
Gantry Type Heavy Duty CNC Plasma And Oxy-fuel Cutting Machine For 30mm
Model | JX-3080 | |
Effective Cutting area | 2200*8000mm | |
Machine Dimension | 4*10*1.5m | |
Configuration | ||
Cutting model | Plasma Cutting and Flame Cutting | |
No-load speed | 12000mm/min without shake | |
Cutting thickness | According to plasma power source | |
Drive mode | Bilateral drive | |
Drive motor | 400W Panasonic Servo Motors With Driver | |
Torch Height Control | ||
Arc THC | Shanghai Fangling automatic arc voltage THC F1621 | |
Rail | 14pcs of Y axis rails, 1pc of X axis rail, Linear, Dia 30mm | |
Control System | Shanghai Fangling F2300A | |
Lift Range | 150mm | |
Working Speed | 0-8000mm/min | |
Software & System | ||
Nesting software | StarCAM software | |
Cutting platform | INCLUDE | |
China Huayuan Plasma Power Source for CNC Plasma Cutting Machine
Item | Model | ||||||||||||
LGK-63IGBT | LGK-100IGBT | LGK-120IGBT | LGK-160IGBT | LGK-200IGBT | LGK-300IGBT | LGK-400IGBT | |||||||
Input source | 3 phase 380V 50Hz | ||||||||||||
Rated input capacity (KVA) | 9.5 | 17.8 | 22.4 | 32.2 | 46.7 | 65.8 | 94.1 | ||||||
Rated input current (A) | 14.5 | 27 | 34 | 49 | 71 | 100 | 143 | ||||||
Rated output current (A) | 63 | 100 | 120 | 160 | 200 | 300 | 400 | ||||||
Rated output voltage (v) | 106 | 120 | 128 | 144 | 160 | 200 | 200 | ||||||
Rated unloading voltage (v) | 300 | 300 | 300 | 315 | 315 | 380 | 380 | ||||||
Rated loading cycle | 60%(40℃) | 100%(40℃) | |||||||||||
Range of output current (A | 30-63 | 30-100 | 30-120 | 30-160 | 30-200 | 30-300 | 30-400 | ||||||
Ratio of arc pressure output signal | 1:1/1:20/1:50/1:100 | 1:1/1:20 | |||||||||||
Qualified cutting capacity (carbon steel) (mm) | 0.3-12 | 0.3-22 | 0.3-25 | 0.3-35 | 0.3-45 | 0.3-50 | 0.3-60 | ||||||
Cutting capacity (carbon steel) | 25mm | 40mm | 45mm | 55mm | 65nmm | 80mm | 90mm | ||||||
Plasma air | Air compressor | ||||||||||||
Air pressure | 0.3-0.5Mpa | 0.4-0.6Mpa | 0.45-0.6Mpa | ||||||||||
Cooling method of torch | Air Cooling | Water Cooling | |||||||||||
Cooling method of source | Air cooling | ||||||||||||
Insulation grade | Grade F | ||||||||||||
Shell protect grade | IP21S | ||||||||||||
Dimension (mm) | 585*280*485 | 675*320*605 | 800*380*650 | 800*380*810 | 890*430*900 | 930*430*900 | |||||||
Net weight (kg) | 26 | 45 | 46 | 65 | 82 | 124 | 144 | ||||||

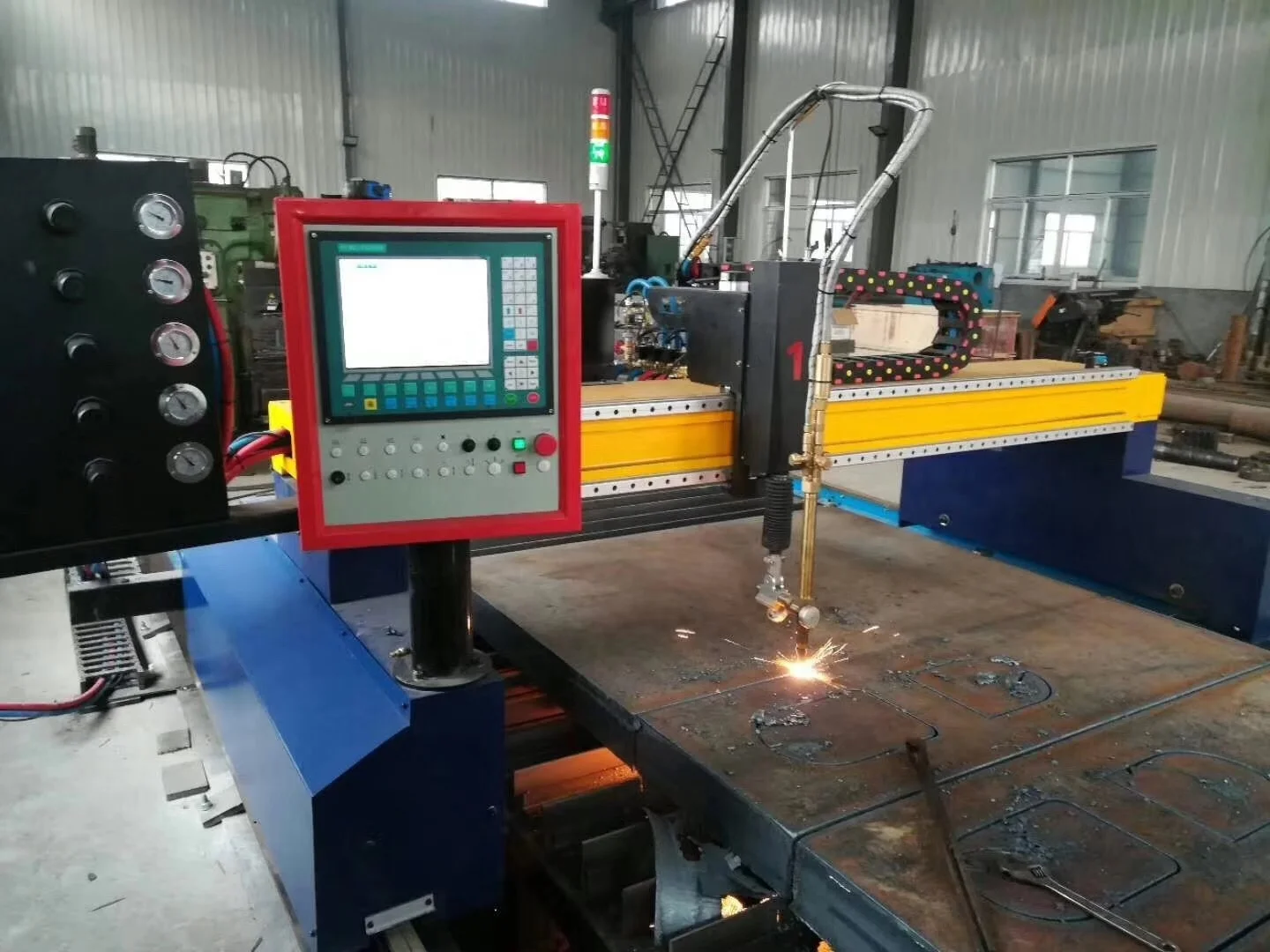

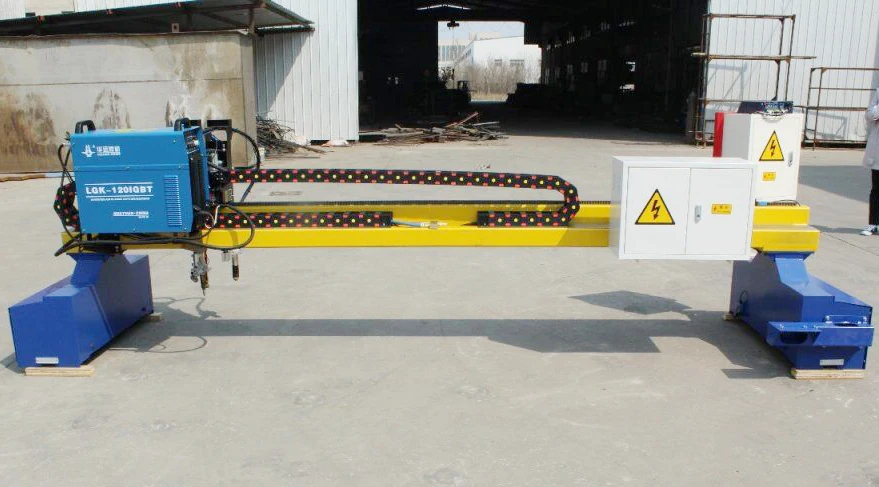

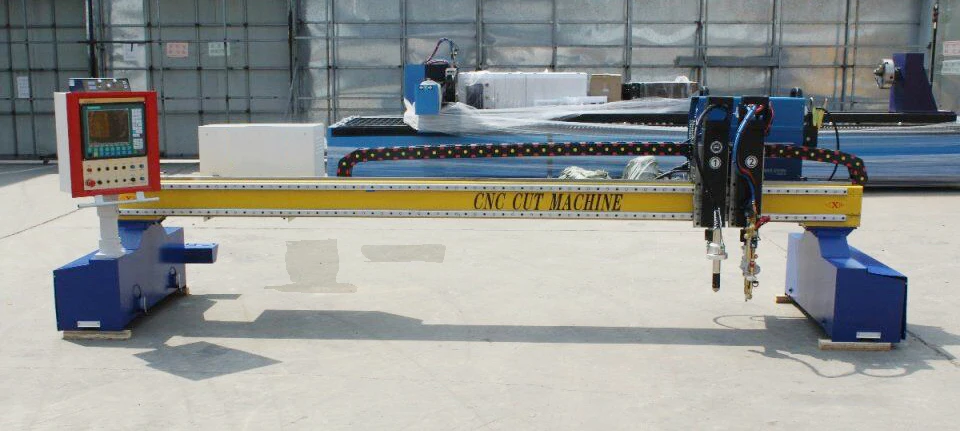

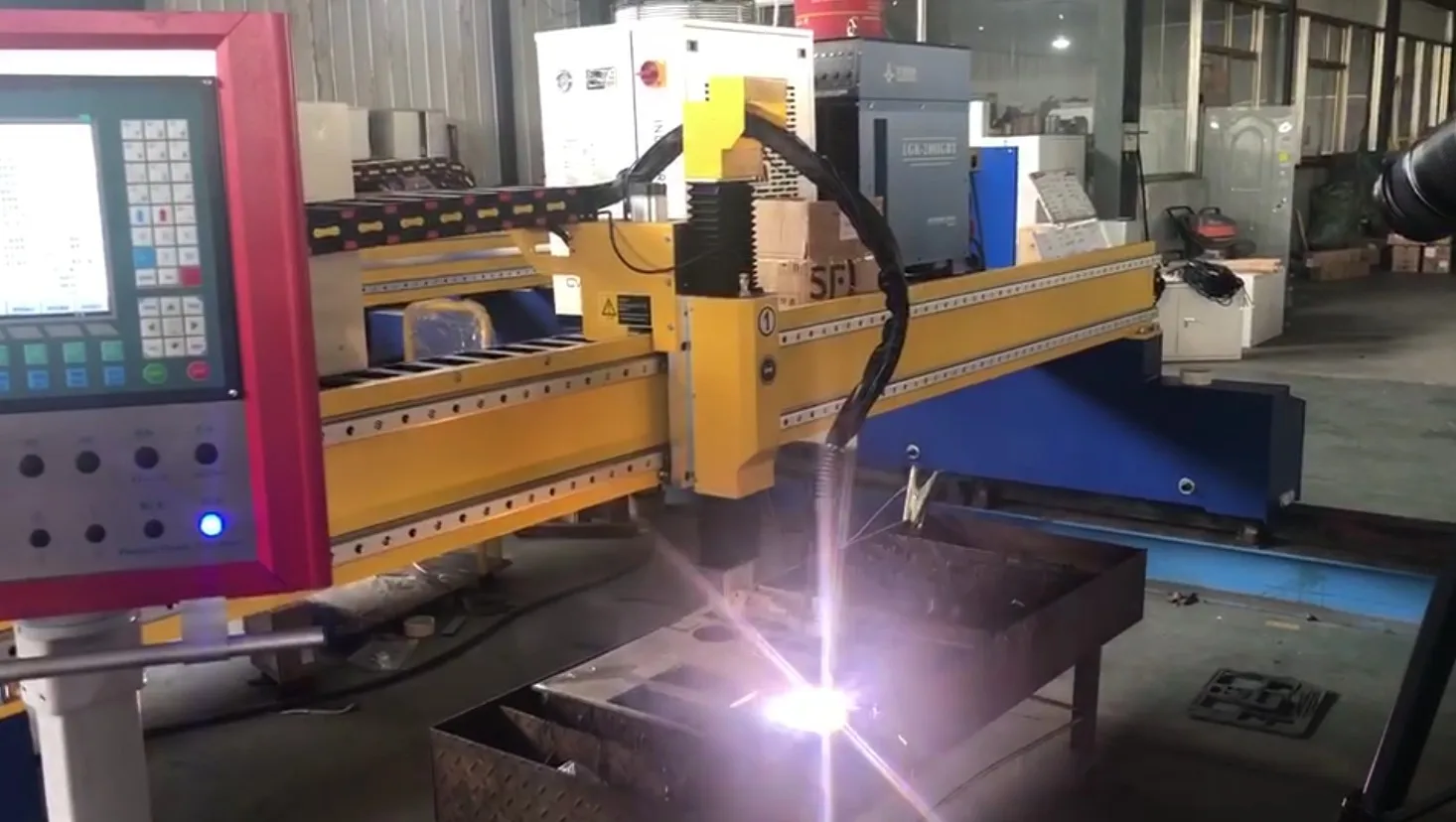

Working pictures
Gantry Type Heavy Duty CNC Plasma And Oxy-fuel Cutting Machine For 30mm
1. This gantry cnc plasma cutting machine can cut any flat shape parts composed of straight lines and arcs.2.The graphic is static and dynamic, easy to learn, can be programmed directly on the machine, or can be drawn on a computer or attached by using a ready-made CAD file. The gifted software is directly converted into a G code program file, and is automatically cut by copying it to the operating system through a USB flash drive.
3. Advantage: double-sided drive structure, exquisite system structure, high degree of automation, simple operation, convenient maintenance, easy cutting from sheet metal to large thickness steel plate.
4. Application: this gantry cnc plasma cutter can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal sheets.

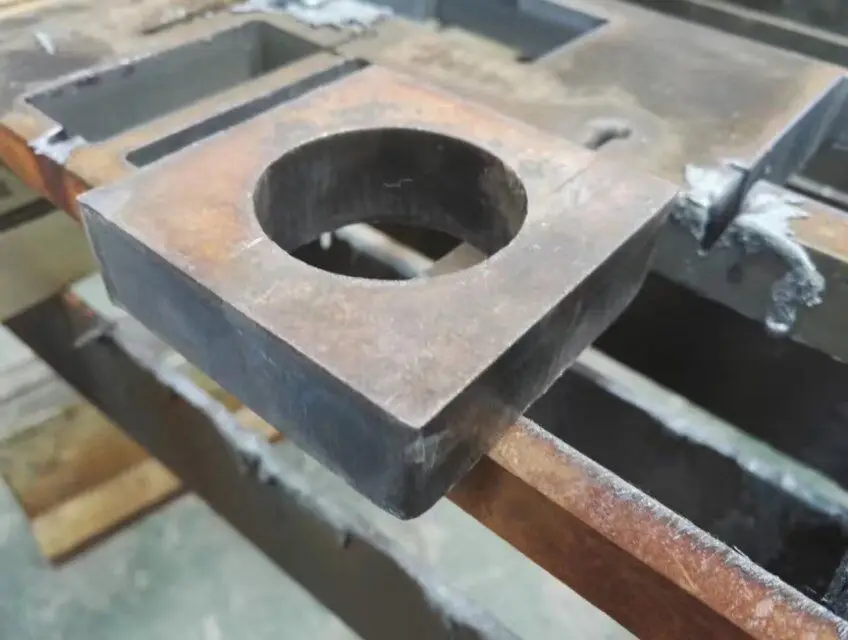

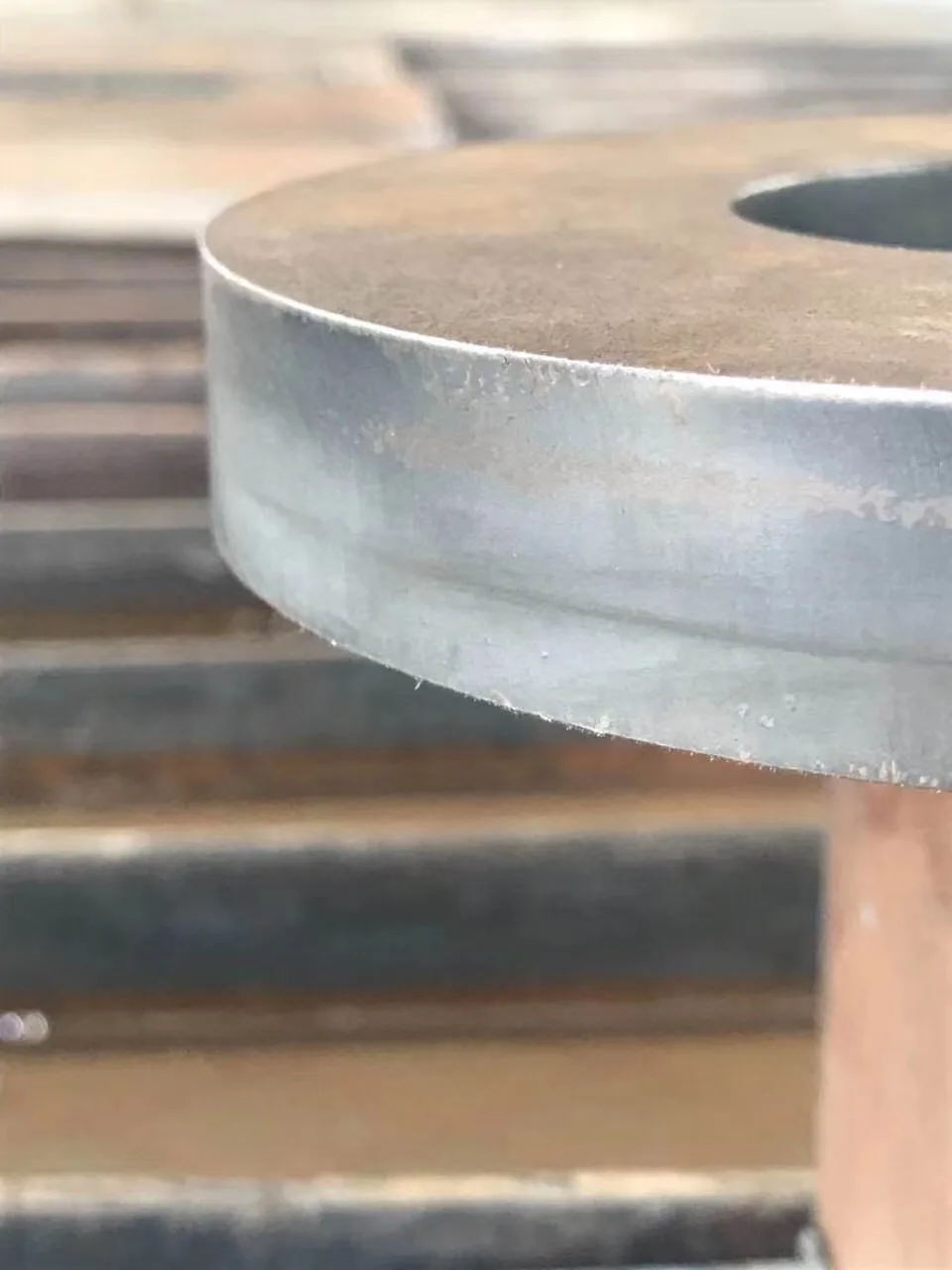

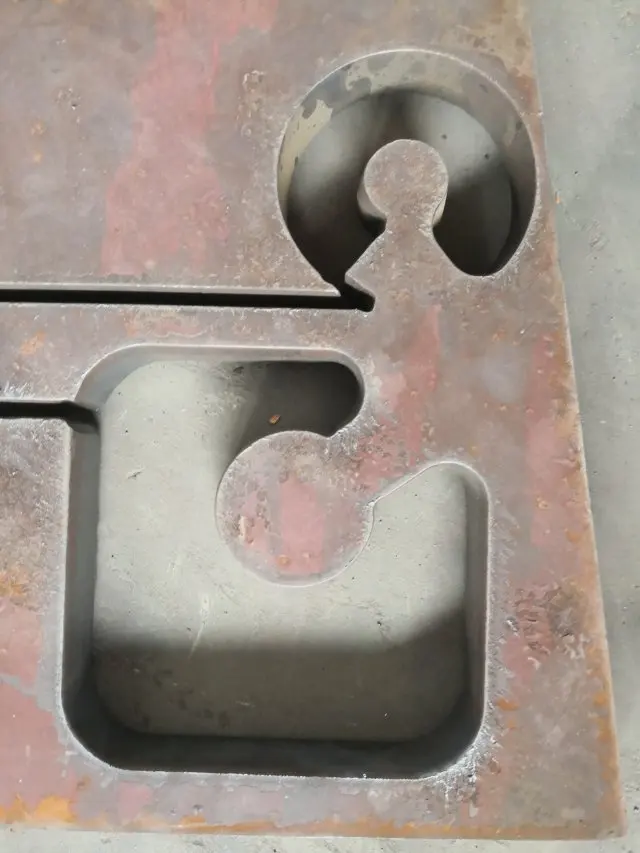

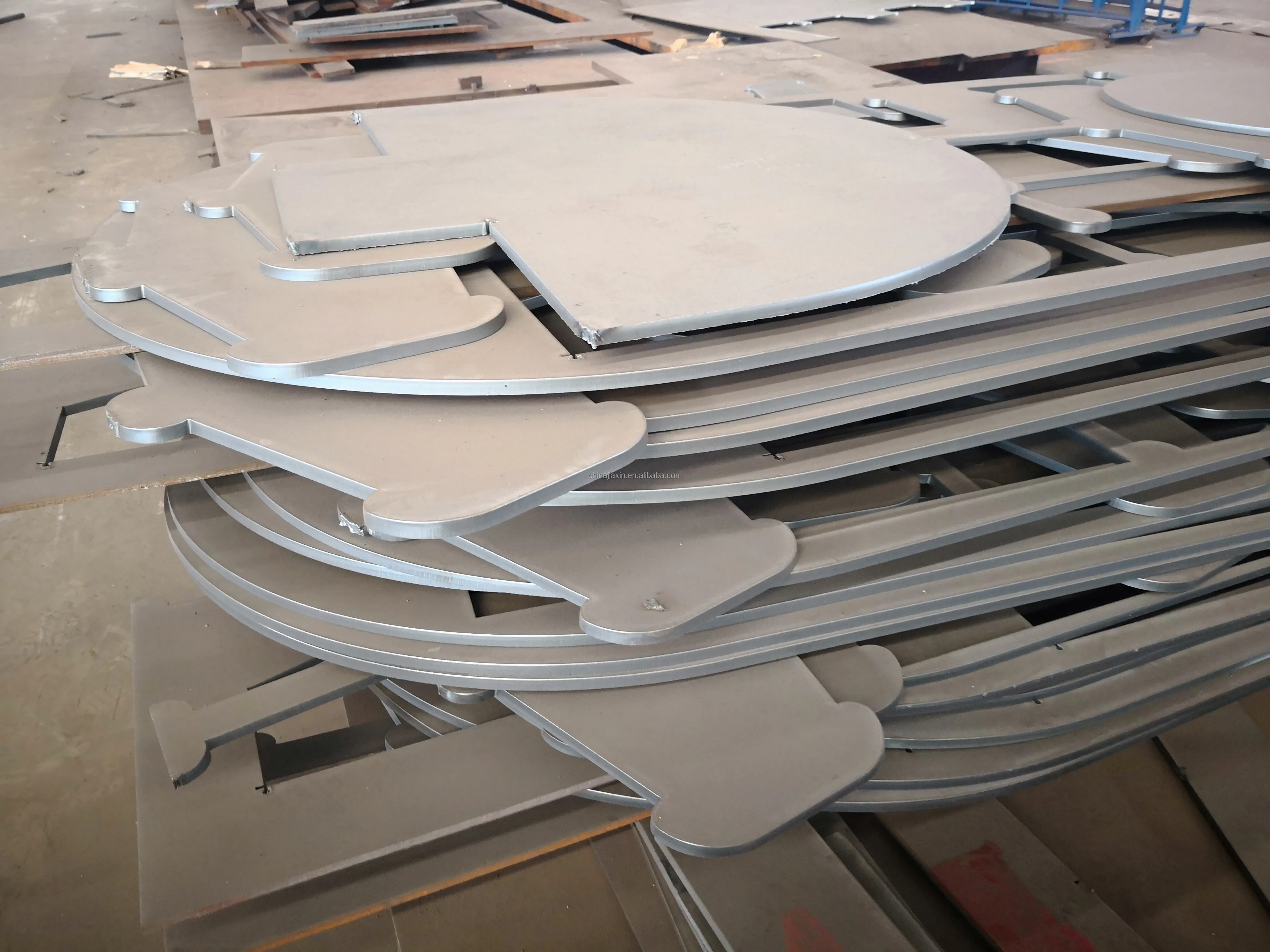

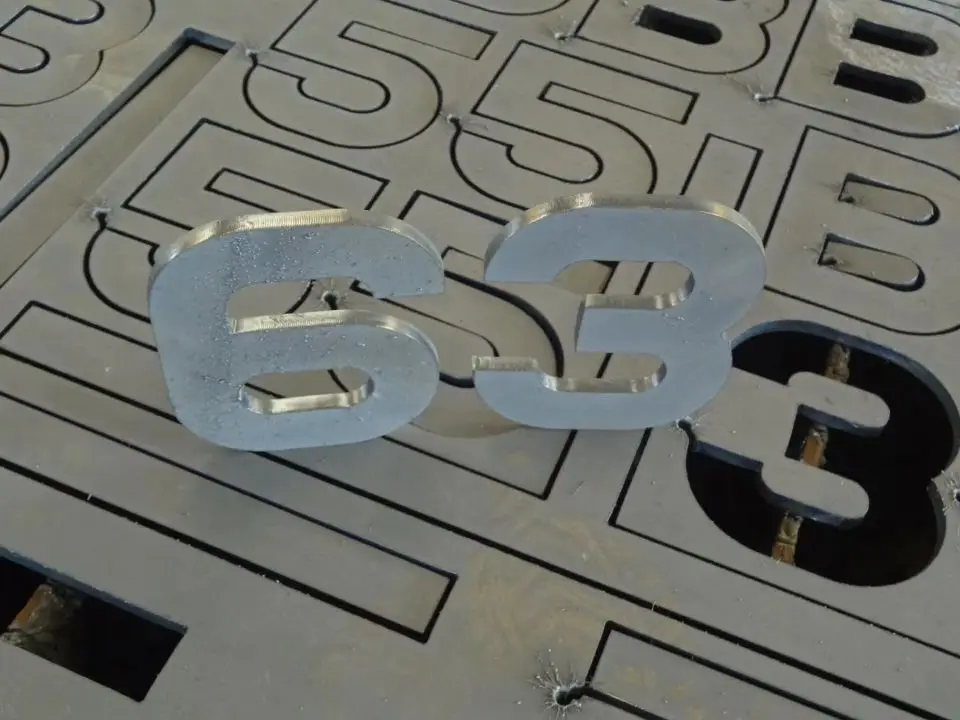

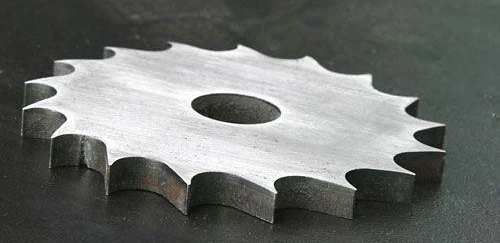

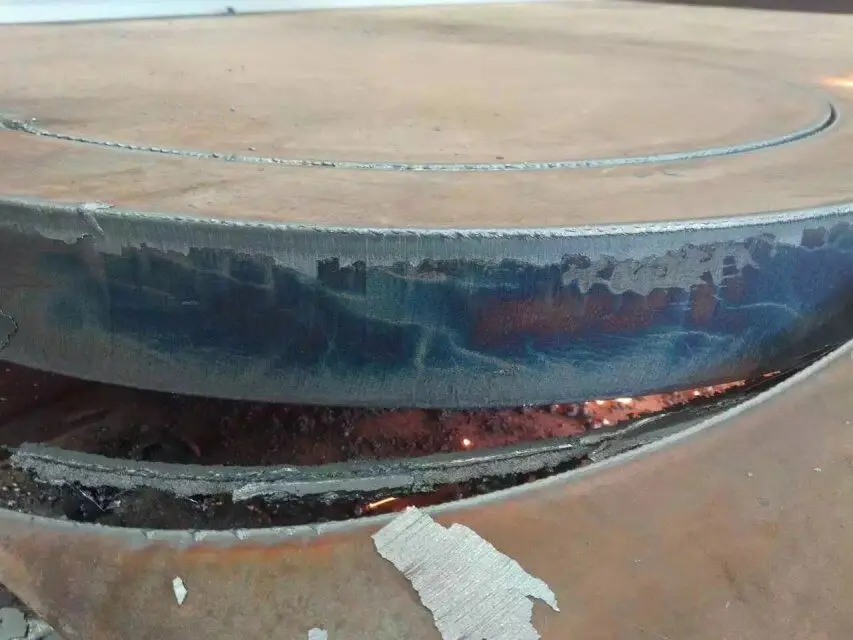

Cutting Sample
Related Products
Packing&Shipping
Xem chi tiết
Số lượng
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
164.888.750đ
iXstU1iDj8
Mô tả sản phẩm
Kích thước: 3000*8000m mLoại động cơ: Servo Motor
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: JIAXINSố Mô Hình: JX-3080
Điện áp: 220VCông suất: 2kw
Kích thước (L * W * H): 3.3*10*1.5mTrọng lượng (KG): 1100 KG
Năm: 2020Bảo hành: 2 Năm
Key Điểm Bán Hàng: Giá cả cạnh tranhÁp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Xây dựng làm việc, Công Ty quảng cáo
Phòng Trưng Bày Trí: Không cóTiếp Thị Loại: Sản Phẩm Mới 2020
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 2 NămCore Thành Phần: Động Cơ, Hộp Số, PLC
Tên sản phẩm: CNC Plasma và oxy-nhiên liệu máy cắt cho 30 métĐộ dày cắt: Theo nguồn năng lượng Plasma
Tốc độ cắt: 0-12000mm/phútKhu vực làm việc: 2200*8000m m
Hệ thống điều khiển: Shanghai fangling f2300aChế độ ổ đĩa: Ổ đĩa song phương
Động cơ truyền động: Động cơ servo Panasonic 400W với điều khiểnTHC: Fangling f1621
Phần mềm lồng nhau: Phần mềm Starcam
Product Description
Gantry Type Heavy Duty CNC Plasma And Oxy-fuel Cutting Machine For 30mm
Detailed Images
400W Servo motor of Panasonic Brand
More precision and quicker speed.
24KG High precision fine grinding guide rail
Shanghai Fangling F2300A Control System
512M RAM, At least 80GB Hard Disk
Air-Conditioner for CNC& Electrical Components
USB & RJ45 Interfaces for loading in cutting files.
EMI for Servo Driver System.
CNC functions
Air-Conditioner for CNC& Electrical Components
USB & RJ45 Interfaces for loading in cutting files.
EMI for Servo Driver System.
CNC functions
StarCam Nesting software
StarCAM pro nesting software, professional software used on plasma/flame cutters.
It supports CAD, DXF, DWG, IGES format files.
Fangling F1621 THC
A. Auto Initial Height Sensing(IHS)：
B. Torch Anti-Collision Function:
C. Freeze Auto Height Control on Corner Signal
D. Lifting torch Up on IHS Disabled status.
E. Lifting Torch Up on TURN ON or Arc Off:
1. Set Pierce Delay Time.
G.Manual Operation
Flame & Plasma cutting torch
Hypertherm, Thermadyne or other brands
With anti-collision holder, during the cutting, when the torch touched the steel, torch will automatically pause, after the obstacle away, the torch will continue move, it protect the torch from damage.
Machine Frame
It's gantry type structure, which is made by the
main beam, secondary beam and lengthwise supports. The beams and supports are made of square steel. It's processed in machining center after welding and heat working, which ensures the beams and supports are of hardness and stiffness. We can install several lifting stations to the main beam so as to achieve several torches working together.
main beam, secondary beam and lengthwise supports. The beams and supports are made of square steel. It's processed in machining center after welding and heat working, which ensures the beams and supports are of hardness and stiffness. We can install several lifting stations to the main beam so as to achieve several torches working together.
China Huayuan Plasma Power Source
63, 100A, 120A, 160A, 200A, 300A, 400A for optional
Size Information
Gantry Type Heavy Duty CNC Plasma And Oxy-fuel Cutting Machine For 30mm
Model | JX-3080 | |
Effective Cutting area | 2200*8000mm | |
Machine Dimension | 4*10*1.5m | |
Configuration | ||
Cutting model | Plasma Cutting and Flame Cutting | |
No-load speed | 12000mm/min without shake | |
Cutting thickness | According to plasma power source | |
Drive mode | Bilateral drive | |
Drive motor | 400W Panasonic Servo Motors With Driver | |
Torch Height Control | ||
Arc THC | Shanghai Fangling automatic arc voltage THC F1621 | |
Rail | 14pcs of Y axis rails, 1pc of X axis rail, Linear, Dia 30mm | |
Control System | Shanghai Fangling F2300A | |
Lift Range | 150mm | |
Working Speed | 0-8000mm/min | |
Software & System | ||
Nesting software | StarCAM software | |
Cutting platform | INCLUDE | |
China Huayuan Plasma Power Source for CNC Plasma Cutting Machine
Item | Model | ||||||||||||
LGK-63IGBT | LGK-100IGBT | LGK-120IGBT | LGK-160IGBT | LGK-200IGBT | LGK-300IGBT | LGK-400IGBT | |||||||
Input source | 3 phase 380V 50Hz | ||||||||||||
Rated input capacity (KVA) | 9.5 | 17.8 | 22.4 | 32.2 | 46.7 | 65.8 | 94.1 | ||||||
Rated input current (A) | 14.5 | 27 | 34 | 49 | 71 | 100 | 143 | ||||||
Rated output current (A) | 63 | 100 | 120 | 160 | 200 | 300 | 400 | ||||||
Rated output voltage (v) | 106 | 120 | 128 | 144 | 160 | 200 | 200 | ||||||
Rated unloading voltage (v) | 300 | 300 | 300 | 315 | 315 | 380 | 380 | ||||||
Rated loading cycle | 60%(40℃) | 100%(40℃) | |||||||||||
Range of output current (A | 30-63 | 30-100 | 30-120 | 30-160 | 30-200 | 30-300 | 30-400 | ||||||
Ratio of arc pressure output signal | 1:1/1:20/1:50/1:100 | 1:1/1:20 | |||||||||||
Qualified cutting capacity (carbon steel) (mm) | 0.3-12 | 0.3-22 | 0.3-25 | 0.3-35 | 0.3-45 | 0.3-50 | 0.3-60 | ||||||
Cutting capacity (carbon steel) | 25mm | 40mm | 45mm | 55mm | 65nmm | 80mm | 90mm | ||||||
Plasma air | Air compressor | ||||||||||||
Air pressure | 0.3-0.5Mpa | 0.4-0.6Mpa | 0.45-0.6Mpa | ||||||||||
Cooling method of torch | Air Cooling | Water Cooling | |||||||||||
Cooling method of source | Air cooling | ||||||||||||
Insulation grade | Grade F | ||||||||||||
Shell protect grade | IP21S | ||||||||||||
Dimension (mm) | 585*280*485 | 675*320*605 | 800*380*650 | 800*380*810 | 890*430*900 | 930*430*900 | |||||||
Net weight (kg) | 26 | 45 | 46 | 65 | 82 | 124 | 144 | ||||||
Working pictures
Gantry Type Heavy Duty CNC Plasma And Oxy-fuel Cutting Machine For 30mm
1. This gantry cnc plasma cutting machine can cut any flat shape parts composed of straight lines and arcs.2.The graphic is static and dynamic, easy to learn, can be programmed directly on the machine, or can be drawn on a computer or attached by using a ready-made CAD file. The gifted software is directly converted into a G code program file, and is automatically cut by copying it to the operating system through a USB flash drive.
3. Advantage: double-sided drive structure, exquisite system structure, high degree of automation, simple operation, convenient maintenance, easy cutting from sheet metal to large thickness steel plate.
4. Application: this gantry cnc plasma cutter can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal sheets.
Cutting Sample
Related Products
Packing&Shipping
