Landpack LP-250B Cake Biscuits Pita Bread Donut Packaging Packing Machinery Machine

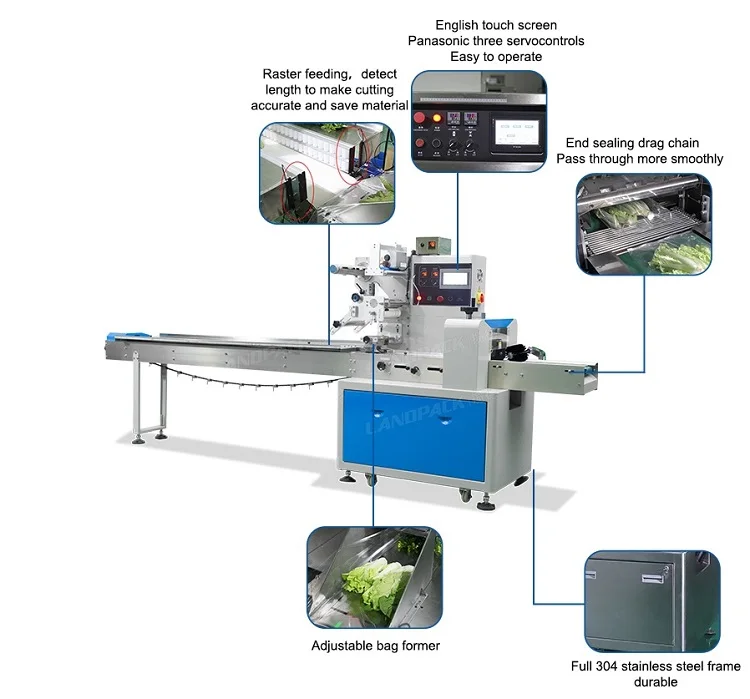

Features
1.Three Servo control, automatically detect product length and cut, operator needn't to adjust the unloading working, saving time and saving films.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
Product Paramenters
Main technical parameters of LP-250 | ||
Production capacity | 40-230 bags/min | |
Diameter of film roll | maximum 320mm | |
Packaging film width | the widest 250 mm | |
Outer bag size | the longest 280 mm widest 110 mm product packaging thickness 1-10mm | |
Air pressure | 0.5-0.7Mpa | |
Machine noise | less than 80db(A) decibel | |
Rated frequency | 50Hz | |
Rated voltage | AC220V | |
Transmission power | 4.2Kw | |
Heating power | 2.4 Kw | |
Total weight of the machine | 500 Kg | |
Machine size | total length 3920mm* total width 670mm* total height 1320mm | |
Why Three Servo Motor?
1.Three servo motor,horizontal seal&vertical seal, film transport motor and material feeding will be controlled by three servo motor individually.
2.No material,No bag:It includes a sensor,Machine will stop working immediately (sealing&cutting&packing) once no material is detected on the conveyor belt.
3.Anti-cutting function:When the cutting occurs, the cutter is suspended immediately and The cutter will rebound when it touches the material.
2.No material,No bag:It includes a sensor,Machine will stop working immediately (sealing&cutting&packing) once no material is detected on the conveyor belt.
3.Anti-cutting function:When the cutting occurs, the cutter is suspended immediately and The cutter will rebound when it touches the material.
Application
Mainly used for packing various regular and solid products such as dental floss, candle, cookie, towel, popsicle, vegetable, fruit, noodles, cake, bread, biscuit, candy, chocolate, daily necessities, face mask, chemical product, medicine, hardware and so on.
