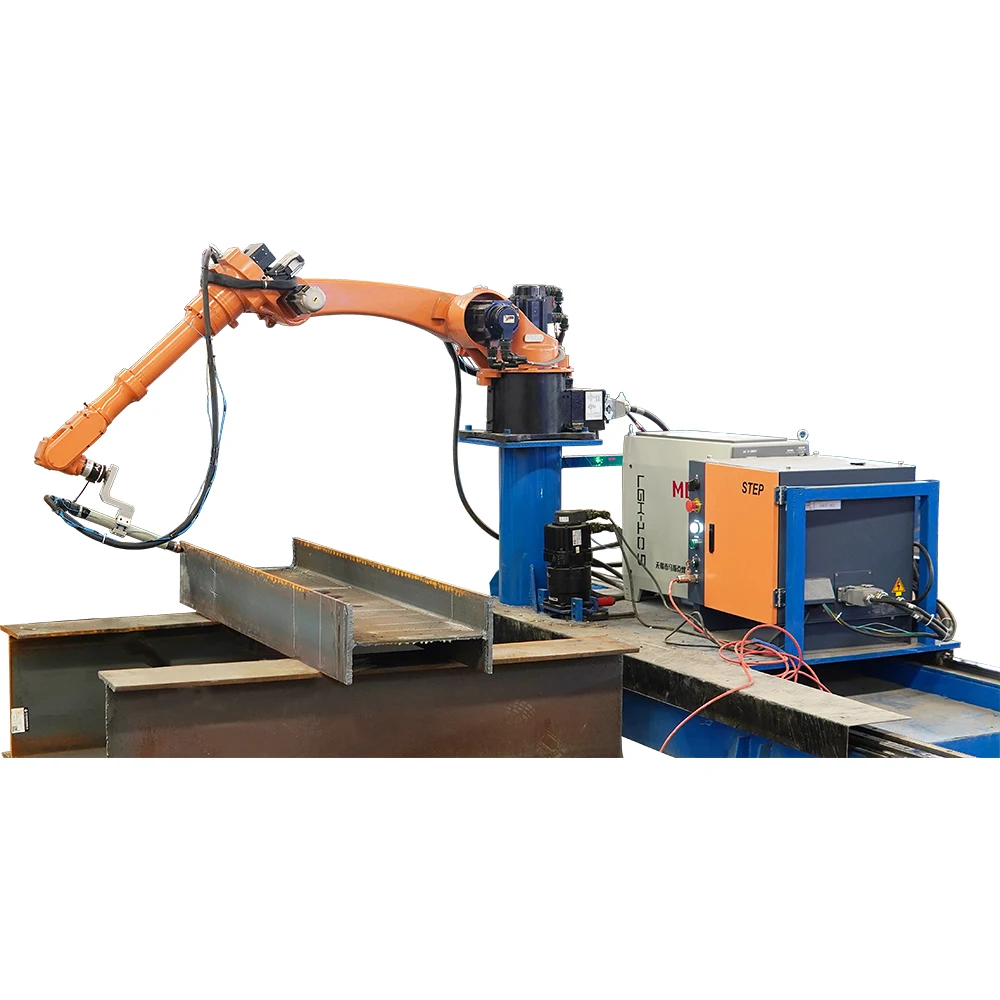

Robot Hàn 6 Trục Bán Chạy Robot Hàn Giá Robot Hàn Tig Hồ Quang

999

Đã bán

304.410.000đ

228.307.500đ ~ 304.410.000đ

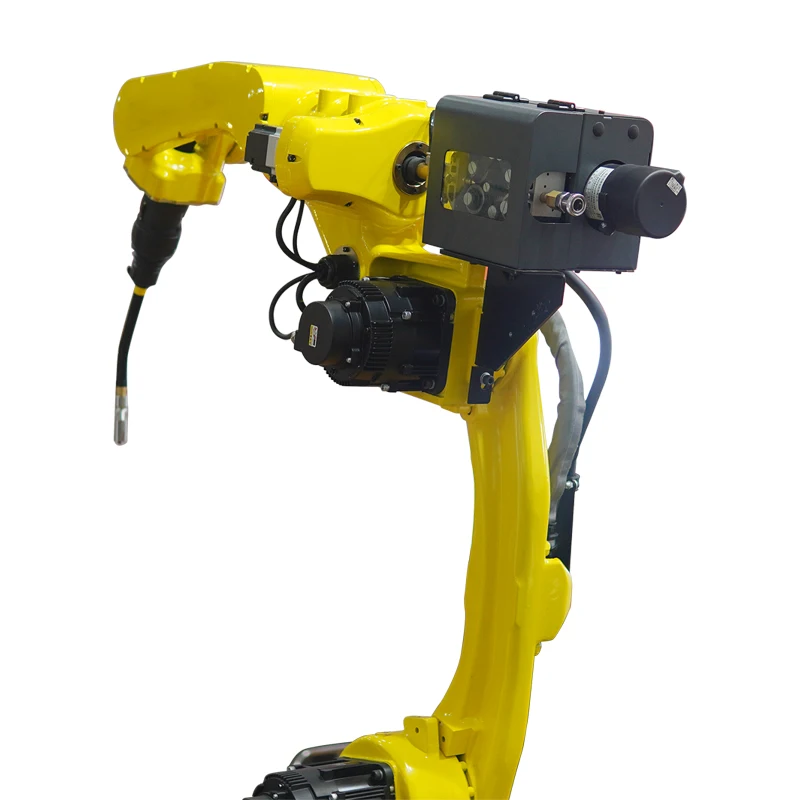

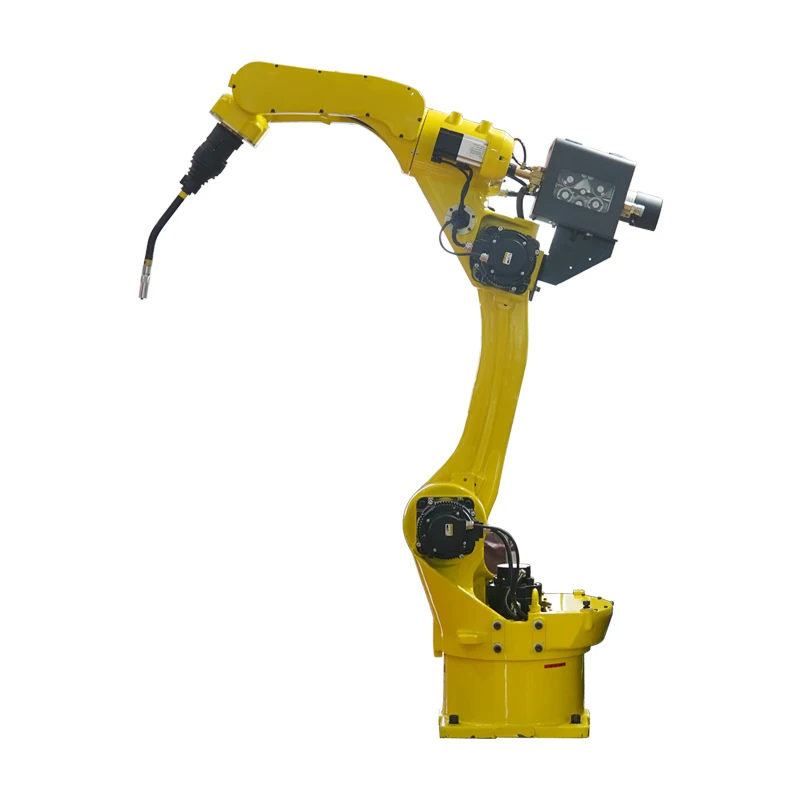

Robot Hàn 6 Trục Bán Chạy Robot Hàn Giá Robot Hàn Tig Hồ Quang

999

Đã bán

304.410.000đ

228.307.500đ ~ 304.410.000đ

Thông tin

Nơi xuất xứ: Shandong, ChinaNhãn hiệu: Jiaxin

Ứng dụng: Bàn giao, cắt, HànCác tính năng: Tự động

Điều kiện: MớiNăng lực sản xuất: 1000sets/tháng

Bảo hành: 1 nămKích thước (L * W * H): 100*100*100cm

Công suất (HP): 300Điện áp: 220V

Áp dụng Các Ngành Công Nghiệp: Nhà Máy sản xuất, Xây dựng làm việcTrọng lượng (KG): 200

Phòng Trưng Bày Trí: Không cóVideo Gọi Đi-Kiểm Tra: Cung Cấp

Máy Móc Báo Cáo Thử Nghiệm: Cung CấpTiếp Thị Loại: Sản Phẩm mới 2022

Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: PLC, Động Cơ

Chức năng: Hàn, cắtSố của trục: 6 trục 5 trục 4 Trục

Tải trọng: 6KGRobot loại: 6 trục Khớp Nối Robot

Màu sắc: Yêu Cầu của khách hàngMức độ: Cao Tự Động

Lợi thế: Chi phí Tiết Kiệm Hiệu Quả CaoHiển thị: 8 Inch Màu Sắc Thực Sự LCD

Cấu trúc: Khớp nốiGắn loại: MỘT loạt các cách khác nhau, theo các nhu cầu của các kế hoạch

Product Description

Industrial robots are multi-joint manipulators or multi-degree-of-freedom robots oriented to the industrial field. An industrial
robot is a machine device that automatically performs work. It is a machine that realizes various functions by its own power and
control capabilities. It can be commanded by humans, or it can run in accordance with a pre-arranged program. Typical applications
of industrial robots include welding, painting, assembly, collection and placement, product inspection and testing, etc. all
tasks are completed with high efficiency, durability, speed and accuracy.

Specification

Model No.	JX10-1440
Controlled axis	6-DOF
Max payload	10 kg
Max stroke	1440mm
IP Level	J1, J2-IP56 J3, J4, J5, J6-- IP67
Installation mode	Floor type, ceiling type
Robot mass	172 kg
Repeatability	±0.05 mm
Welding machines	● Standard: Aotai NBC-350R (MIG/MAG/CO2)
		● Optional: Aotai NBC-350RL (low spatter)
		● Optional: Aotai NBC-350RL (low spatter)
Welding current	350A/500A
Welding torch	Standard air-cooling torch with built-in anti-collision protection

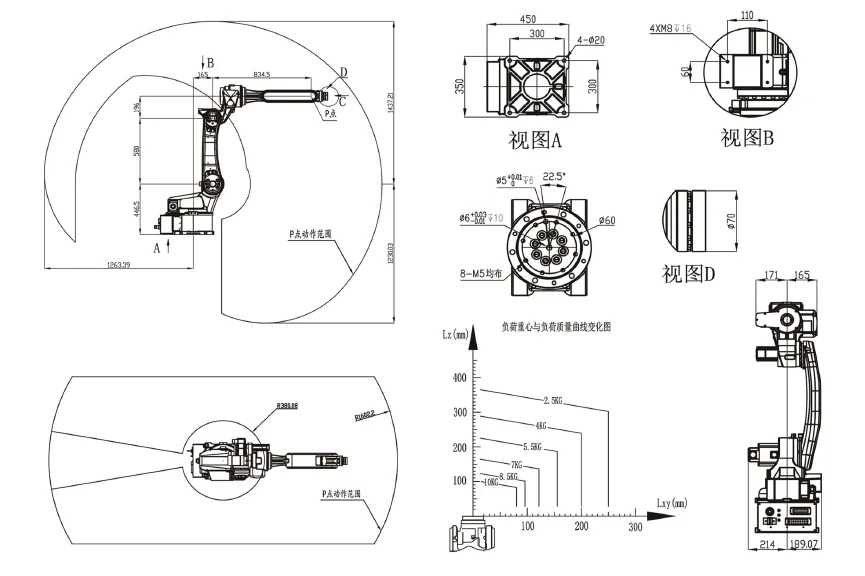

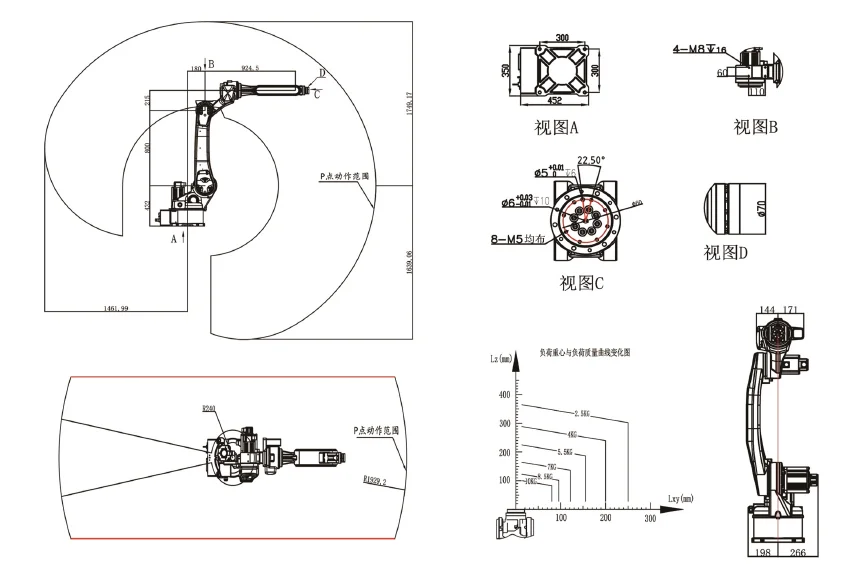

Travel range
J1 axis S	±160°
J2 axis L	+80°~-145°
J3 axis U	+145°~-75°
J4 axis R	±190°
J5 axis B	+50°~-210°
J6 axis T	±230°
Travel speed
J1 axis S	199.5 ˚/s
J2 axis L	159.3 ˚/s
J3 axis U	199.5 ˚/s
J4 axis R	392 ˚/s
J5 axis B	272 ˚/s
J6 axis T	1000 ˚/s

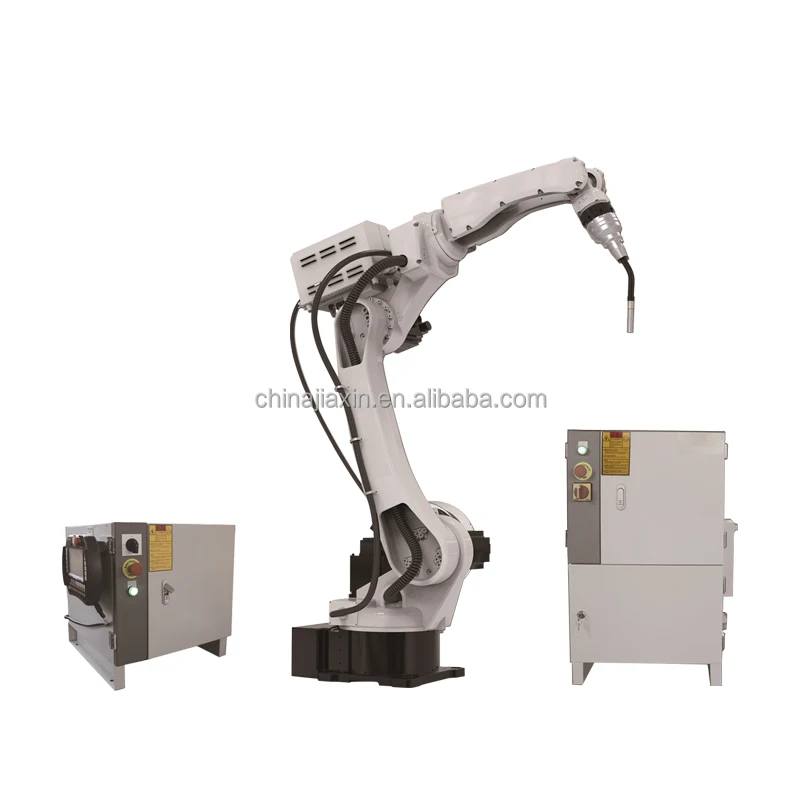

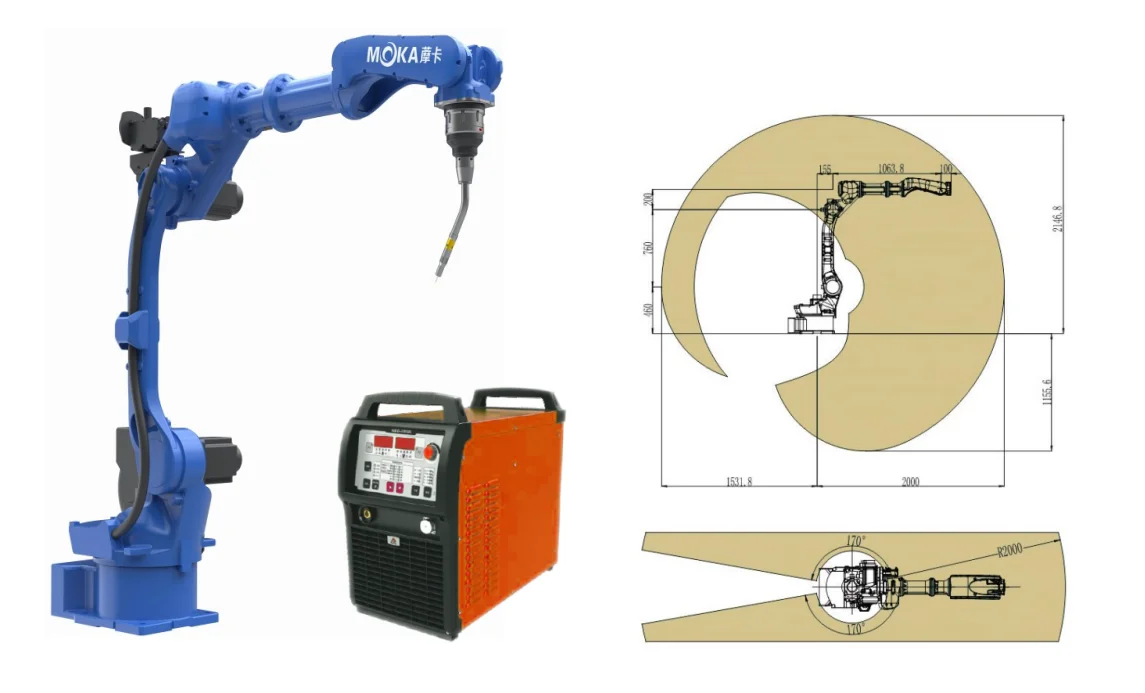

Working pictures

Company Profile

From a roll with factory has developed into a production cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality first" business philosophy To customers as the management aim of god. Through the nationwide sales and service network, improve the pre-sale, sale, after-sales service Through the sincere cooperation to provide you with excellent products and efficient service.

FAQ

1. who are we?
We are based in Shandong, China, start from 2013,sell to South America(24.00%),Oceania(23.00%),Southeast Asia(19.00%),Mid East(19.00%),Western Europe(7.00%),North America(3.00%),Africa(2.00%),Eastern Asia(2.00%),Central America(00.00%),Eastern Europe(0.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment

3.what can you buy from us?
CNC Cutting Machine,Bending Machine

4. why should you buy from us not from other suppliers?
Capable of producing cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality f

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese
