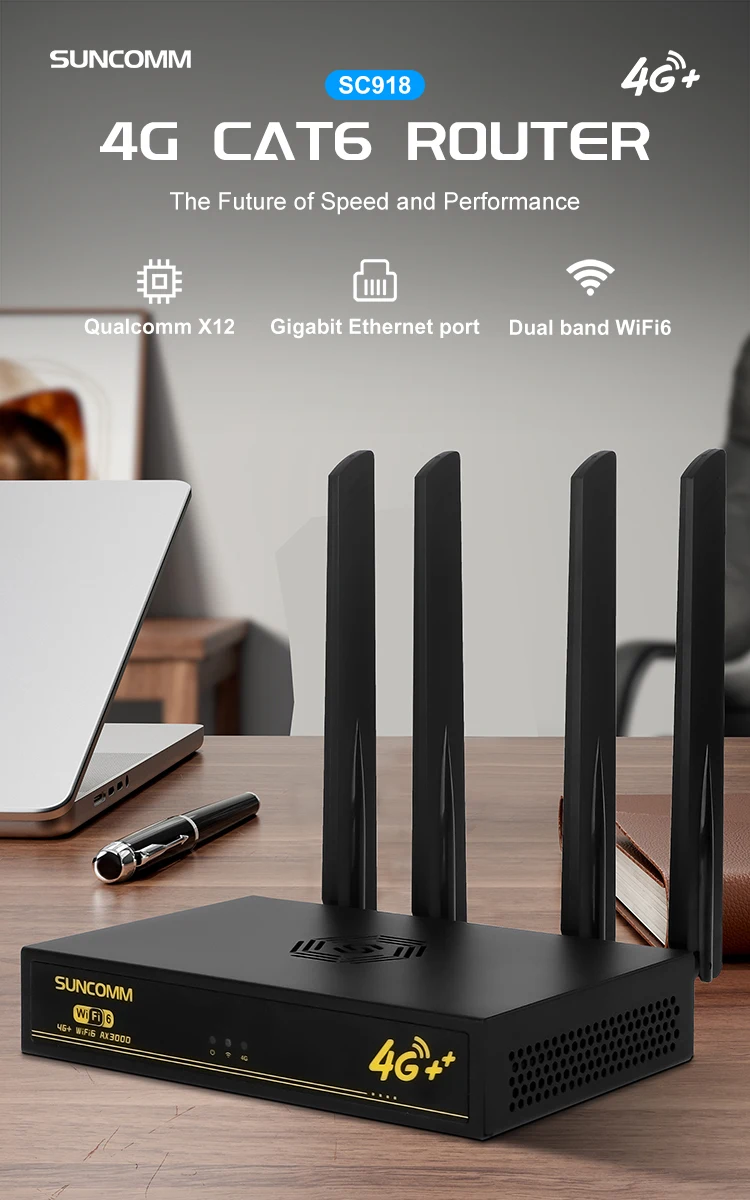

Sc918 Cat6 4G Wifi Router Ax3000 Dual Band Wifi6 Dual Sim Mạng Lưới VPN Gigabit Cổng 4G Router Cho Nhà Thông Minh Mạng

LTE.FDD : B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71

LTE.FDD :B2 B3/B5/B7/B12/B13/B25/B26/B29/B30/B66

LTE.FDD : B1/B3/B5/B7/B8/B20/B28/B32

WiFi CPU

MT7981BA+MT7976CN+MT7531AE（Dual-core A53 1.3GHz）

WiFi Frequency

2.4G (2412~2472MHz)

Wireless transmission
speed

2.4G 2T2R :Up to 574Mbps , 5G 2T2R :Up to 2402Mbps

Storage

256MB DDR3 +128MB SPINAND FLASH

WiFi Standard

IEEE 802.11b、g、a、n、ac、ax
IEEE 802.3、3u、3x

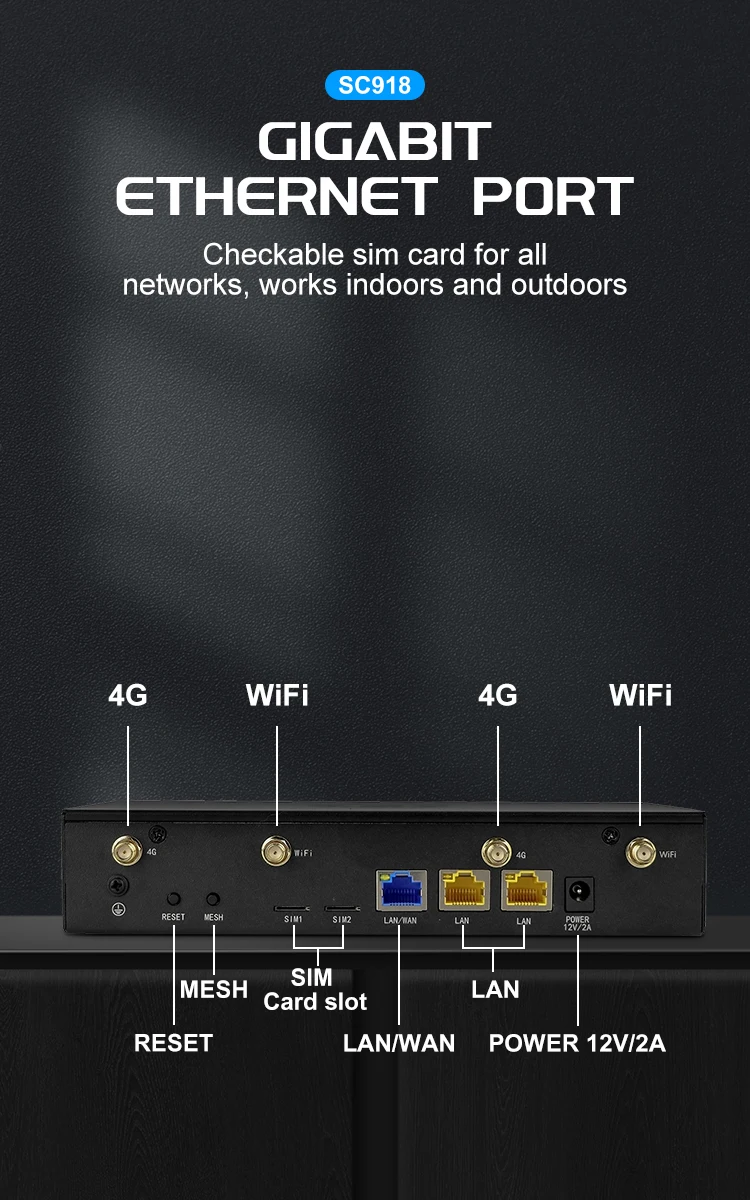

Interface

1 x10/100M/1000M WAN port, supporting Auto MDI/MDIX
1 x10/100M/1000M LAN port, support Auto MDI/MDIX

4G Data Rates

LTE : 300Mbps； UP 50Mbps

Button

WPS
Reset (press and hold for 5 seconds)

LED

4G, WiFi signal indicator, internet indicator

Antenna

High gain, detachable antenna (SMA can be connected to an outdoor antenna)

Number of antennas

2 x 4G LTE antennas, 5 x WiFi antennas

Supply powers

12V/2A

Basic functions

Wireless on/off
SSlD Broadcast Enable/0ff
Channel selection： 1～13(2.4G)36~165(5GHz)
2.4G bandwidth：20MHz, 40MHz
5.8G bandwidth：20MHz，40MHz，80MHz，160MHz

Working mode

AP/Router

Wireless security

Wireless MAC address filtering
64/128 bit WEP encryption
WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE WPS(PBC)

Other features

Wireless host status display
Wireless site scanning
Seamless roaming between nodes
Seamless roaming between bands

WiFi settings

WiFi basic settings (dual-band integration, switch, wireless mode.SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). Advanced setting（wireless client isolation, 802.11h, WMM multimedia acceleration). Multiple SSlDs (SSIDs,encryption methods, PWDs, and encryption algorithms)

Network status

Register network information: Click to directly configure APN dialing information
System status view： device information (power-on duration, system time, software version, hardware version), 4G dial-up information, LAN status, WlFl information, lPv6 information
Client information: You can directly pull a client into the blacklist WiFi information: You can directly jump to configure WiFi information Real-time Internet access rate display, WAN IP address display,software version information

Network settings

Data Switch, Roaming Switch, Mode Selection, Default APN Information,and APN Manual Configuration
FAILOVER switches:PPPOE, DHCP，and static
4G band locking

WiFi settings

WiFi name and password, WiFi timing, channel bandwidth setting, power regulation, bridging function, OFDMA

SMS feature

SMS sending and receiving, SMS center settings

Guest network

Configure the SSlD, rate limit, and startup time limit of the guest network

Parental controls

Online device display, online time, restricted Internet time period,URL filtering configuration

Advanced settings

Working Mode, Mobile Data Switch, Bandwidth Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host,UPnP, TR069 Settings

System settings

System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade,Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management，Change IMEI

Use environment

Operating temperature:-20°C to 50°C
Storage temperature:-40°C to 70°C
Operating humidity:10% to 90% RH non-condensing
Storage humidity:5% to 95% RH non-condensing

eSIM

Optional

size

108X108X216MM
