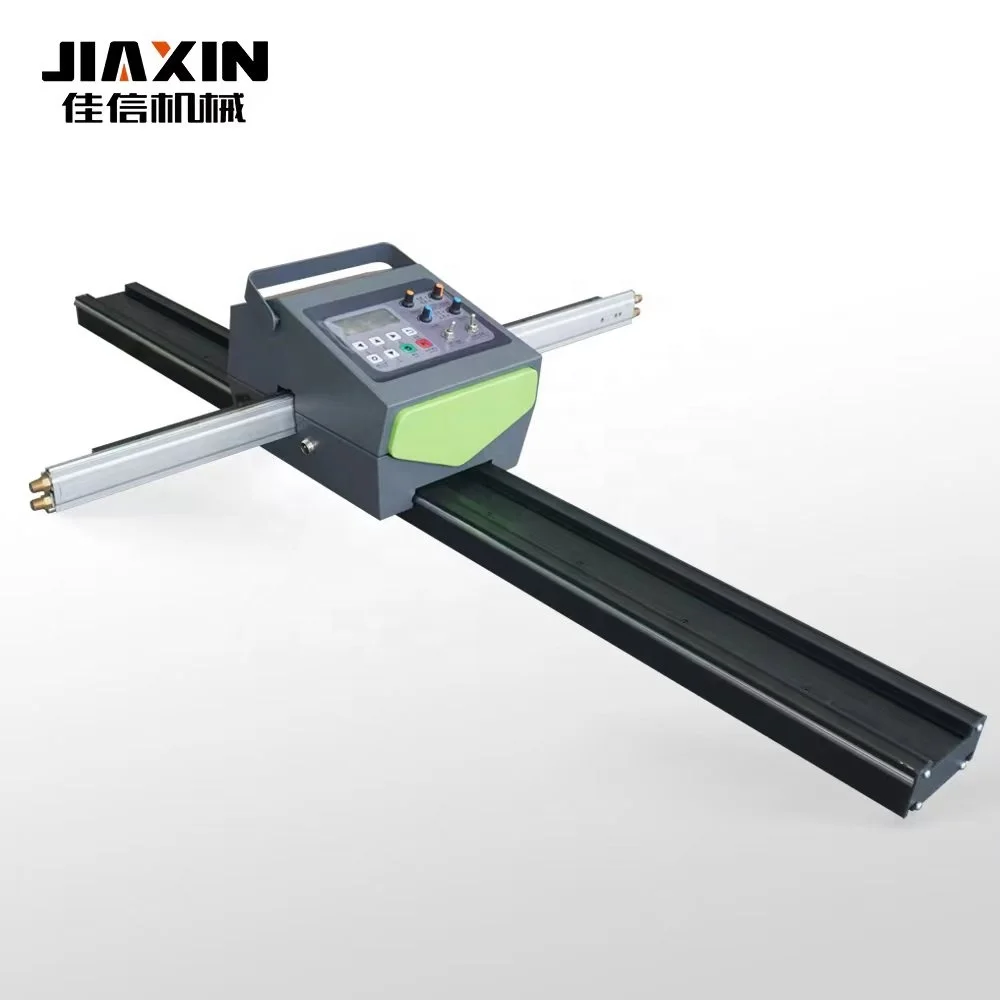

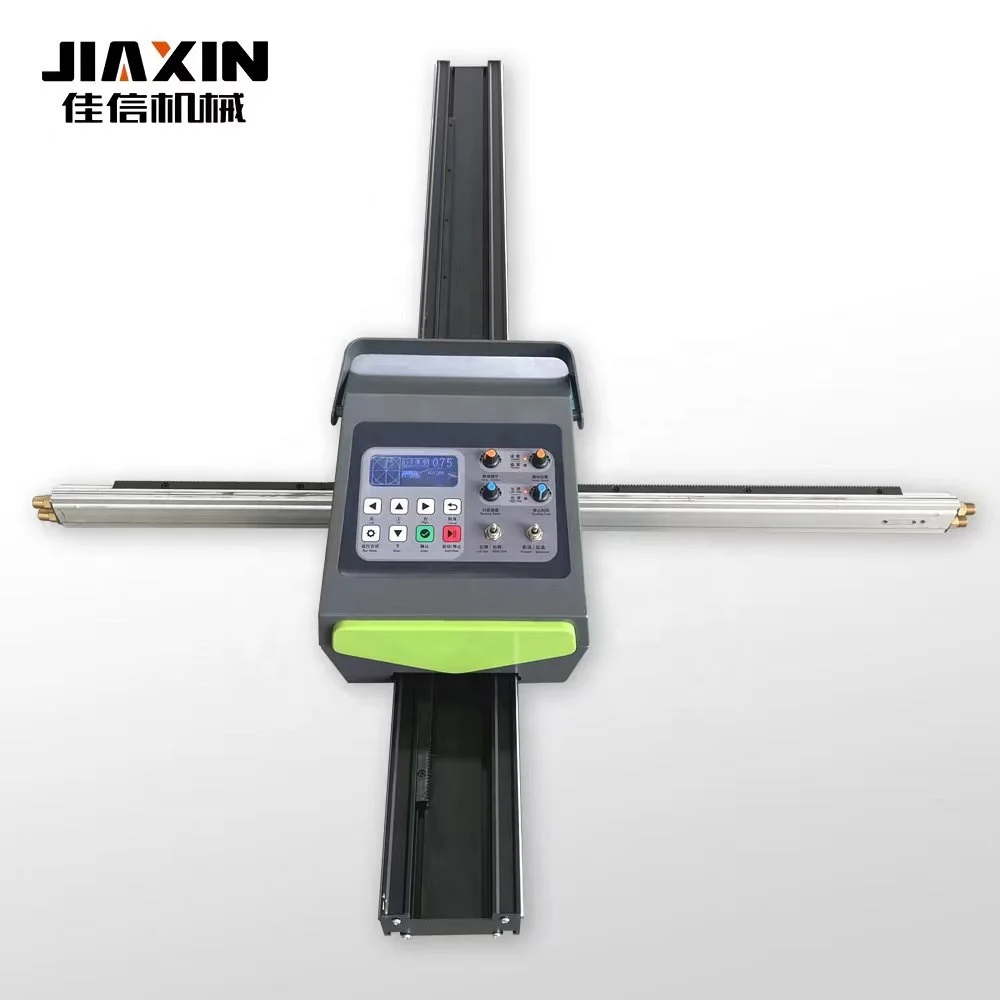

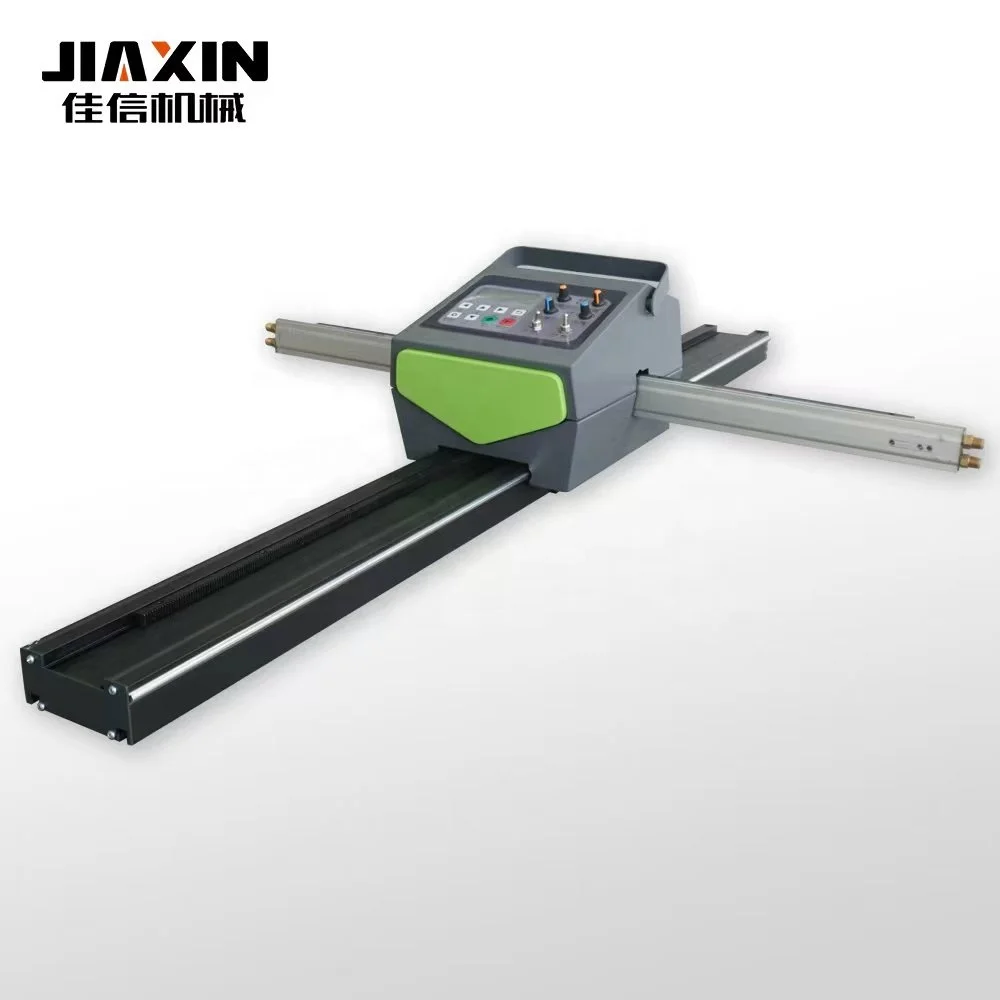

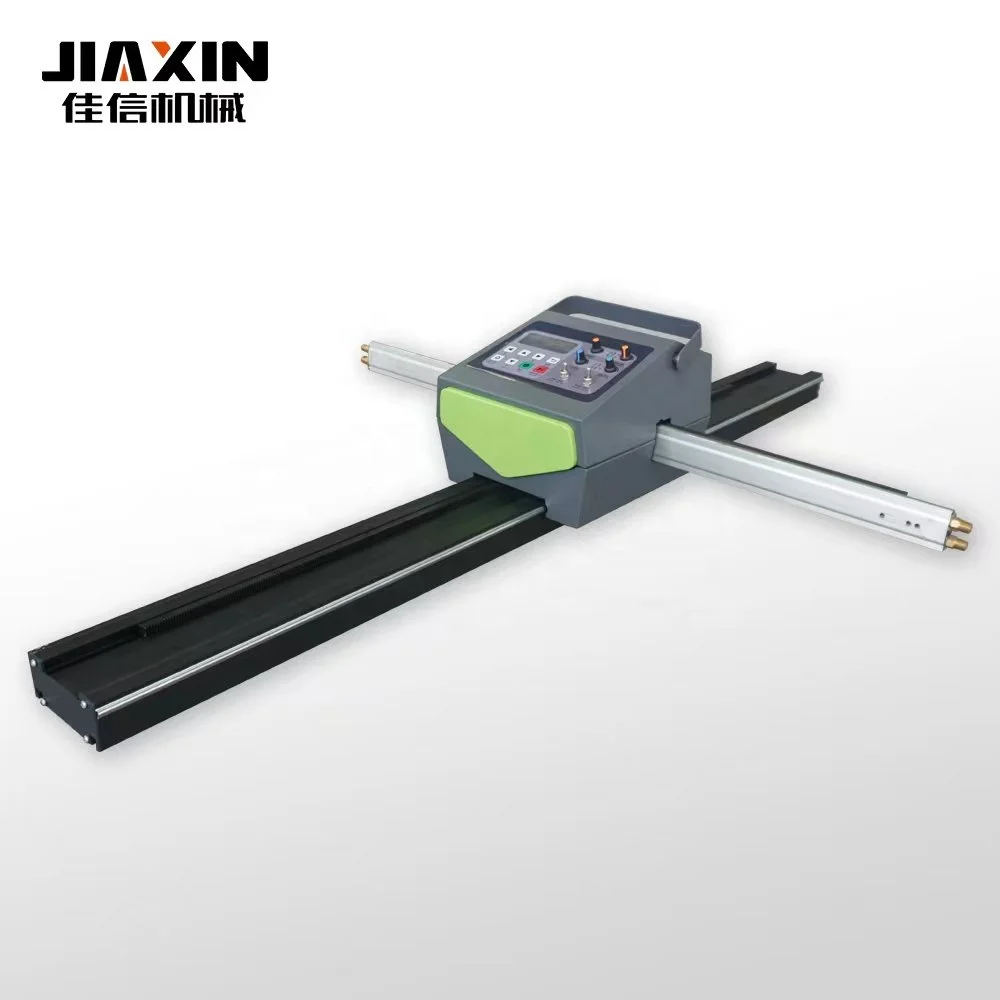

Siêu giá thấp Máy cắt plasma, hoạt động di động, chi phí vận chuyển thấp
5
999
Đã bán
39.339.222đ
36.801.207đ ~ 39.339.222đ
Kích thước: 1500*3000m mLoại động cơ: Động cơ bước
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: JIAXINSố Mô Hình: 001
Điện áp: 380V/220V, 380V/220VTrọng lượng (KG): 100 KG
Năm: 2024Bảo hành: 1 Năm
Key Điểm Bán Hàng: Dễ dàng để Hoạt ĐộngÁp dụng Các Ngành Công Nghiệp: Nhà Máy sản xuất
Phòng Trưng Bày Trí: Không cóTiếp Thị Loại: 2024 Sản phẩm bán chạy
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ
Sản xuất Tên: Máy cắt và hàn PlasmaChế độ cắt: Cuttting và hàn
Ứng dụng: Để cắt kim loạiSau bán hàng dịch vụ cung cấp: Hỗ trợ kỹ thuật Video
Độ dày cắt: 0-120m mThời gian giao hàng: -7 °C
Phương pháp cắt: Cắt pasmaMáy cắt plasma: Gang nhôm
Product Description
Specification
item | value |
Motor Type | Stepper Motor |
Condition | New |
Place of Origin | China |
Place of province | Shandong |
Brand Name | JIAXIN |
Model Number | |
Voltage | 380V/220V |
Core Components | Motor |
Packing & Delivery
wooden box
Company Profile
From a roll with factory has developed into a production cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality first" business philosophy To customers as the management aim of god. Through the nationwide sales and service network, improve the pre-sale, sale, after-sales service Through the sincere cooperation to provide you with excellent products and efficient service.
FAQ
1. who are we?
We are based in Shandong, China, start from 2013,sell to South America(24.00%),Oceania(23.00%),Mid East(19.00%),Southeast Asia(19.00%),Western Europe(7.00%),North America(3.00%),Eastern Asia(2.00%),Africa(2.00%),Central America(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
3.what can you buy from us?
CNC Cutting Machine, Bending Machine
4. why should you buy from us not from other suppliers?
Capable of producing cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality f
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2013,sell to South America(24.00%),Oceania(23.00%),Mid East(19.00%),Southeast Asia(19.00%),Western Europe(7.00%),North America(3.00%),Eastern Asia(2.00%),Africa(2.00%),Central America(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
3.what can you buy from us?
CNC Cutting Machine, Bending Machine
4. why should you buy from us not from other suppliers?
Capable of producing cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality f
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese
Figure 5-1 Arc voltage height regulator button (embedded 1628S)
Note: There are many kinds of arc voltage height regulators, and the working principle is basically the same.
Do not modify the internal parameters of arc voltage height regulator at will.
The steel plate and the cutting gun should be kept 3-5mm high when the arc is started.
The red display screen will jump from 0 to the arc pressure we need to record during the arc test, and will continue to increase
after the perforation is completed, so the sheet only has the correct real-time arc pressure display for an instant.
5.3 Cut the measured data
The parameters in this table are the test results of the 100% load rate model of Huayuan, and the current needs to increase by 15%
for every 10% drop in load rate.
The test pressure is 0.5-0.6 MPA, the cutting gun is Qifeng 100 fine, and the gun line is 8 meters. The longer the line, the
higher the pressure demand, and at the same time the power of the plasma will decrease.
2 > 0.4 60A 1.3 0 ~4000 3
5 > 0.4 70A 1.3 0.5 ~2500 3
10 > 0.4 100A 1.5 1 ~2000 3
16 > 0.4 120A 1.5> 1.5 to 1000 5
Table 5-1 Plasma parameter recommendation table
This table is the standard value of Qifen100 fine cutting gun, the actual effect is subject to voltage, air pressure, cutting gun
height changes will have a difference of about 20%, fine cutting gun with protective cap, please pay strict attention to the
change of intake air flow, if the air is humid and too much water, it is best to dry when replacing the cutting mouth, and at the
same time the air pump outlet uses a three-stage filter to filter out water. Otherwise it is easy to burn the cutter.
Note: when the blue light is emitted from the arc or the sound becomes sharp, the cutting nozzle should be replaced immediately.
If the cutting nozzle is damaged and not replaced in time, it will cause the protection cap to burn, and then burn other
components, which can be avoided with a little attention.
Note: There are many kinds of arc voltage height regulators, and the working principle is basically the same.
Do not modify the internal parameters of arc voltage height regulator at will.
The steel plate and the cutting gun should be kept 3-5mm high when the arc is started.
The red display screen will jump from 0 to the arc pressure we need to record during the arc test, and will continue to increase
after the perforation is completed, so the sheet only has the correct real-time arc pressure display for an instant.
5.3 Cut the measured data
The parameters in this table are the test results of the 100% load rate model of Huayuan, and the current needs to increase by 15%
for every 10% drop in load rate.
The test pressure is 0.5-0.6 MPA, the cutting gun is Qifeng 100 fine, and the gun line is 8 meters. The longer the line, the
higher the pressure demand, and at the same time the power of the plasma will decrease.
2 > 0.4 60A 1.3 0 ~4000 3
5 > 0.4 70A 1.3 0.5 ~2500 3
10 > 0.4 100A 1.5 1 ~2000 3
16 > 0.4 120A 1.5> 1.5 to 1000 5
Table 5-1 Plasma parameter recommendation table
This table is the standard value of Qifen100 fine cutting gun, the actual effect is subject to voltage, air pressure, cutting gun
height changes will have a difference of about 20%, fine cutting gun with protective cap, please pay strict attention to the
change of intake air flow, if the air is humid and too much water, it is best to dry when replacing the cutting mouth, and at the
same time the air pump outlet uses a three-stage filter to filter out water. Otherwise it is easy to burn the cutter.
Note: when the blue light is emitted from the arc or the sound becomes sharp, the cutting nozzle should be replaced immediately.
If the cutting nozzle is damaged and not replaced in time, it will cause the protection cap to burn, and then burn other
components, which can be avoided with a little attention.
Fix the longitudinal Y-axis track
The Y-axis track is placed on the ready tooling frame, and the Y-axis rack is on the side away from the workpiece. The rack is
bolted into the specified groove of the track and fixed with the hole position of the tooling frame.
When splicing the extended track, pay attention to keep the level, the connecting plate should be fastened to the mark, the
optical axis docking should be smooth, if the rack joint can not keep the tooth pitch synchronization, must be corrected with the
correction rack.
2.1.2 The CNC host slides into the Y-axis track
There are bearings under the CNC host, which are used in conjunction with the Y axis optical axis. Hold the main engine with both
hands, keep the bearing at the same height as the optical axis, and slowly push the main engine into the track of the optical
axis. Notice that the motor gear is located on the left side of the main engine, which needs to be on the same side as the track.
When pushing the main engine, it can slide smoothly, and there is resistance from the motor gear. Then, the heat shield is
assembled and separated from the main machine using through-hole studs.
The Y-axis track is placed on the ready tooling frame, and the Y-axis rack is on the side away from the workpiece. The rack is
bolted into the specified groove of the track and fixed with the hole position of the tooling frame.
When splicing the extended track, pay attention to keep the level, the connecting plate should be fastened to the mark, the
optical axis docking should be smooth, if the rack joint can not keep the tooth pitch synchronization, must be corrected with the
correction rack.
2.1.2 The CNC host slides into the Y-axis track
There are bearings under the CNC host, which are used in conjunction with the Y axis optical axis. Hold the main engine with both
hands, keep the bearing at the same height as the optical axis, and slowly push the main engine into the track of the optical
axis. Notice that the motor gear is located on the left side of the main engine, which needs to be on the same side as the track.
When pushing the main engine, it can slide smoothly, and there is resistance from the motor gear. Then, the heat shield is
assembled and separated from the main machine using through-hole studs.
Số lượng
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
36.801.207đ
FN4AErWxp6
Mô tả sản phẩm
Kích thước: 1500*3000m mLoại động cơ: Động cơ bước
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: JIAXINSố Mô Hình: 001
Điện áp: 380V/220V, 380V/220VTrọng lượng (KG): 100 KG
Năm: 2024Bảo hành: 1 Năm
Key Điểm Bán Hàng: Dễ dàng để Hoạt ĐộngÁp dụng Các Ngành Công Nghiệp: Nhà Máy sản xuất
Phòng Trưng Bày Trí: Không cóTiếp Thị Loại: 2024 Sản phẩm bán chạy
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ
Sản xuất Tên: Máy cắt và hàn PlasmaChế độ cắt: Cuttting và hàn
Ứng dụng: Để cắt kim loạiSau bán hàng dịch vụ cung cấp: Hỗ trợ kỹ thuật Video
Độ dày cắt: 0-120m mThời gian giao hàng: -7 °C
Phương pháp cắt: Cắt pasmaMáy cắt plasma: Gang nhôm
Product Description
Specification
item | value |
Motor Type | Stepper Motor |
Condition | New |
Place of Origin | China |
Place of province | Shandong |
Brand Name | JIAXIN |
Model Number | |
Voltage | 380V/220V |
Core Components | Motor |
Packing & Delivery
wooden box
Company Profile
From a roll with factory has developed into a production cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality first" business philosophy To customers as the management aim of god. Through the nationwide sales and service network, improve the pre-sale, sale, after-sales service Through the sincere cooperation to provide you with excellent products and efficient service.
FAQ
1. who are we?
We are based in Shandong, China, start from 2013,sell to South America(24.00%),Oceania(23.00%),Mid East(19.00%),Southeast Asia(19.00%),Western Europe(7.00%),North America(3.00%),Eastern Asia(2.00%),Africa(2.00%),Central America(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
3.what can you buy from us?
CNC Cutting Machine, Bending Machine
4. why should you buy from us not from other suppliers?
Capable of producing cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality f
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2013,sell to South America(24.00%),Oceania(23.00%),Mid East(19.00%),Southeast Asia(19.00%),Western Europe(7.00%),North America(3.00%),Eastern Asia(2.00%),Africa(2.00%),Central America(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
3.what can you buy from us?
CNC Cutting Machine, Bending Machine
4. why should you buy from us not from other suppliers?
Capable of producing cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality f
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese
Figure 5-1 Arc voltage height regulator button (embedded 1628S)
Note: There are many kinds of arc voltage height regulators, and the working principle is basically the same.
Do not modify the internal parameters of arc voltage height regulator at will.
The steel plate and the cutting gun should be kept 3-5mm high when the arc is started.
The red display screen will jump from 0 to the arc pressure we need to record during the arc test, and will continue to increase
after the perforation is completed, so the sheet only has the correct real-time arc pressure display for an instant.
5.3 Cut the measured data
The parameters in this table are the test results of the 100% load rate model of Huayuan, and the current needs to increase by 15%
for every 10% drop in load rate.
The test pressure is 0.5-0.6 MPA, the cutting gun is Qifeng 100 fine, and the gun line is 8 meters. The longer the line, the
higher the pressure demand, and at the same time the power of the plasma will decrease.
2 > 0.4 60A 1.3 0 ~4000 3
5 > 0.4 70A 1.3 0.5 ~2500 3
10 > 0.4 100A 1.5 1 ~2000 3
16 > 0.4 120A 1.5> 1.5 to 1000 5
Table 5-1 Plasma parameter recommendation table
This table is the standard value of Qifen100 fine cutting gun, the actual effect is subject to voltage, air pressure, cutting gun
height changes will have a difference of about 20%, fine cutting gun with protective cap, please pay strict attention to the
change of intake air flow, if the air is humid and too much water, it is best to dry when replacing the cutting mouth, and at the
same time the air pump outlet uses a three-stage filter to filter out water. Otherwise it is easy to burn the cutter.
Note: when the blue light is emitted from the arc or the sound becomes sharp, the cutting nozzle should be replaced immediately.
If the cutting nozzle is damaged and not replaced in time, it will cause the protection cap to burn, and then burn other
components, which can be avoided with a little attention.
Note: There are many kinds of arc voltage height regulators, and the working principle is basically the same.
Do not modify the internal parameters of arc voltage height regulator at will.
The steel plate and the cutting gun should be kept 3-5mm high when the arc is started.
The red display screen will jump from 0 to the arc pressure we need to record during the arc test, and will continue to increase
after the perforation is completed, so the sheet only has the correct real-time arc pressure display for an instant.
5.3 Cut the measured data
The parameters in this table are the test results of the 100% load rate model of Huayuan, and the current needs to increase by 15%
for every 10% drop in load rate.
The test pressure is 0.5-0.6 MPA, the cutting gun is Qifeng 100 fine, and the gun line is 8 meters. The longer the line, the
higher the pressure demand, and at the same time the power of the plasma will decrease.
2 > 0.4 60A 1.3 0 ~4000 3
5 > 0.4 70A 1.3 0.5 ~2500 3
10 > 0.4 100A 1.5 1 ~2000 3
16 > 0.4 120A 1.5> 1.5 to 1000 5
Table 5-1 Plasma parameter recommendation table
This table is the standard value of Qifen100 fine cutting gun, the actual effect is subject to voltage, air pressure, cutting gun
height changes will have a difference of about 20%, fine cutting gun with protective cap, please pay strict attention to the
change of intake air flow, if the air is humid and too much water, it is best to dry when replacing the cutting mouth, and at the
same time the air pump outlet uses a three-stage filter to filter out water. Otherwise it is easy to burn the cutter.
Note: when the blue light is emitted from the arc or the sound becomes sharp, the cutting nozzle should be replaced immediately.
If the cutting nozzle is damaged and not replaced in time, it will cause the protection cap to burn, and then burn other
components, which can be avoided with a little attention.
Fix the longitudinal Y-axis track
The Y-axis track is placed on the ready tooling frame, and the Y-axis rack is on the side away from the workpiece. The rack is
bolted into the specified groove of the track and fixed with the hole position of the tooling frame.
When splicing the extended track, pay attention to keep the level, the connecting plate should be fastened to the mark, the
optical axis docking should be smooth, if the rack joint can not keep the tooth pitch synchronization, must be corrected with the
correction rack.
2.1.2 The CNC host slides into the Y-axis track

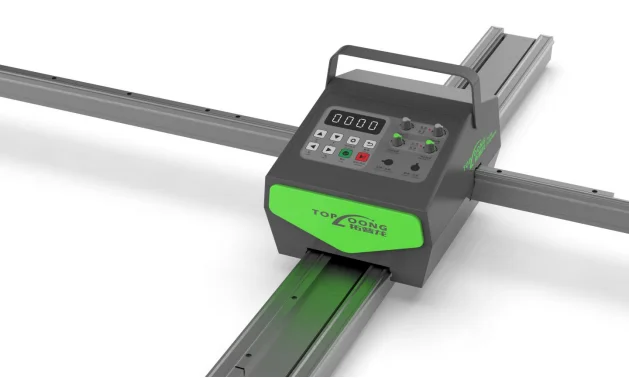

There are bearings under the CNC host, which are used in conjunction with the Y axis optical axis. Hold the main engine with both
hands, keep the bearing at the same height as the optical axis, and slowly push the main engine into the track of the optical
axis. Notice that the motor gear is located on the left side of the main engine, which needs to be on the same side as the track.
When pushing the main engine, it can slide smoothly, and there is resistance from the motor gear. Then, the heat shield is
assembled and separated from the main machine using through-hole studs.
The Y-axis track is placed on the ready tooling frame, and the Y-axis rack is on the side away from the workpiece. The rack is
bolted into the specified groove of the track and fixed with the hole position of the tooling frame.
When splicing the extended track, pay attention to keep the level, the connecting plate should be fastened to the mark, the
optical axis docking should be smooth, if the rack joint can not keep the tooth pitch synchronization, must be corrected with the
correction rack.
2.1.2 The CNC host slides into the Y-axis track
There are bearings under the CNC host, which are used in conjunction with the Y axis optical axis. Hold the main engine with both
hands, keep the bearing at the same height as the optical axis, and slowly push the main engine into the track of the optical
axis. Notice that the motor gear is located on the left side of the main engine, which needs to be on the same side as the track.
When pushing the main engine, it can slide smoothly, and there is resistance from the motor gear. Then, the heat shield is
assembled and separated from the main machine using through-hole studs.
Bán chạy
Sản phẩm đã xem
36.801.207đ ~ 39.339.222đ
Số lượng
Hiệu quả Cắt Phạm Vi (mm)
Chat
Bạn cần đăng nhập để chat với shop
Đăng nhập ngay
36.801.207đ ~ 39.339.222đ
Số lượng
Hiệu quả Cắt Phạm Vi (mm)
Bạn có muốn huỷ bỏ đơn hàng này không ?
