Thẻ ghi video HDMI 2.0 4K kênh đôi DELTA-h4k2-elp 20 USB 3.0 Trình ghi phát trực tiếp trò chơi cho PC

Mô tả sản phẩm

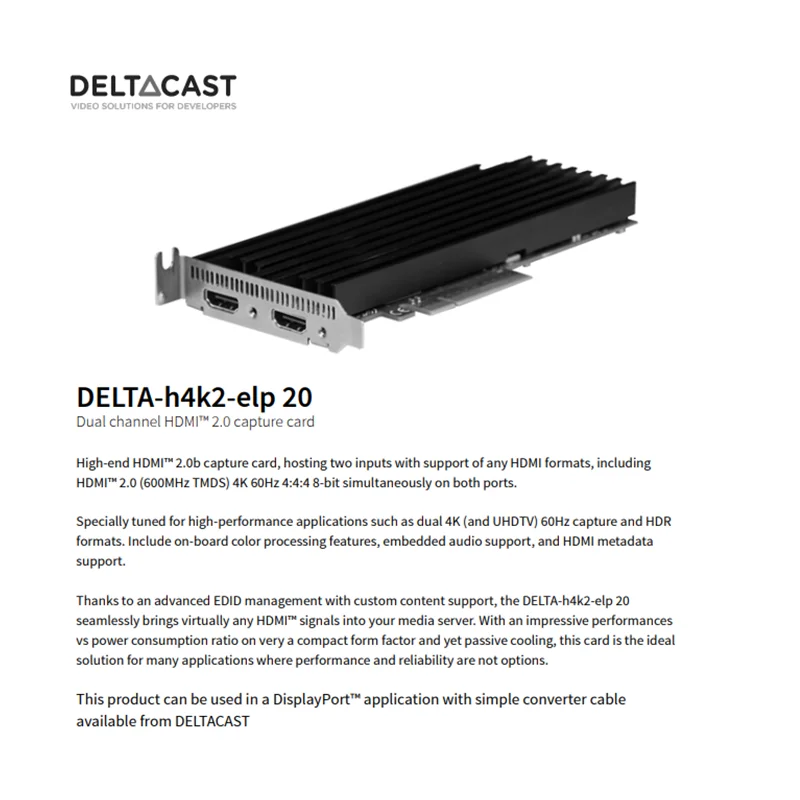

Product Description

High-end HDMI™ 2.0b capture card, hosting two inputs with support of any HDMI formats, including HDMI™ 2.0 (600MHz TMDS) 4K 60Hz
4:4:4 8-bit simultaneously on both ports.
Specially tuned for high-performance applications such as dual 4K (and UHDTV) 60Hz capture and HDR formats. Include on-board color
processing features, embedded audio support, and HDMI metadata support.

Thanks to an advanced EDID management with custom content support, the DELTA-h4k2-elp 20 seamlessly brings virtually any HDMI™
signals into your media server. With an impressive performances vs power consumption ratio on very a compact form factor and yet
passive cooling, this card is the ideal solution for many applications where performance and reliability are not options.
This product can be used in a DisplayPort™ application with simple converter cable available from DELTACAST

Specification

Hardware features
Bus Interface	PCIe Gen2 x8
Form Factor	Low-profile, half-length PCIe

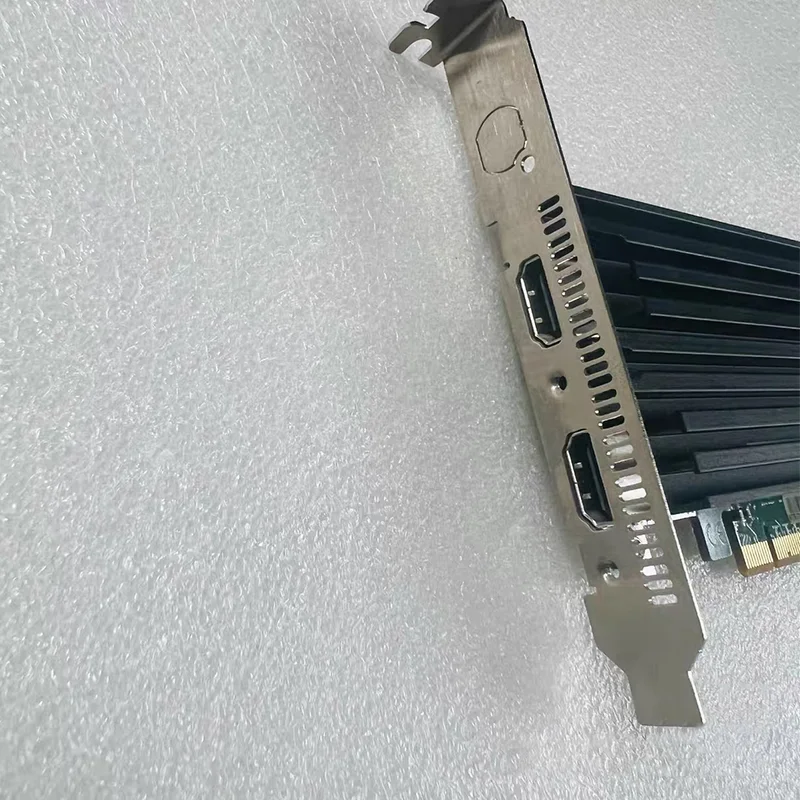

Connectors	HDMI (Type A)
Sync Input	N.A.
Serial numbering	64-bit unique ID per card
LTC Input	Support of LTC companion card for Analog LTC (ST12-1) capture
Hardware Processing
Video Signal Modes	Up to 4K60 : YCbCr 4:2:2 8/10/12-bit, RGB/YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12/16-bit

		Up to 4K30 : RGB/YCbCr 4:4:4 10/12/16-bit
Scalers	Yes
CSC	Yes
Video Interfaces
Video Interfaces	HDMI 2.0b (600MHz TMDS clock)
Video Interfaces		DisplayPort 1.2 when combined with an active DP to HDMI 2.0b converter (3rd party products)
Video Formats	Video formats: PAL, NTSC, 720p, 1080i, 1080p, 2160p (4K-DCI or UHDTV)

		Graphic formats : VGA, SVGA, XVGA, WXGA, WXGA+, UXGA, WUXGA, WSXGA

		RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0

		8-bit, 10-bit, 12-bit, 16-bit

		Frame rates from 23.98Hz to 120Hz depending on formats
Audio formats	Up to 8 digital audio channels per HDMI port in IEC60958 (PCM) or IEC61937 (DSD, HBR)
Ancillary data	-
