Thép Không Gỉ Kim Loại Đục Lỗ Cho Trailer Sàn
5
999
Đã bán
2.235.883đ
1.366.373đ

Thép Không Gỉ Kim Loại Đục Lỗ Cho Trailer Sàn

5
999
Đã bán
2.235.883đ
1.366.373đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
1.366.373đ
9Rto6MhU4H
Mô tả sản phẩm
Nơi xuất xứ: Hebei, ChinaVật liệu: Thép không gỉ

Loại: Đục lướiỨng dụng: Sàng lọc, trang trí, chọn lọc, lọc, khô, làm mát, sạch sẽ, vv

Weave (US): Như của khách hàng yêu cầuKỹ thuật: Đục lỗ

Số Mô Hình: Kim loại đục lỗ lướiNhãn hiệu: QUNKUN

Product name: stainless steel perforated metal for trailer flooringHole size: According to customer's requirement

Sheet thickness: 0.3--25mmHole Shape: Round,Rectangular,Square,Triangle,Diamond,Hexagonal,Cross,Slotted

Sample: freeMaterial: Stainless Steel plate

Certification: ISO9001Color: white,black,blue,yellow

Technique: PerforatedAdvantages: High quality with good prices




stainless steel perforated metal for trailer flooring



Product Display

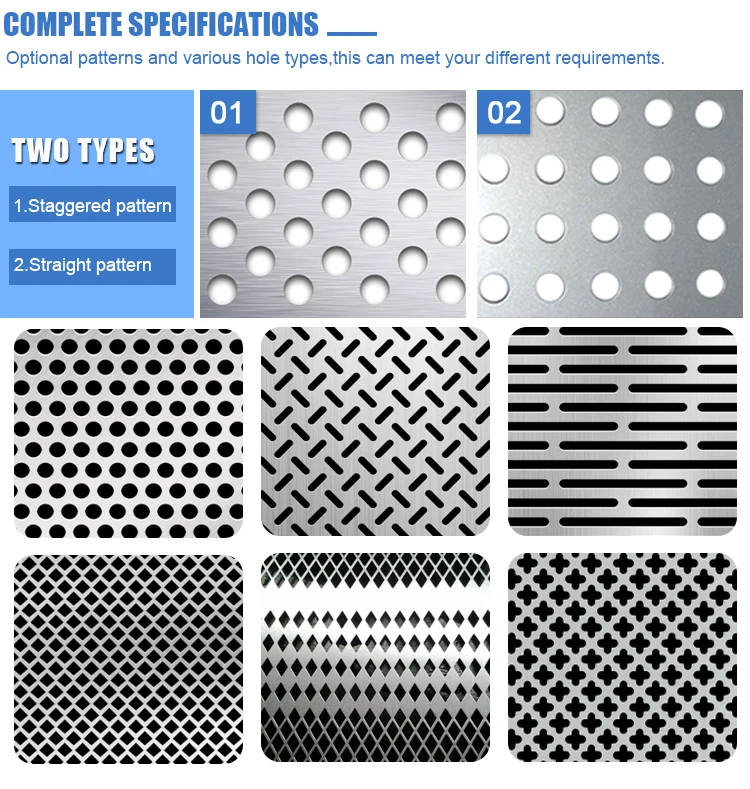

They are supplied in sheet and coil forms with various hole sizes and also cut to size as per customers&rsquo specific requirements.The round hole perforation is the most popular type of perforated pattern. Perforated metal is described by the hole size and the pitch. The pitch is the distance from the centre of one hole to the centre of the adjacent holes. All our perforated sheets are on a triangular pitch.



Specification List

ROUND HOLES STAGGERED PATTERN
HOLECENTERSGAUGE / PLATETHICK.OPEN AREA
.020" RD.045" Stag2618%
1/32" RD1/16" Stag2223%
3/64" RD5/64" Stag2433%
3/64" RD3/32" Stag22 thru 1823%
1/16" RD3/32"Stag22 thru 1640%
1/16" RD7/64" Stag20 thru 1630%
1/16" RD1/8" Stag26 thru 1623%
5/64" RD1/8" Stag22 thru 1435%
3/32" RD5/32" Stag24 thru 1433%
3/32" RD3/16" Stag2423%
.117 RD5/32" Stag1851%
1/8" RD3/16" Stag24 thru 1140%
1/8" RD7/32" Stag14 thru 1230%
1/8" RD1/4" Stag14, 1323%
9/64" RD3/16" Stag1851%
5/32" RD3/16" Stag22 thru 1663%
5/32" RD1/4" Stag20 thru 1035%
3/16" RD7/32" Stag22 thru 1667%
3/16" RD1/4" Stag24 thru 1251%
3/16" RD5/16" Stag10, 3/16"33%
3/16" RD3/8" Stag14 thru 1023%
1/4" RD5/16" Stag20 thru 1658%
1/4" RD3/8" Stag26 thru 1/4"40%
17/64" RD5/16" Stag2066%
5/16"RD7/16" Stag20 thru 1/4"46%
3/8" RD9/16" Stag20 thru 1/4"40%
1/2" RD11/16" Stag20 thru 1/4"48%
1/2" RD3/4" Stag1640%
5/8" RD7/8" Stag10 thru 1/4"46%
3/4" RD1" Stag16 thru 1/4"51%
1" RD1-3/8" Stag10 thru 1/4"48%
1-1/4" RD1-5/8" Stag1/4"54%
1-1/2" RD2" Stag1/4"51%
2" RD2-1/2" Stag1/4"58%
2-1/2" RD3" Stag3/16"63%
3" RD3-1/2" Stag3/16"67%
4" RD4-1/2" Stag1072%
Note: Special size and specifications can be made according to customers' requirements.



Why Choose Us

Packaging & Shipping

Application

Related products

Company Overview

FAQ

Q:What the mesh price depend on ?

A:Pricing for mesh depends on many factors,such as thickness,hole diameter,etc,If the specification is definite, then the price upon quantity required. Generally speaking, the quantity is larger ,the price is better. The most common way pricing is provided is by the square foot or square meter(depend on your routine).



Q:Can perforated sheet be formed after perforating?

A:Yes,of course ,my friend, we can shear and form perforated sheet to any specification needed.



Q:How about your quality control system?

A:Good question!we have our own quality inspect team ,6 inspect person included,they are responsible to operate the professional quality inspection machine such as :hole diameter detector,Tensile strength detector,Chemical material spectrometer,etc,we guarantee you the quality .



Q:If I want a sample ,what should I do ?

A:Sample is no problem for us ,you can tell us directly ,we are able to offer samples for items readily available from stock. If your samples for non-stock, custom manufactured, or items sold only in full 100FT rolls may not be available to purchase as a sample. This is unable to accept returns for sample orders.



Q:I can&rsquot buy that big quantity ,so how about your MOQ order?

A:We do our best to maintain one of the lowest minimum order amounts in the industry. Our low minimum order is ideal for research and development projects, prototypes and small quantity requirement.
