* This Portable CNC plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine,slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Trung Quốc CNC Plasma cắt máy cắt plasma Giá máy cắt 1530 Máy cắt plasma
640
Đã bán
22.830.750đ
20.294.000đ ~ 22.830.750đ
22.830.750đ
20.294.000đ ~ 22.830.750đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
20.294.000đ
irimXMcGmZ
Mô tả sản phẩm
Kích thước: JX-1530Loại động cơ: step motor
Điều kiện: MớiNơi xuất xứ: China
Nhãn hiệu: jiaxinĐiện áp: 220V/2P
Công suất: 180WKích thước (L * W * H): 28*350*23cm
Trọng lượng (KG): 120 KGNăm: newly
Bảo hành: 1 NămKey Điểm Bán Hàng: Tự Động
Áp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Nhà Máy sản xuất, Nhà Sử Dụng, Xây dựng làm việc, Công Ty quảng cáoPhòng Trưng Bày Trí: Không có
Tiếp Thị Loại: New ProductMáy Móc Báo Cáo Thử Nghiệm: Cung Cấp
Video Gọi Đi-Kiểm Tra: Cung CấpBảo Hành Của Core Thành Phần: 1 Năm
Core Thành Phần: Động Cơ, PLCAfter-sales Service Provided: Aluminum Cutting Machine
weight: 120kgvolage: 220v
certificate: ISO CEname: China cnc plasma cut machine
warrty: one yeartype: CNC Plasma Cutting Machine
Cutting mode: Factory direct portable digital control flamecolor: can make
model: JX-1530
Product Overview

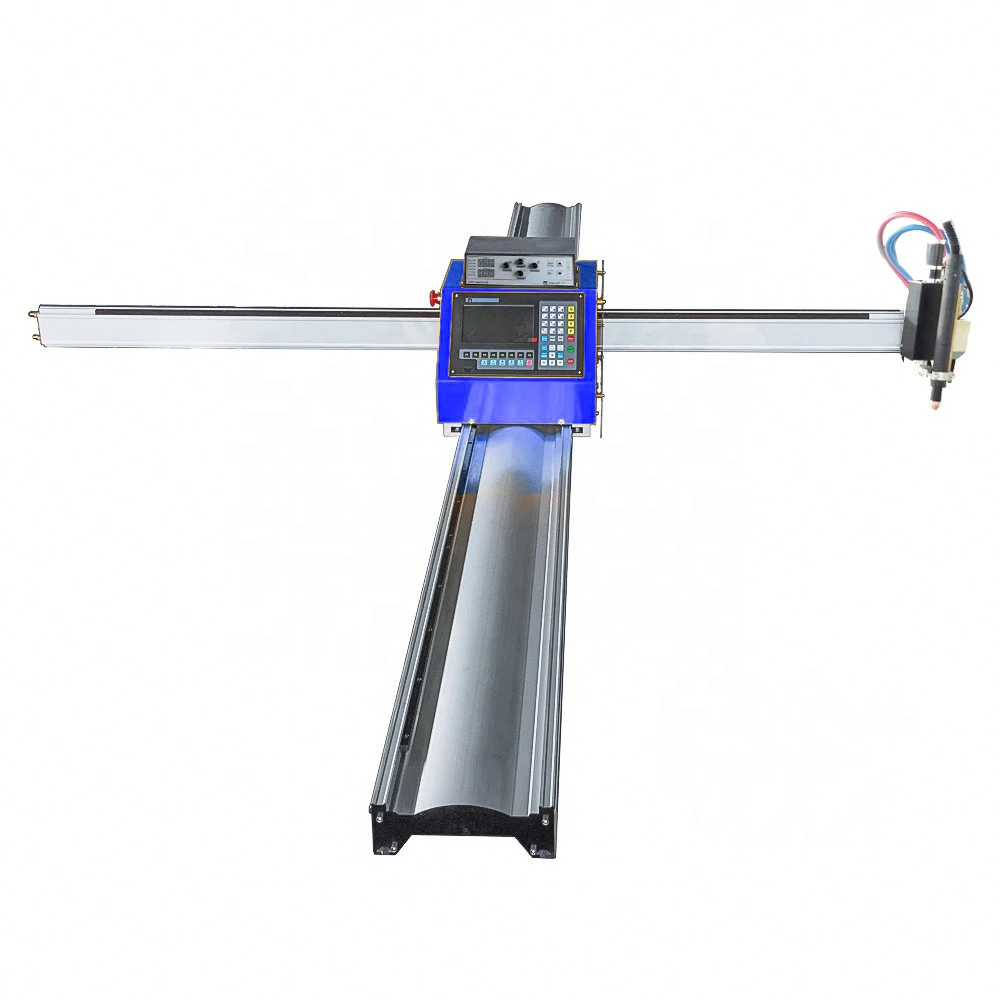

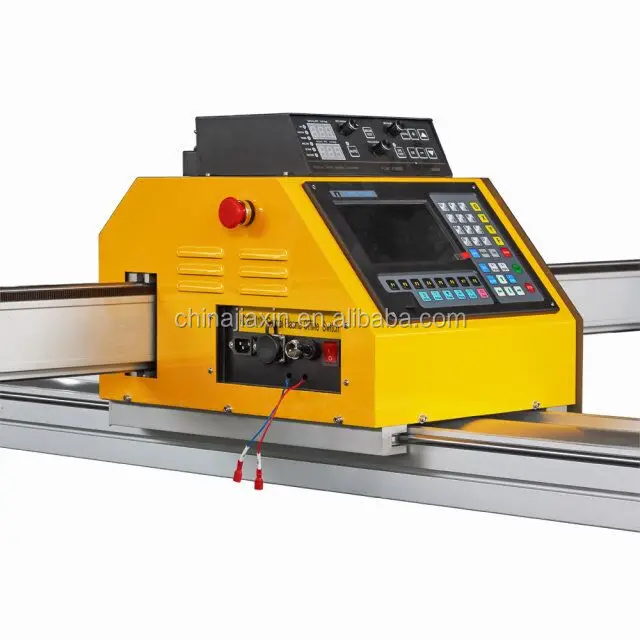

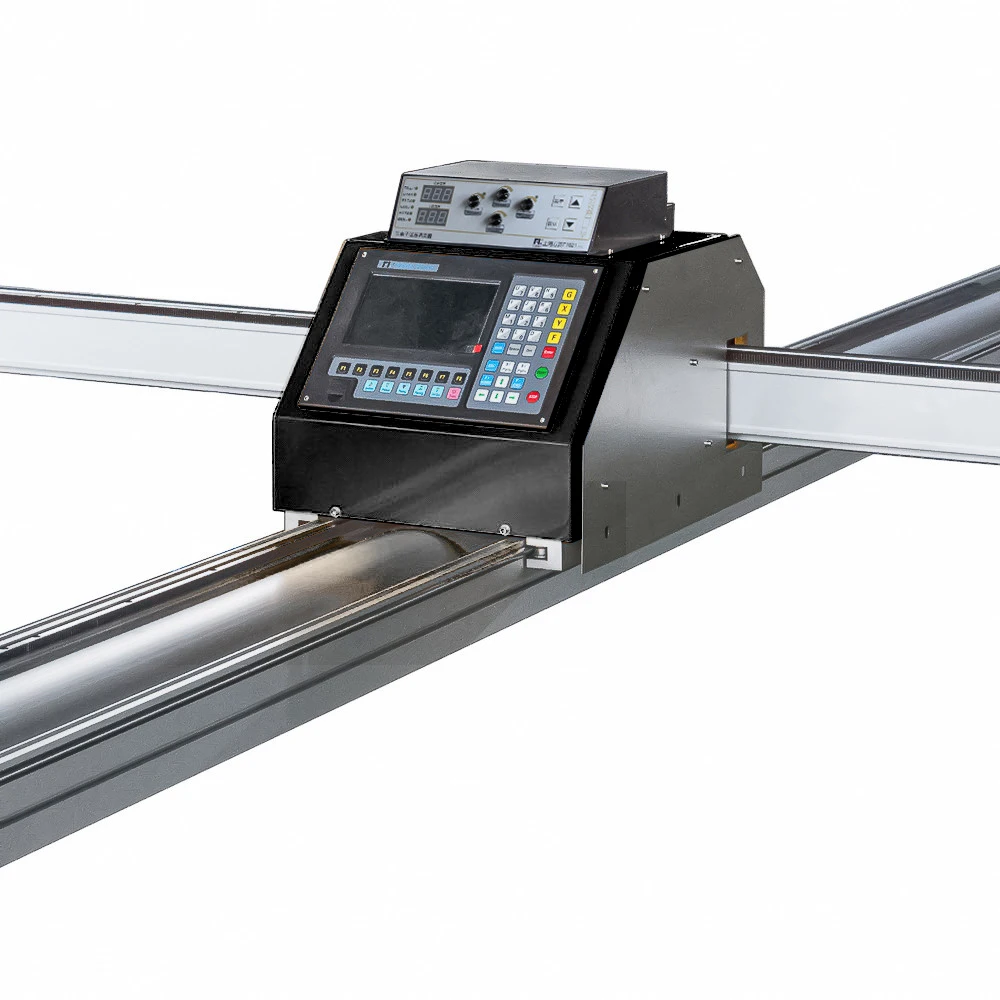

Portable CNC Plasma and Flame Cutting Machine
* This Portable CNC plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine,slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine,slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | JX-1530 | |
Effective cutting area | 1500*3000mm | |
Cutting speed (mm/min) | 50-4000(max. 4000) | |
Input power source Machine body | 380V±10% VAC,50/60HZ Three phase 220V±10%V AC, 50/60HZ Single phase | |
Flame cutting specification (for Oxy-fuel Cutting) | Max. tractive force | |
Flame Cutting thickness (mm) | 1-80 (Oxygen + acetylene or propane) | |
Torch height controller | flame, electric height adjustment(±60mm) | |
Flame cutting gas | Oxygen+ propane or acetylene | |
Cutting torch | One piece flame cutting torch | |
Plasma cutting specification (for Plasma Cutting) | ||
Plasma Cutting thickness (mm) | 0-30mm (according to plasma power source) | |

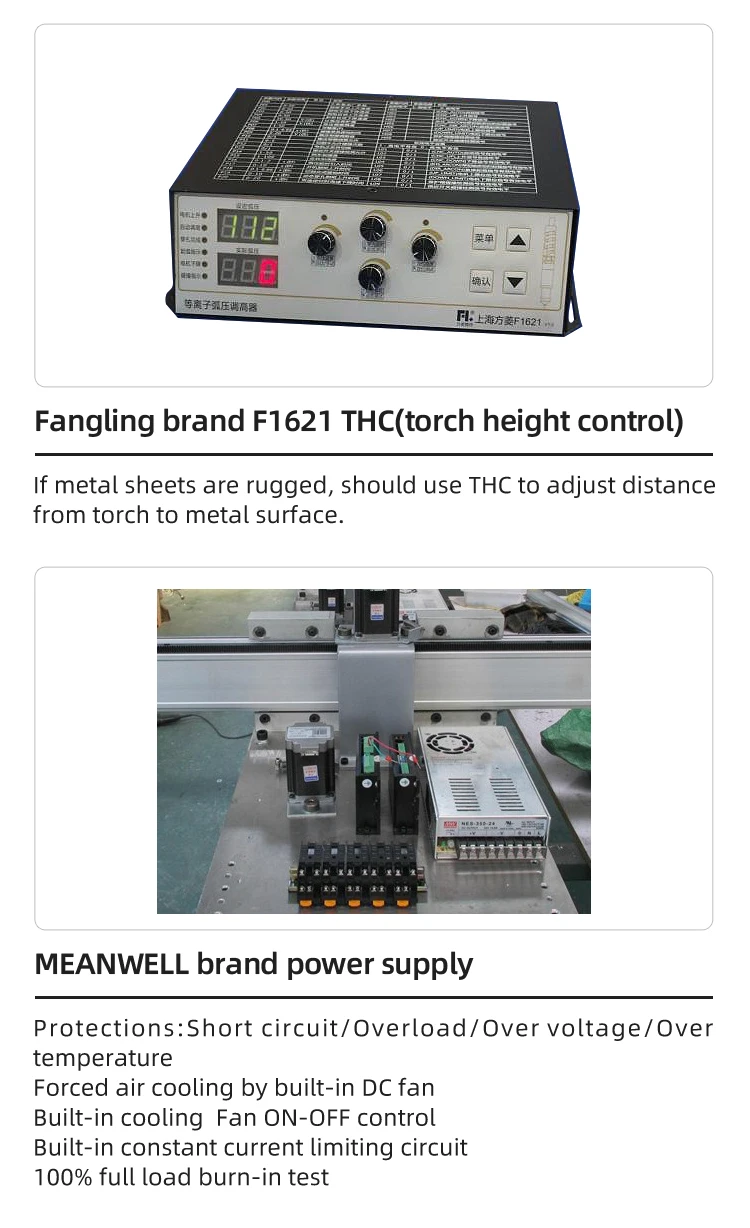

Torch height controller | Plasma, Arc voltage height(THC) | |
Plasma cutting gas | compressed air | |
Cutting torch | 8m fine plasma torch | |

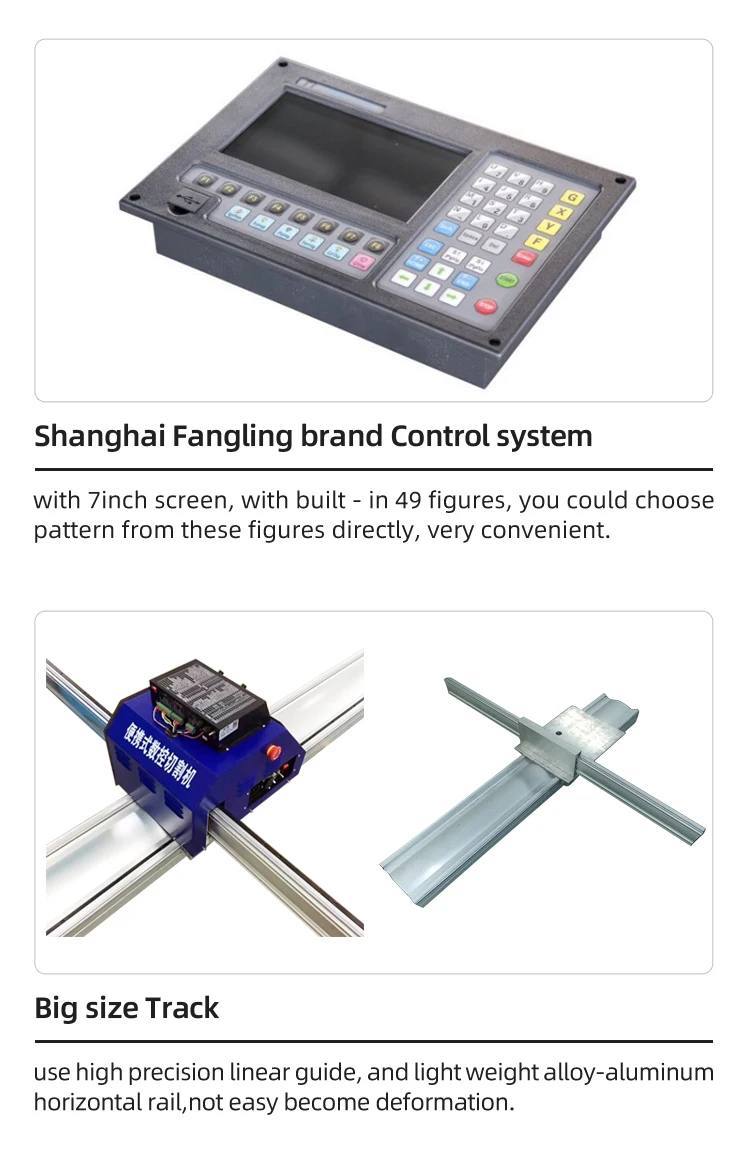

CNC controller system | FL2100B | |
Motor | Stepper motor | |
Operation precision | ±0.2mm/m | |
Guide length ×guide width ×guide thickness (mm) | 3500×273×60 | |
Nesting software | FASTCAM | |
Gas pressure (Mpa) | ±0.5 | |
Cutting tool Conversion Kit | Flame cutting and plasma cutting can change easily. Flame cutting machine add power source, ARC, plasma torch to change into plasma cutting machine | |

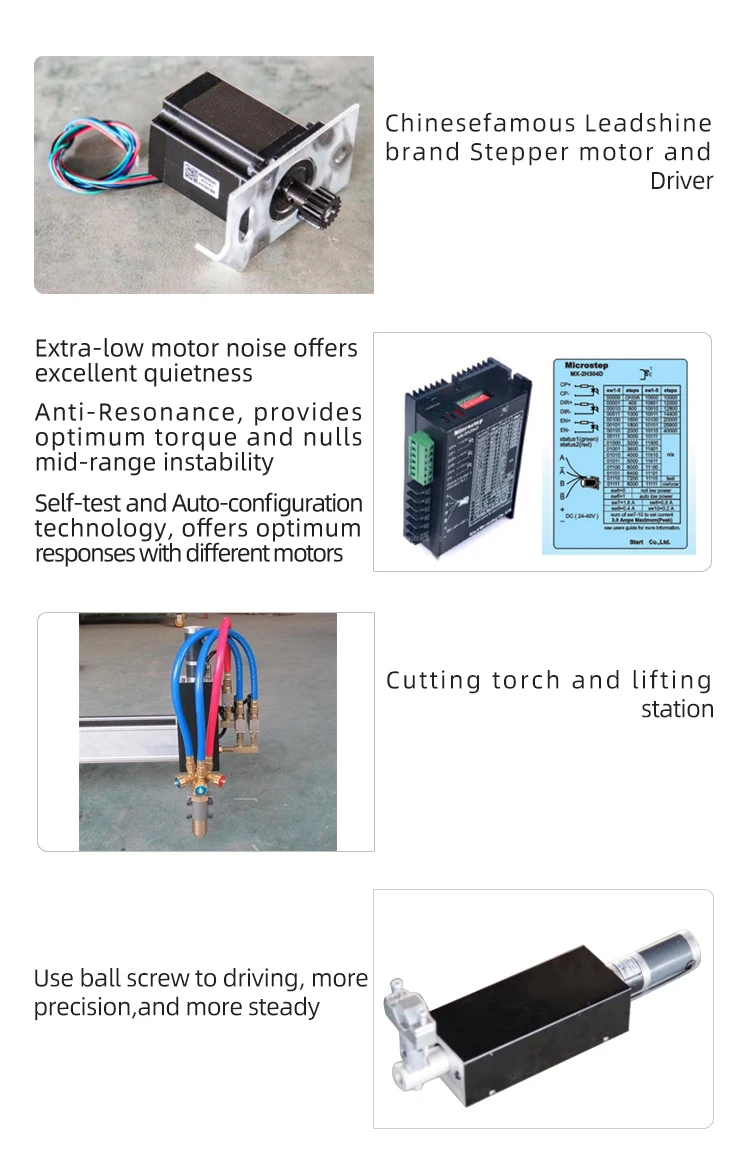

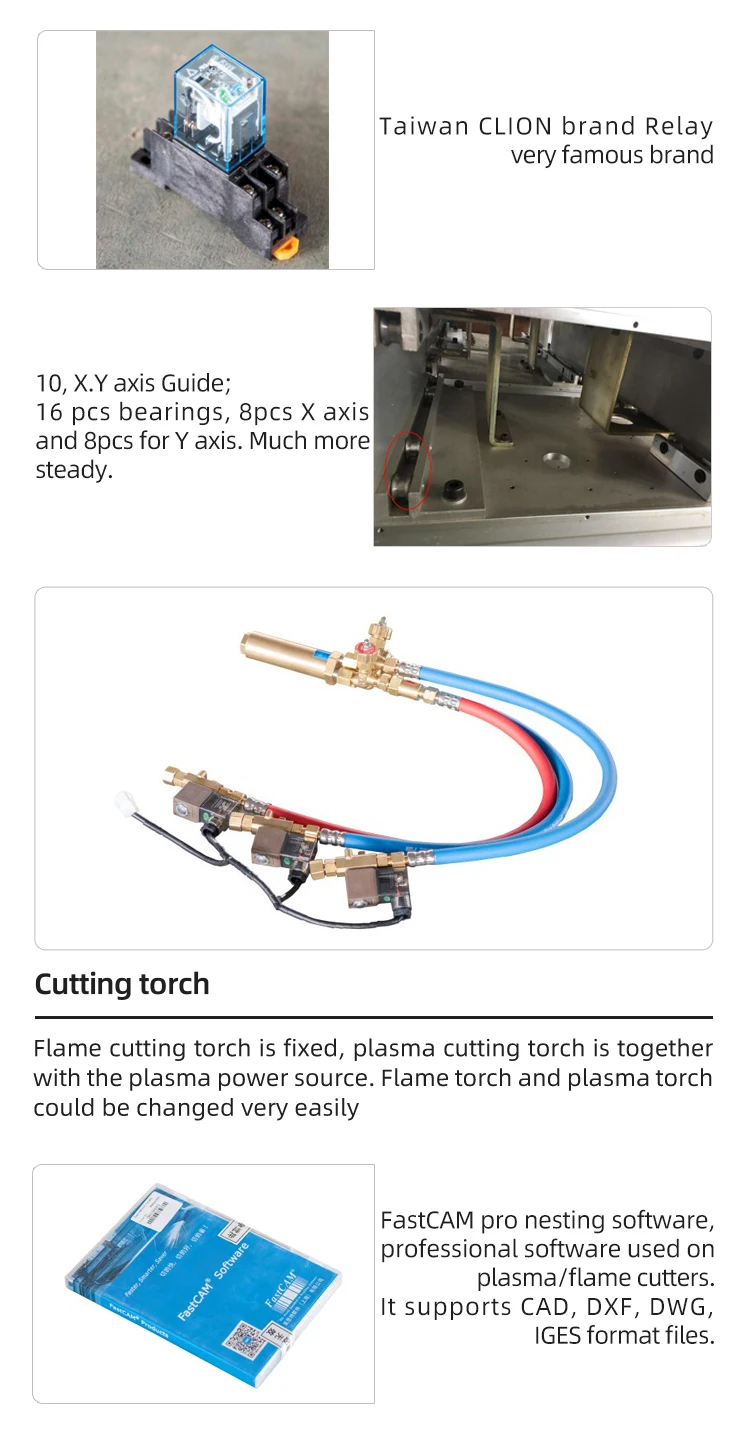

PRODUCT CONFIGURATION

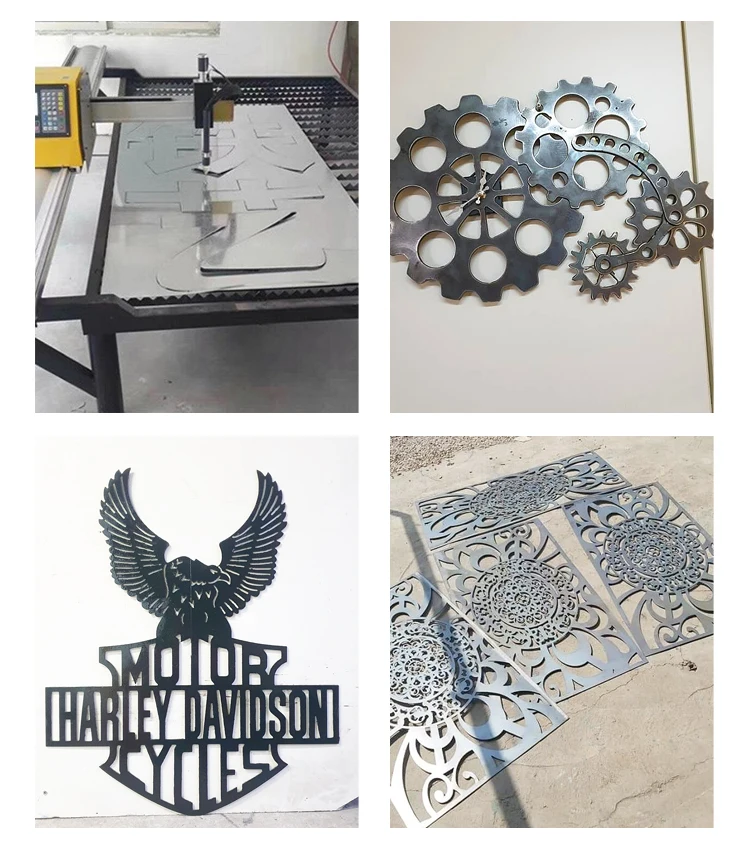

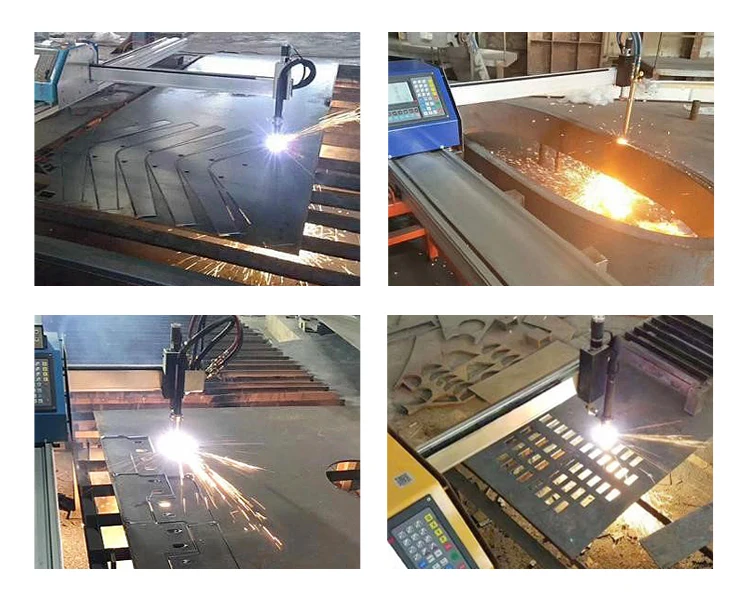

cutting example

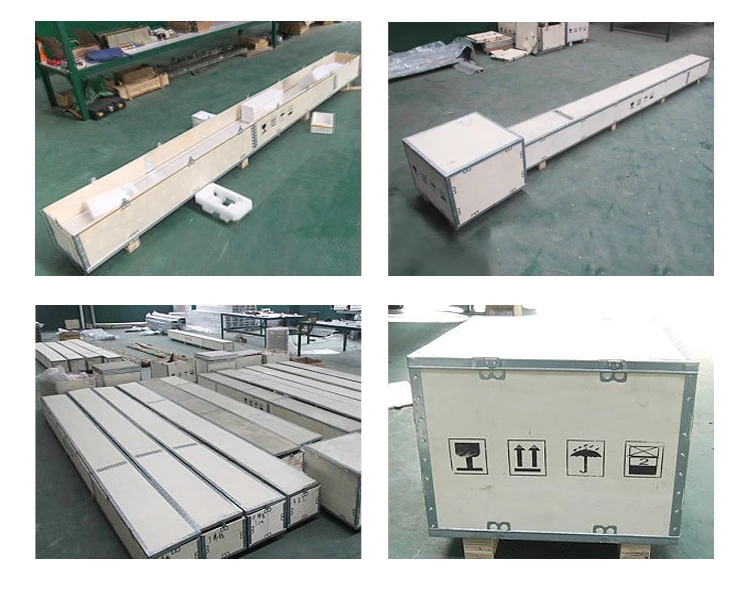

Product packaging
FAQ
1. Where is your factory located? How can I visit there?
Our factory is located in Jining City, Shandong Province, China. You can visit us by air to Qufu airport, or by the high-speed
rail. All the customers, from home or abroad, are warmly welcome to visit us!
2. What's the quality of your products?
We are very focused on the quality of the products, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours.Our factory has gained CE, ISO9001 authentication.
3. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
4. What other things also need after we bought your machines?
(1) With flame cutting: oxygen and acetylene or propane
(2) With plasma cutting: air compressor. Plasma power is purchased by us, so that we can debug online, and we all need very good plasma power to ensure quality.
5. What are your payment terms?
We support T/T, L/C and so on. Other ways can also be received after we both sides discussion and agreement.
6. All products have a warranty?
YES, Our warranty term is One Year.
Our factory is located in Jining City, Shandong Province, China. You can visit us by air to Qufu airport, or by the high-speed
rail. All the customers, from home or abroad, are warmly welcome to visit us!
2. What's the quality of your products?
We are very focused on the quality of the products, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours.Our factory has gained CE, ISO9001 authentication.
3. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
4. What other things also need after we bought your machines?
(1) With flame cutting: oxygen and acetylene or propane
(2) With plasma cutting: air compressor. Plasma power is purchased by us, so that we can debug online, and we all need very good plasma power to ensure quality.
5. What are your payment terms?
We support T/T, L/C and so on. Other ways can also be received after we both sides discussion and agreement.
6. All products have a warranty?
YES, Our warranty term is One Year.
