Nơi xuất xứ: Henan, ChinaNhãn hiệu: BEDO
Điều kiện: MớiVideo Gọi Đi-Kiểm Tra: Cung Cấp
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpTiếp Thị Loại: Sản Phẩm Mới 2020
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ, Động Cơ
Điện áp: 380VCông suất (HP): 30KW
Kích thước (L * W * H): According to different modelsBảo hành: 1 year
Key Điểm Bán Hàng: Đa chức năngÁp dụng Các Ngành Công Nghiệp: Xây dựng làm việc
Phòng Trưng Bày Trí: Mexico, NigeriaTrọng lượng (KG): 540
Name: hammer mill wood cardboard hammer mill on sale for africaPower(kw): 30
The number of hammer blades: 40Weight(kg): 650
Output size: 3-5 mmWarranty: One year
Service: GoodAfter Warranty Service: Video technical support
Certification: ISO9001 CEUsage: Sawdust Crushing Machine
China Biomass Screen Wood Mill/Crusher Machine 4 Inch Sawdust Charcoal Pulverizer Hammer Mill Breaker
Products Description
This hammer crusher/hammer mill can crush all kinds of feed, such as maize, sorghum, blighted grain, rice straw, wheat straw, sweet potato vine, cornstalk, peanut vine, corncob, bean stalk and hay,and it can also crush wood chips,charcoal. This hammer mill has simple structure, operating conveniently, easily maintenance, it can be used for farm, animal farm factory and village specialist household.
This hammer mill/hammer crusher is made up by inlet, up and down rack, rotor, sieve, transport pipe and other parts. The raw material feed into inlet, then into mill room, mill by high speed hammer. The raw material is driven by airflow, along with the edge of rotor, crashed and knocked by the hammer, toothed plate and sieves, quickly milled. The powder suffered by rotor centrifugal pressure and fan suction rapidly pass sieve into storage bag or storehouse.
Specifications
Model | Power (kw) | Capacity (kg/h) | The number of hammer pieces(pcs) | The size of hammer pieces(mm) | Packing Size (mm) | Weight (kg) |
BD-CP500 | 22 | 700-1000 | 30 | 180*60*8 | 2100*1260*980 | 540 |
BD-CP600 | 30 | 1200-1500 | 40 | 180*60*8 | 2000*1400*1200 | 650 |
BD-CP800 | 45 | 2000-2500 | 60 | 180*60*8 | 2200*1500*1250 | 820 |
BD-CP1000 | 75 | 3000-3500 | 70 | 180*60*8 | 2200*1650*1300 | 1300 |
BD-CP1300 | 45+45 | 4000-5000 | 90 | 230*60*8 | 2300*1700*1400 | 2400 |
BD-CP1500 | 55+55 | 5000-6000 | 100 | 230*60*8 | 2300*1750*1420 | 2800 |

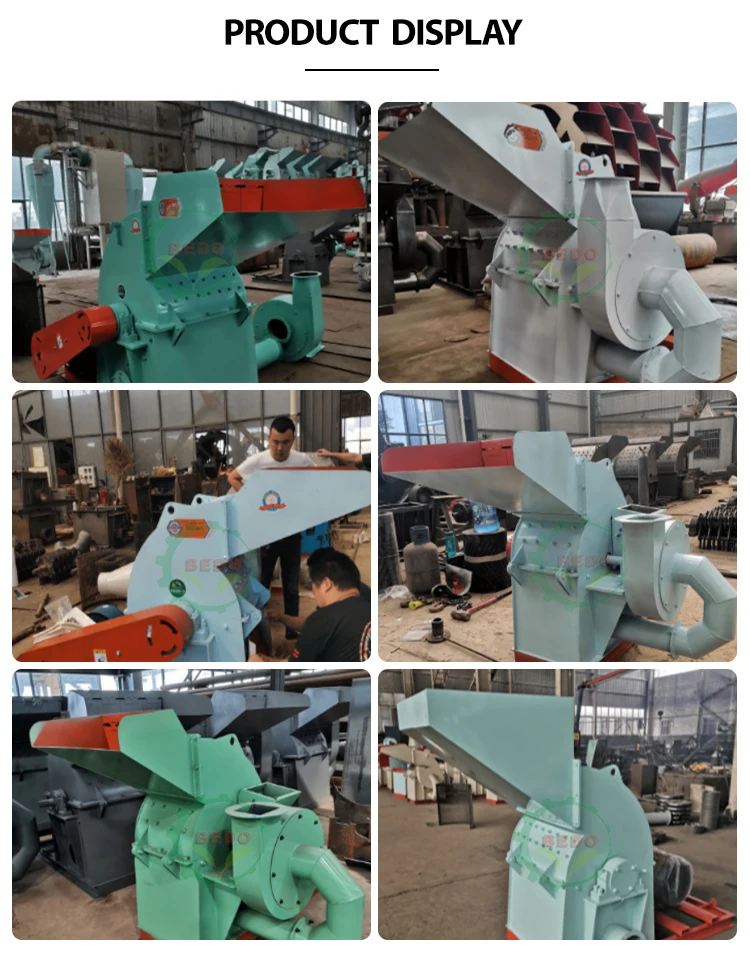

Details Images
Hammer crusher is composed of feeding hopper,upper and lower body, rotor, screen, feeding tube and other parts. Users can be equipped with storage bags or silos according to their own needs. After the material enters the crushing chamber from the hopper, it is broken by the high-speed rotating hammer.
Under the air flow, the broken material along the outer edge of the rotor, continuous and hammer, tooth plate, screen,
collision,rub and be quickly crushed. The pulverized powder particles are quickly transported to the storage bag or bin through the sieve by centrifugal pressure of the rotor and suction force of the fan.
Under the air flow, the broken material along the outer edge of the rotor, continuous and hammer, tooth plate, screen,
collision,rub and be quickly crushed. The pulverized powder particles are quickly transported to the storage bag or bin through the sieve by centrifugal pressure of the rotor and suction force of the fan.
Raw Materials and Final Production

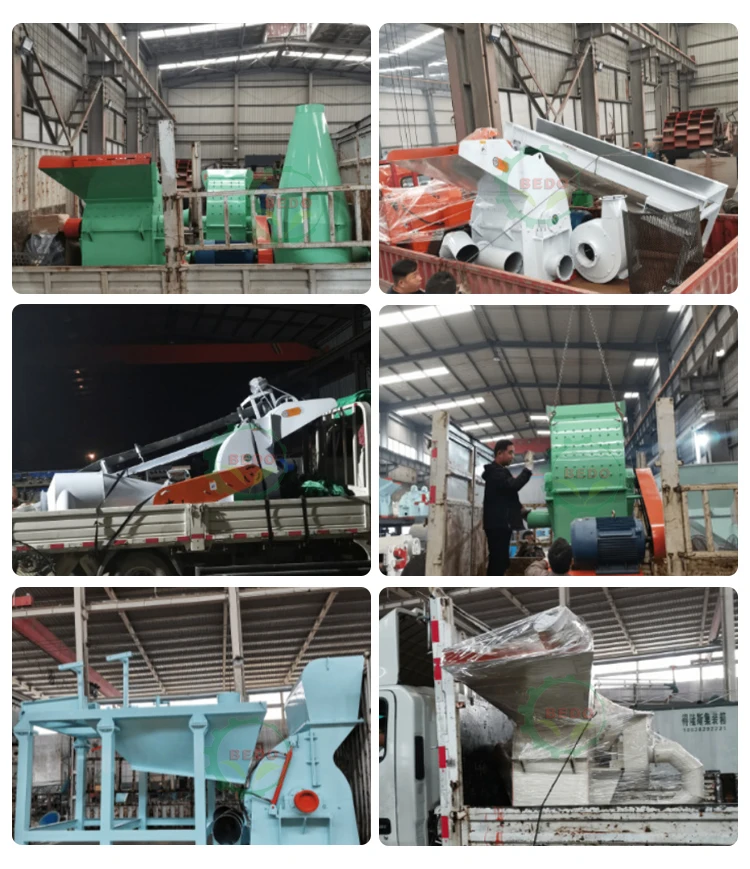

Packing&Shipping
Payment term
1. Payment: T/T, Western Union 50% TT payment in advance, 50% TT pay the balance before delivery.
2. Warranty: 12 months for the main machine, 6 months for the parts.
3. Delivery time: Within 7-10 days for single machine after getting the down payment
1. Payment: T/T, Western Union 50% TT payment in advance, 50% TT pay the balance before delivery.
2. Warranty: 12 months for the main machine, 6 months for the parts.
3. Delivery time: Within 7-10 days for single machine after getting the down payment
25-35 days for the whole production line after getting the down payment.
