Trung Tâm Uốn Cốt Thép/Máy Uốn Thẳng Từ 10Mm Đến 32Mm
Trung Tâm Uốn Cốt Thép/Máy Uốn Thẳng Từ 10Mm Đến 32Mm
Trung Tâm Uốn Cốt Thép/Máy Uốn Thẳng Từ 10Mm Đến 32Mm
5
999
Đã bán
1.141.537.500đ
837.127.500đ ~ 1.141.537.500đ
Yêu thích
Trung Tâm Uốn Cốt Thép/Máy Uốn Thẳng Từ 10Mm Đến 32Mm
5
999
Đã bán
1.141.537.500đ
837.127.500đ ~ 1.141.537.500đ
Nơi xuất xứ: Shandong, ChinaNhãn hiệu: Jiaxin
Điều kiện: MớiVideo Gọi Đi-Kiểm Tra: Cung Cấp
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpTiếp Thị Loại: Thông Thường Sản Phẩm
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ
Vật liệu / kim loại chế biến: Thép cây/dâyTự động hóa: Tự Động
Năm: 2020Trọng lượng (KG): 5500
Key Điểm Bán Hàng: Dài Dịch Vụ Cuộc SốngBảo hành: 1 Năm
Động cơ Công Suất (kW): 14Áp dụng Các Ngành Công Nghiệp: Nhà Máy sản xuất, Xây dựng làm việc, Vật Liệu xây dựng Cửa Hàng
Phòng Trưng Bày Trí: Thái LanTên sản phẩm: Trung tâm uốn hai đầu
Mô hình: G2l32Vật liệu uốn: Thanh dây Carbon
Chức năng: Thanh thép uốnĐiện áp: 380V/50Hz/3pha
Tốc độ uốn: 0.5-1(m/s)Góc uốn: -120-180 °
Đường kính uốn: 10-32 m mĐộ chính xác Chiều dài: ± 2m m
Product Overview

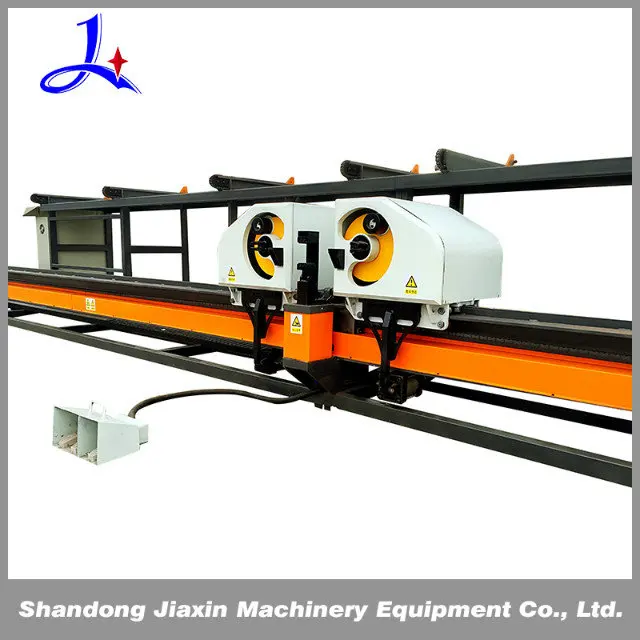

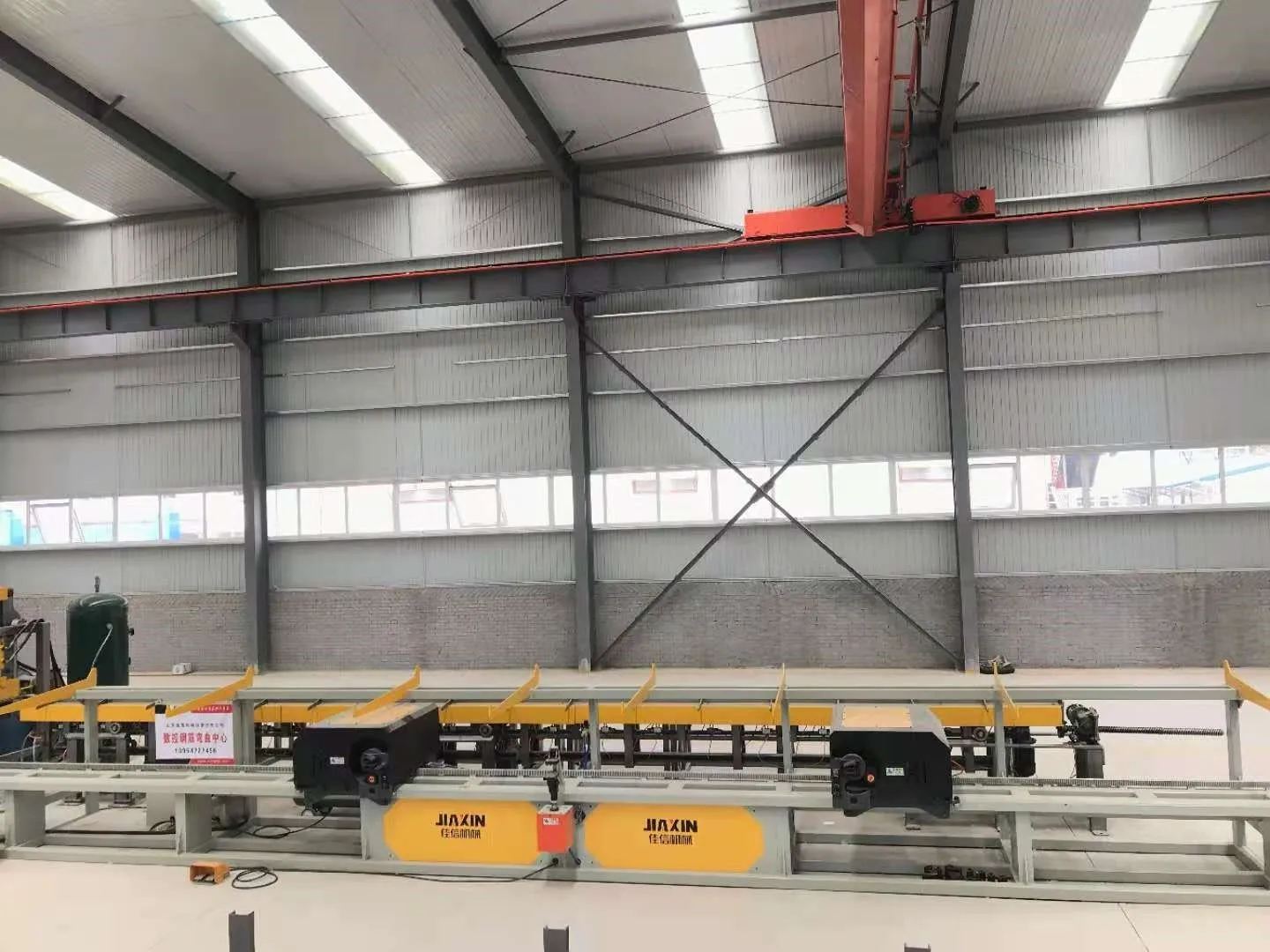

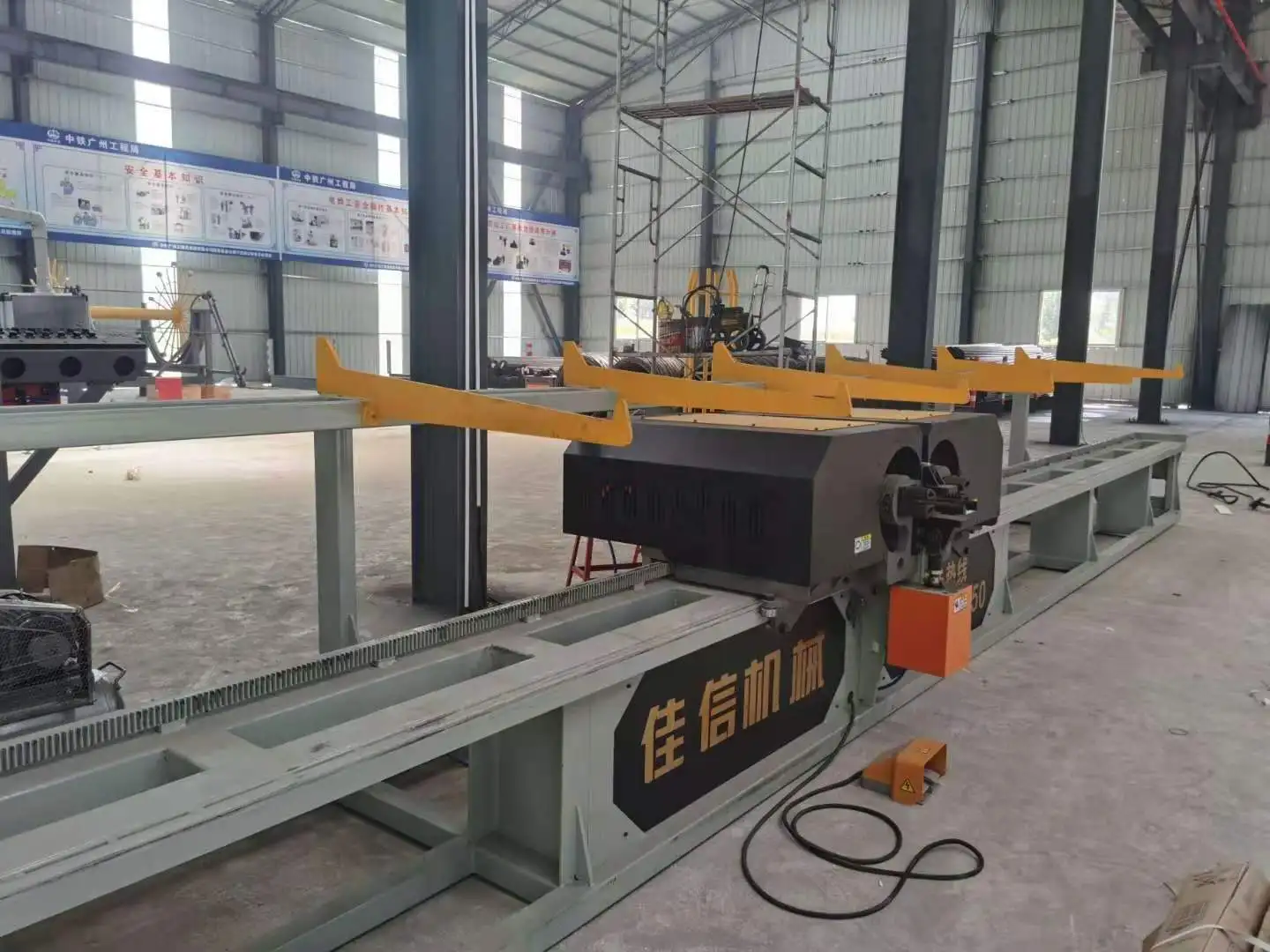

Double head bending center G2L32
Detailed specifications
1, imported PLC and CNC control system controller with touchscreen interface,
could save hundreds graphics.
2, easy to operate, could bend more angles within one rebar loop.
3, locking reinforcement bar flexible,to make sure bending precision.
4, bending panel is wear-resisting,by heat treatment, have longer working life.
5, bending spindle controlled by servo system, will provide high bending accuracy.
6, this machine could set bending length easily by moving bending spindle.
7, whole machine is integrated, high quality moving track.
8, retractable bending axle realize both-way bending.
9, Use heavy loading auto-feeding shelf for large batch materials.
10, high working efficiency, could bending many bars at same time.
11, could process 5500pcs steel bars at one day, working efficiency is 10times compare with traditional equipment.could instead of 12 workers.
12, bending reinforcement bars &phi10mm to &phi32mm with high precision, low labor cost.
1, imported PLC and CNC control system controller with touchscreen interface,
could save hundreds graphics.
2, easy to operate, could bend more angles within one rebar loop.
3, locking reinforcement bar flexible,to make sure bending precision.
4, bending panel is wear-resisting,by heat treatment, have longer working life.
5, bending spindle controlled by servo system, will provide high bending accuracy.
6, this machine could set bending length easily by moving bending spindle.
7, whole machine is integrated, high quality moving track.
8, retractable bending axle realize both-way bending.
9, Use heavy loading auto-feeding shelf for large batch materials.
10, high working efficiency, could bending many bars at same time.
11, could process 5500pcs steel bars at one day, working efficiency is 10times compare with traditional equipment.could instead of 12 workers.
12, bending reinforcement bars &phi10mm to &phi32mm with high precision, low labor cost.
FEATURES AT A GLANCE
Right elevation
Left elevation

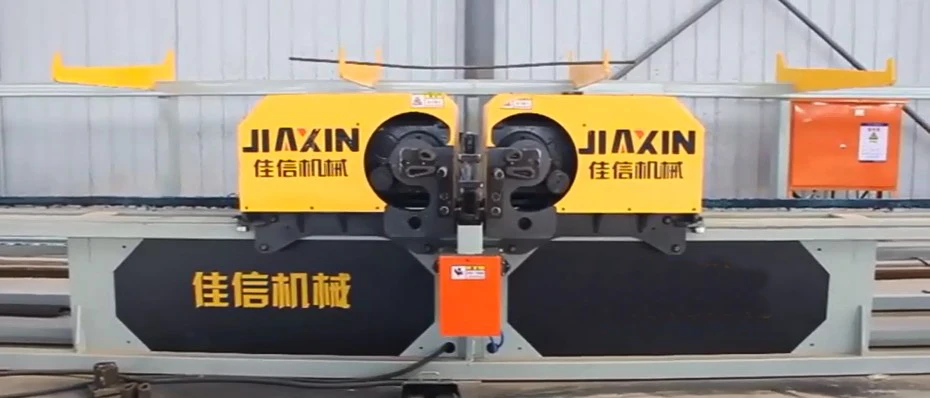

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Machine dimension | 12500mm(L)*1600mm(W)*1600mm(H) | ||
2 | Max. bending angle(°) | Up bending angle(°) | 180 | |
3 | Operating weight | Down bending angle(°) | -120 | |
3 | Max. Length scope of the stirrup side | 10000mm | ||
4 | Min. Length scope of the stirrup side | 90mm | ||
5 | Min. Space between stirrup side | (&phi10),(520mm) | ||
6 | Engine displacement | (&phi32),(580mm) | ||
6 | Length precision | ±2mm | ||
7 | Angle precision | ±0.5mm | ||
8 | Method to change bending speed | Control by international brand CNC servo motor | ||
9 | Total power rating | 14kw | ||
10 | Voltage | 380V-3phase /50hz | ||
11 | Moving speed of bending head | 0.5-1(m/s) | ||
12 | Air route pressure | 0.6 Mpa | ||
13 | Total weight | 5500kg | ||
PRODUCT CONFIGURATION

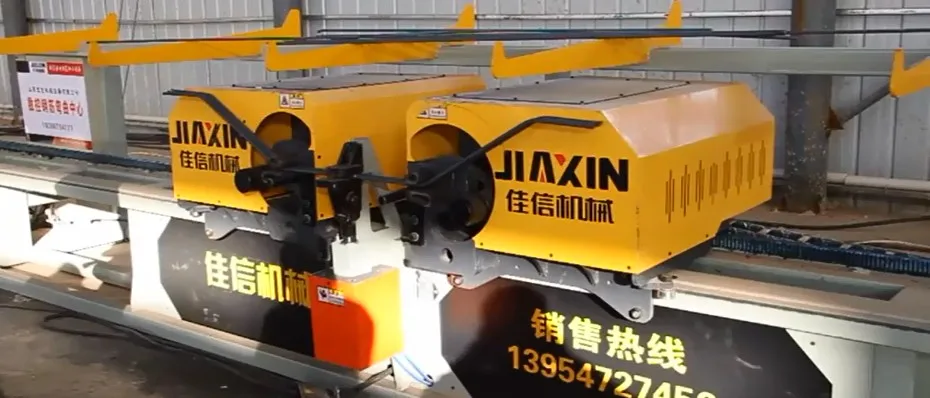

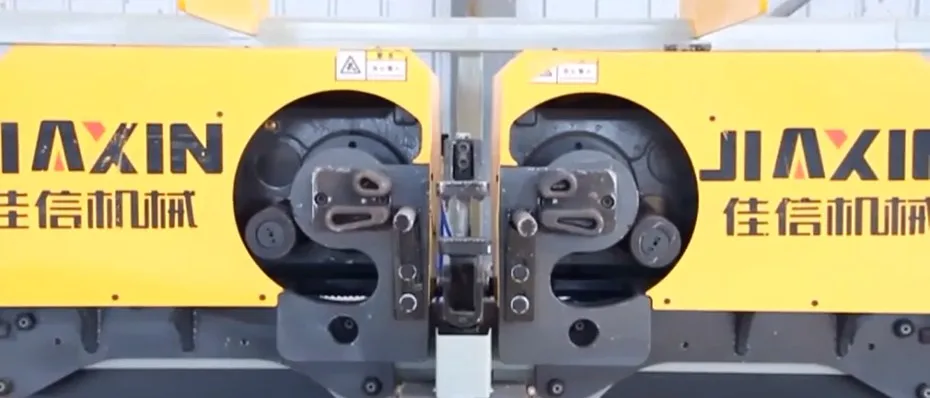

Bending shaft

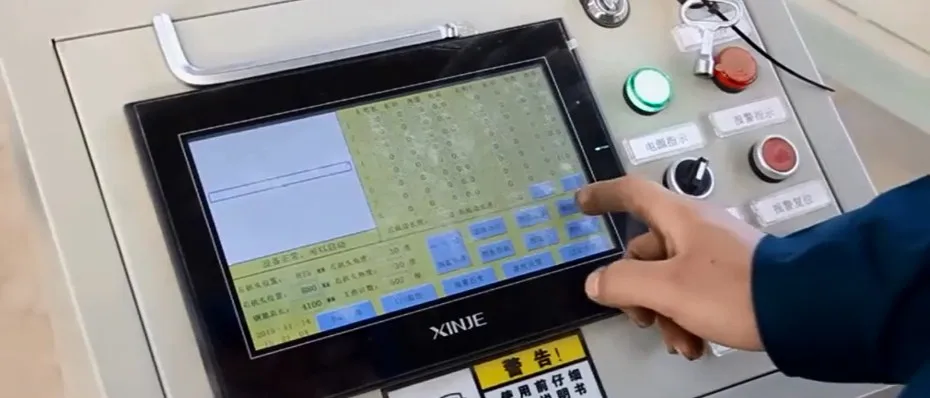

Operation interface
Reclaimer

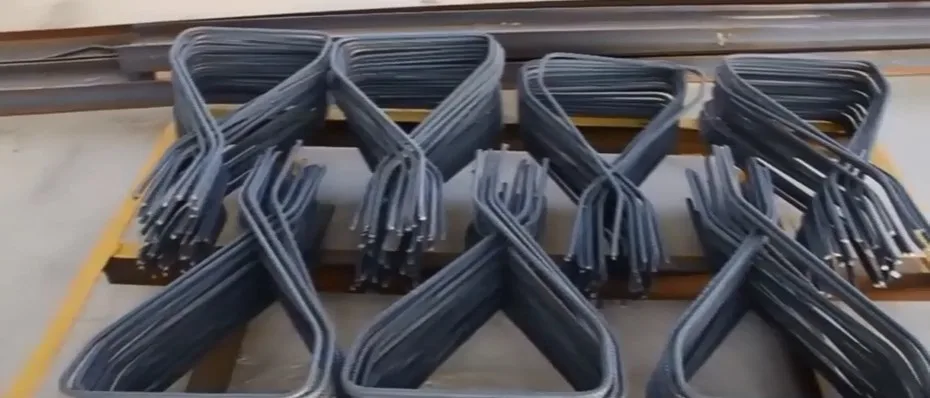

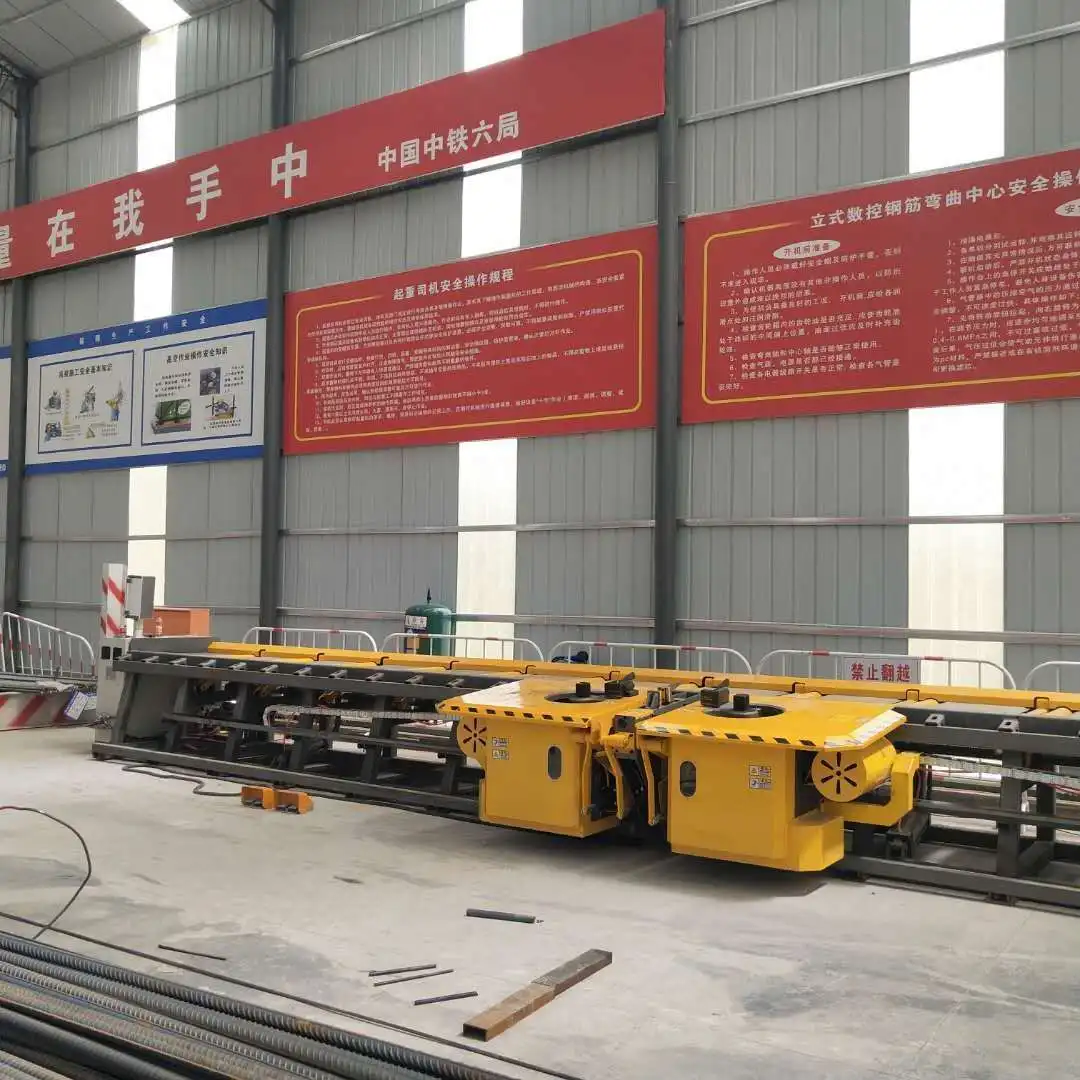

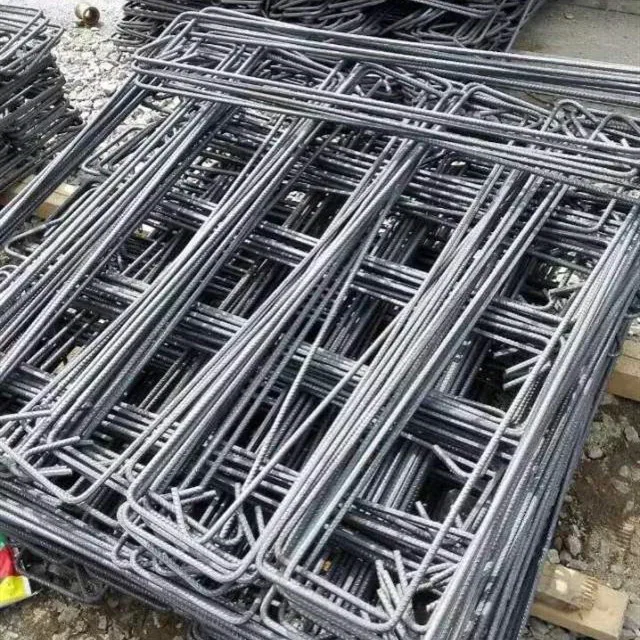

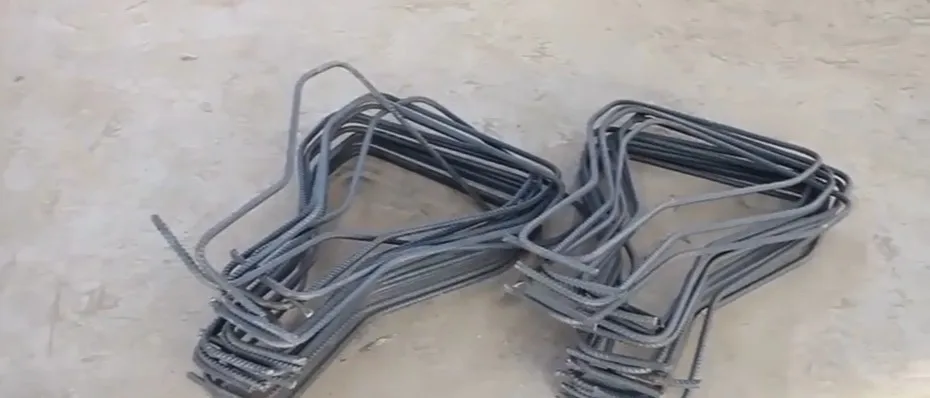

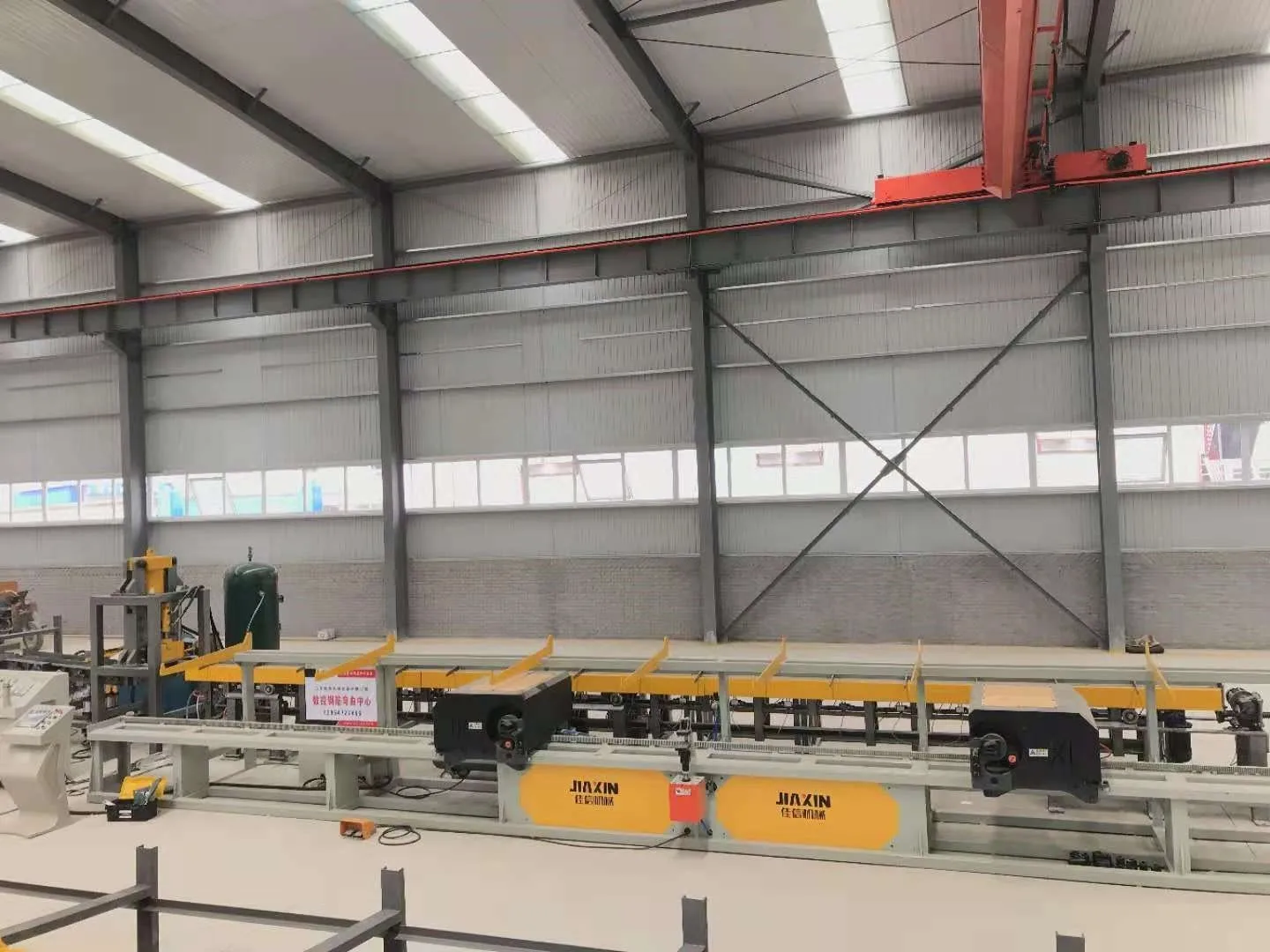

Working pictures
Exhibition
SIMILAR PRODUCTS
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q：Can you do OEM?
A:Yes,we can do OEM products.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
