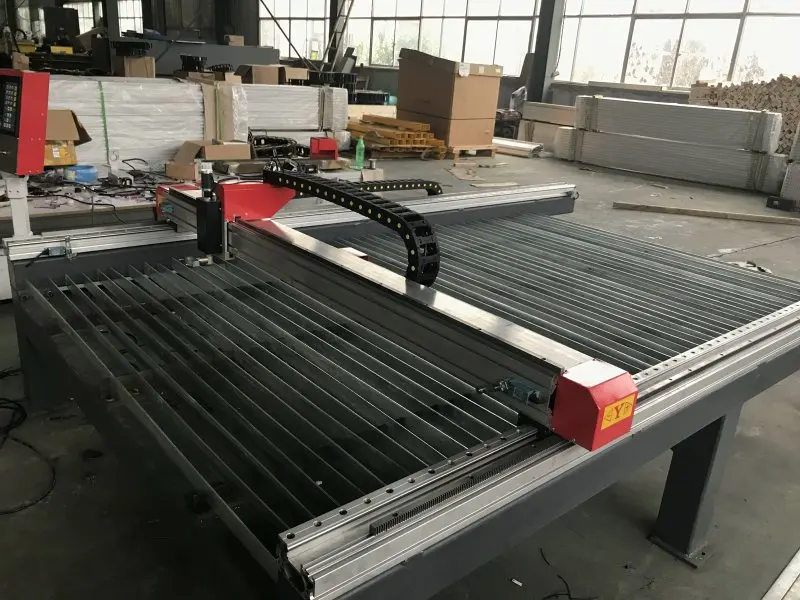

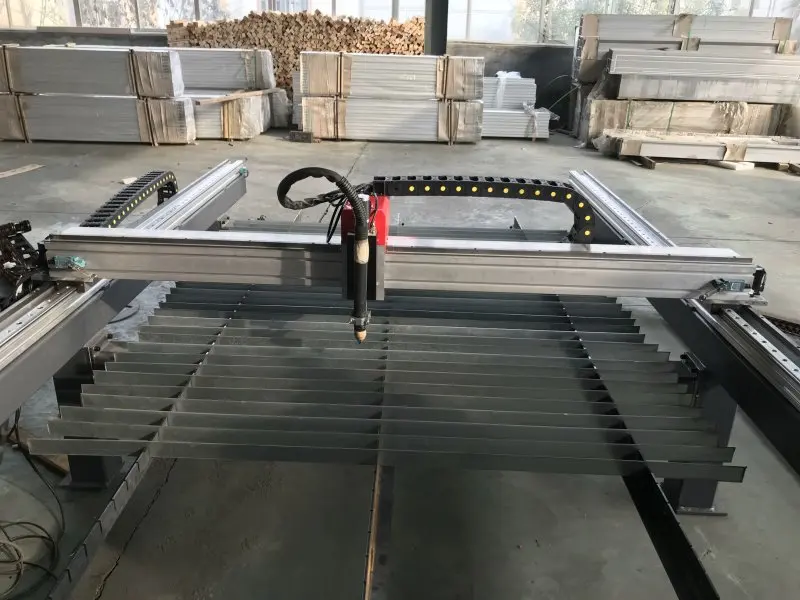

JX-1530 CNC plasma cutting table was designed as a entry level plasma cutting machine to help you start your plasma cutting business quickly. It is a compact but robust machine which with well-know china CNC controller and HAVC device. Equipped with removable device table and easily to install.
It is very easy to install and use by yourself, simple structure and good price .Which is good to finish flowing jobs of
1 Metal Plate CNC Plasma Cutting
2 Steel Structure Fabricating CNC Plasma Cutting

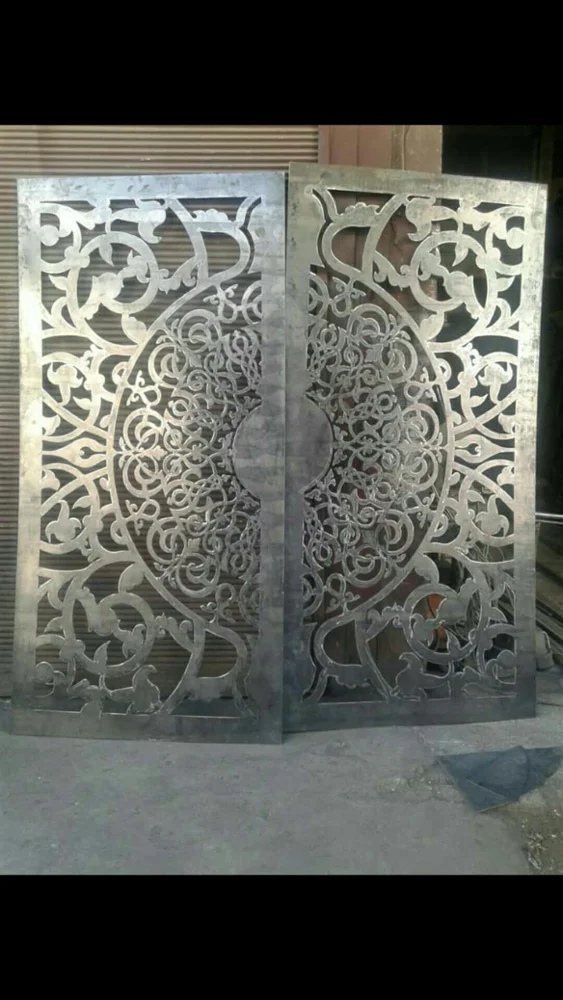

3 Metal Door Pattern Plasma cutting
4 Metal Plate decoration pattern job
Specification of Nanocut-5100 | |||
Model | JX-1530 | ||
Cutting Area | 1500*3000mm/5'*10' | ||
Plasma Torch | 1 Torch | ||
Cutting Thickness(mm) | 1-28 | ||
Stepper Motors | servo Panasonal | ||
Max Speed | 6000mm/min | ||
Liner Guide | LGD12B- LF TAIWAN | ||

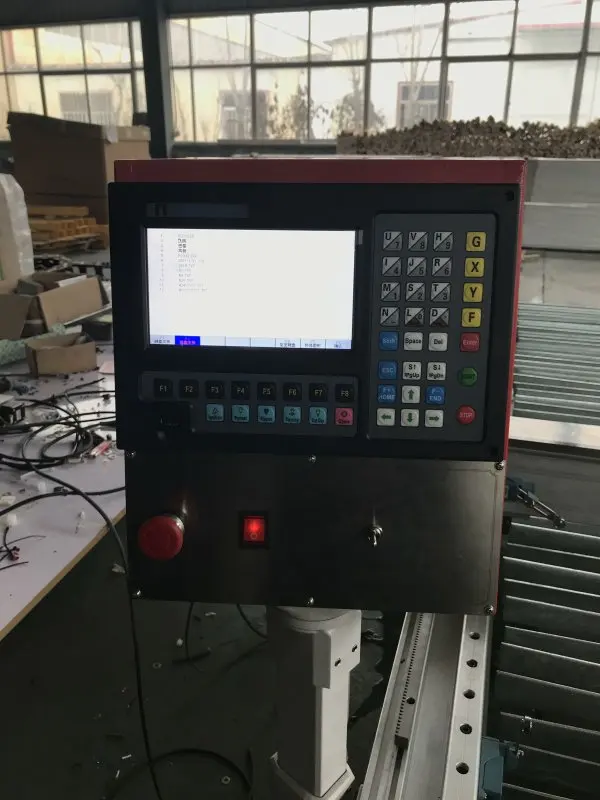

Controller | SH-2012AH-StarFire-China | ||

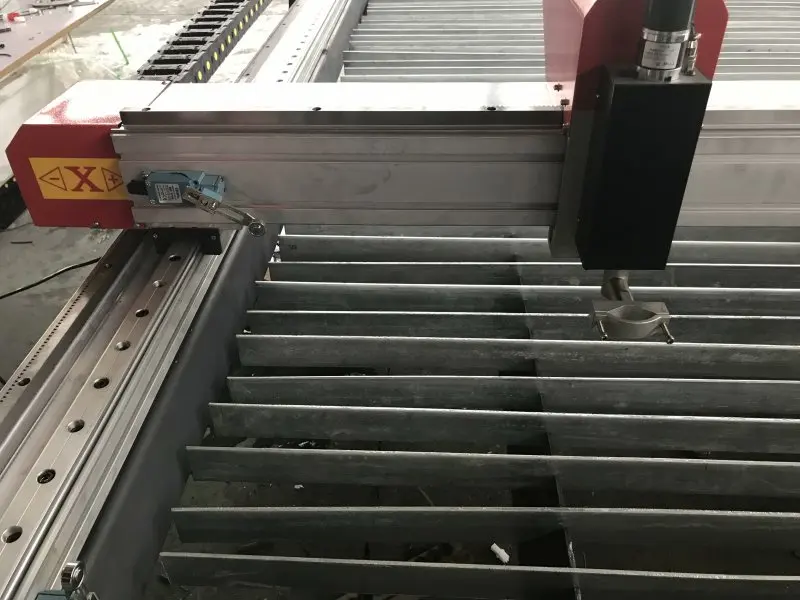

Torch Height Control | HAVC/plasma arc voltage sensor | ||
Accuracy | ±0.5mm | ||
Input Power | AC 380/220V±10%/50Hz | ||
Table Structure | Detachable Cutting Table | ||
Machine Foot Print(mm) | 2200*3800*1350(W*L*H) | ||
Net Weight(Kg) | 550 | ||
Order Code | JX-1530 portable table | ||
Cutting update:
Main Features
1) Simple structure,easy in installation and use
2) HAVC auto control torch height sensor keep good cutting quality
3) Servo motor very fast moving speed
4) Detachable Cutting Tableincluding
JX-1530 CNC plasma cutting table was designed as a entry level plasma cutting machine to help you start your plasma cutting business quickly. It is a compact but robust machine which with well-know china CNC controller and HAVC device. Equipped with removable device table and easily to install.
It is very easy to install and use by yourself, simple structure and good price .Which is good to finish flowing jobs of
1 Metal Plate CNC Plasma Cutting
2 Steel Structure Fabricating CNC Plasma Cutting
3 Metal Door Pattern Plasma cutting
4 Metal Plate decoration pattern job
Specification of Nanocut-5100 | |||
Model | JX-1530 | ||
Cutting Area | 1500*3000mm/5'*10' | ||
Plasma Torch | 1 Torch | ||
Cutting Thickness(mm) | 1-28 | ||
Stepper Motors | servo Panasonal | ||
Max Speed | 6000mm/min | ||
Liner Guide | LGD12B- LF TAIWAN | ||
Controller | SH-2012AH-StarFire-China | ||
Torch Height Control | HAVC/plasma arc voltage sensor | ||
Accuracy | ±0.5mm | ||
Input Power | AC 380/220V±10%/50Hz | ||
Table Structure | Detachable Cutting Table | ||
Machine Foot Print(mm) | 2200*3800*1350(W*L*H) | ||
Net Weight(Kg) | 550 | ||
Order Code | JX-1530 portable table | ||
Cutting update:
Main Features
1) Simple structure,easy in installation and use
2) HAVC auto control torch height sensor keep good cutting quality
3) Servo motor very fast moving speed
4) Detachable Cutting Tableincluding
