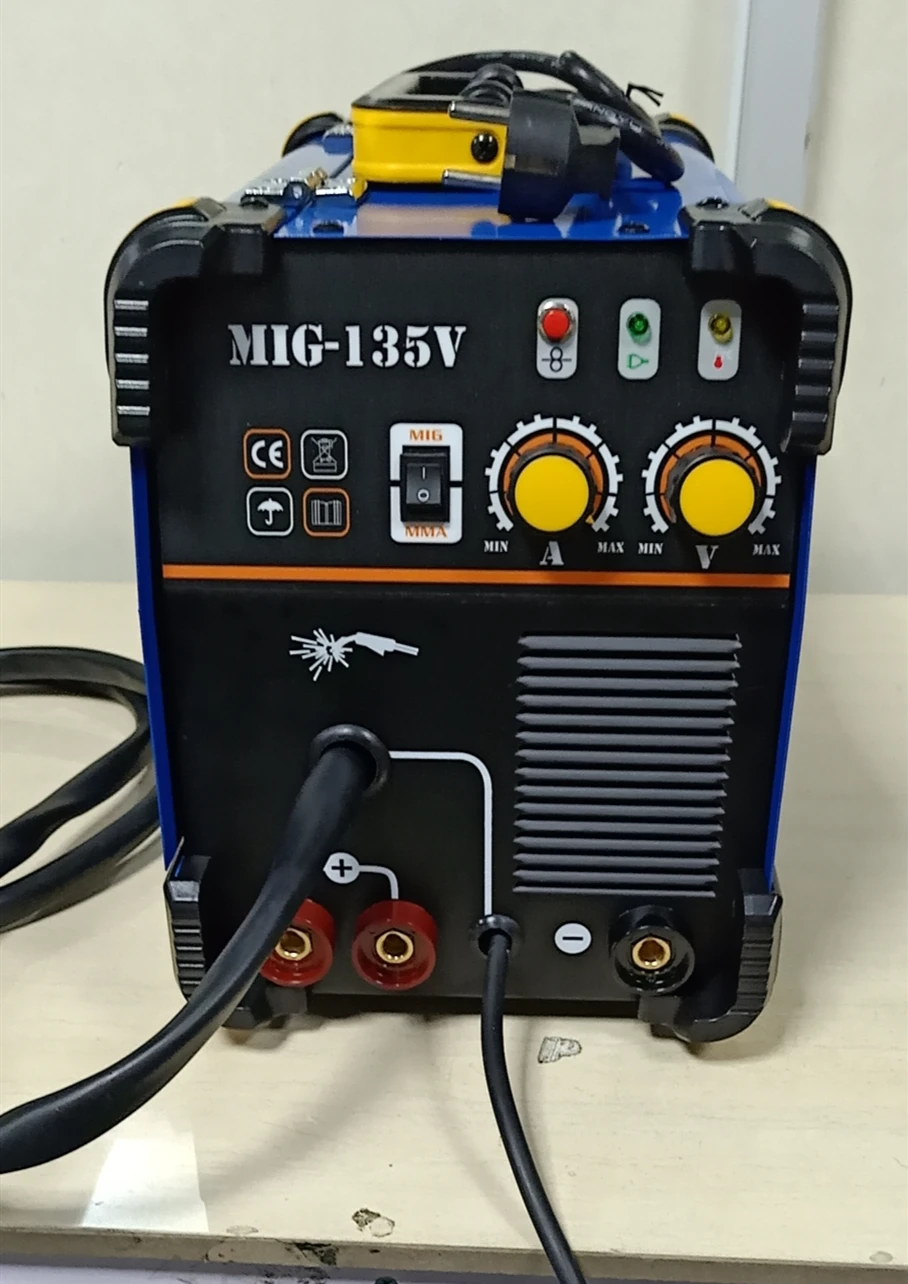

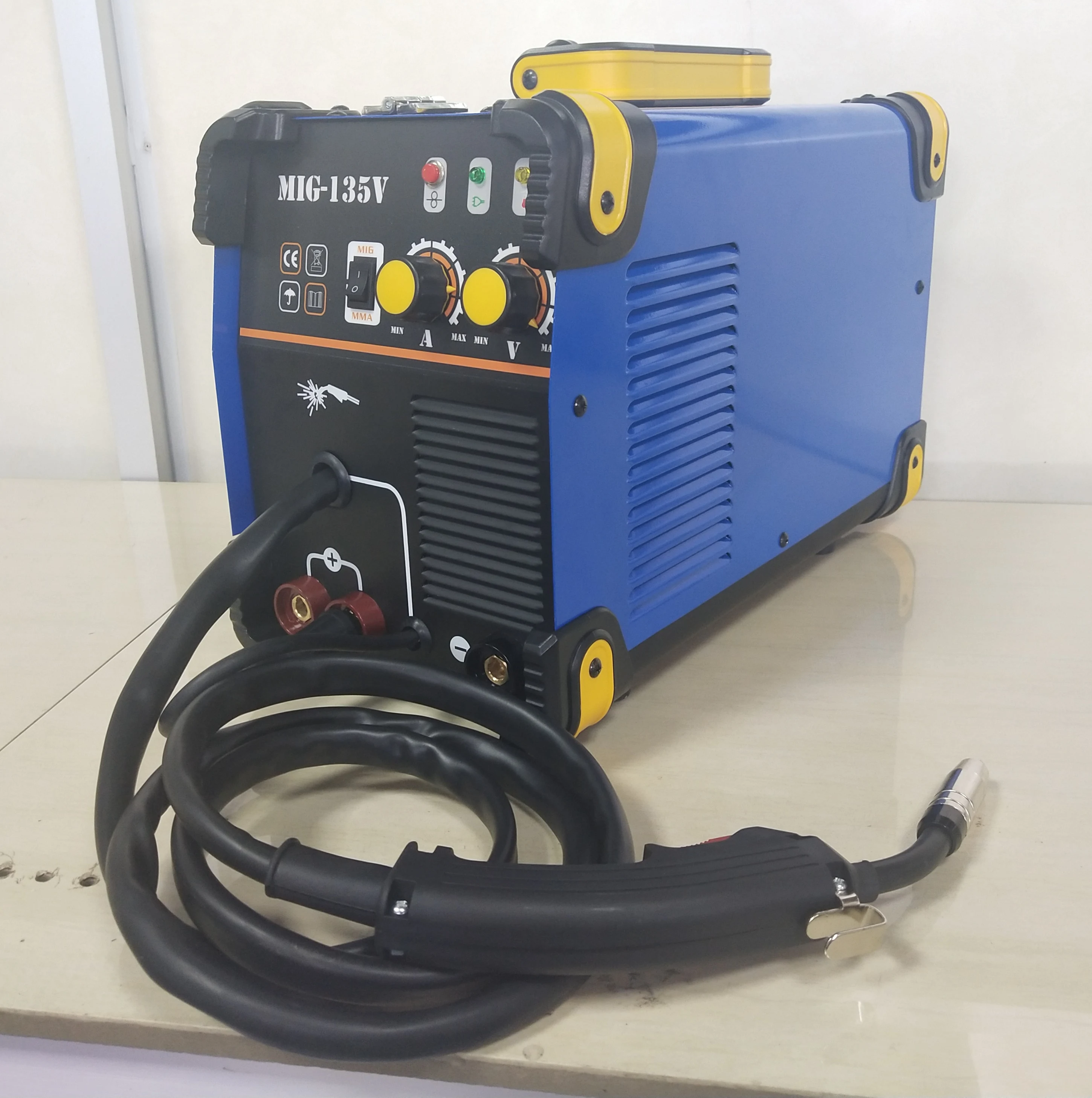

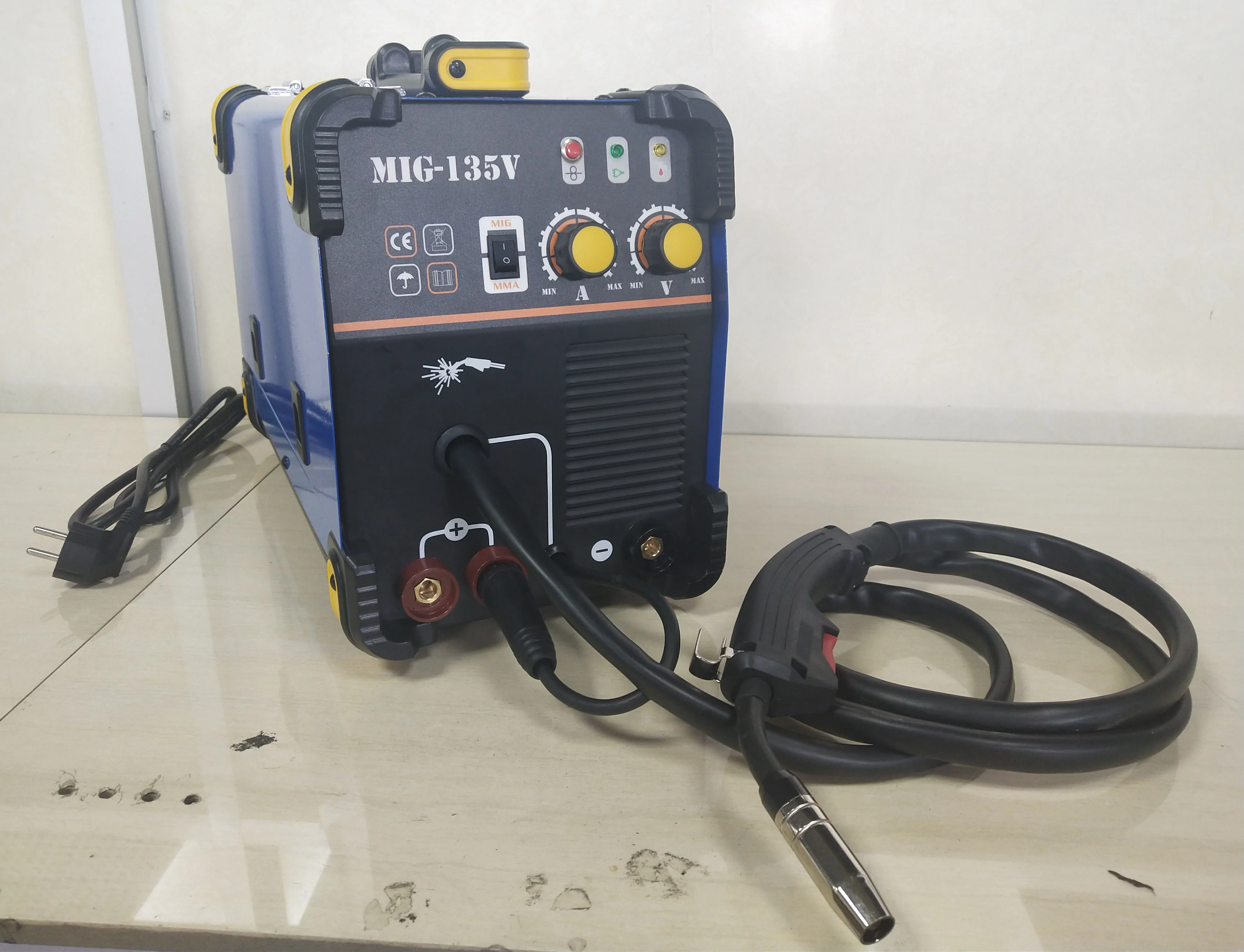

Xách Tay MIG/MMA/MAG IGBT Biến Tần MIG-135V Máy Hàn Giá
Xách Tay MIG/MMA/MAG IGBT Biến Tần MIG-135V Máy Hàn Giá
Xách Tay MIG/MMA/MAG IGBT Biến Tần MIG-135V Máy Hàn Giá

MIG/MMA WELDING
In MIG/MAG welding,an arc is created with the power supply through the welding gun between the welding wire beging fed and the work piece,The arc fuses the material being welded and the welding wire,tjus creating the weld.The wire feeder continuously feeds welding wire through the welding gun throughout the welding process.The welding gun also provides shileding gas to the weld.The MIG and MAG welding methods differ from each other in the MIG(metal inert gas )welding uses an inert shielding gas,which does not participate in the welding process,while MAG(metal active gas)welding employs an active shieding gas that participate in the welding process. Usually the shielding gas contains active carbon dioxide or oxgen,and therefore MAG welding is b far more common than MIGwelding.In fact,the term MIG welding is often accidentally used in connection with MAG welding.
Today,MIG/MAG welding is used nearly everywhere in the welding industry.The largest users are heavy and medium-heavy industry,such as shipbuilding,manufacturers of steel structures,pipelines and pressurized containers,as well as repair and maintenance businesses,MIG/MAG welding is also commonly used in sheet metel industry,particularly in the car industry,body shops and small industry.Hobbyists and home users also most commonly have a MIG/MAG welding machine.

ITEM | MIG-135V | MIG-175V |
Power voltage(v) | AC220V±15% 50HZ | AC220V±15% 50HZ |
Rated input capacity(KVA) | 4.79 | 6.55 |
Rated input current(A) | 20.75 | 22.5 |
Actual output current(A) | 135 | 170 |
No-load voltage(V) | 55 | 55 |
Duty cycle(%) | 60 | 30 |
Power factor | 0.73 | 0.73 |
Protect class | IP21S | IP21S |
Usable wire(mm) | 0.6-0.8 | 0.6-1.0 |
Dimension(mm) | 480*240*370 | 480*240*370 |
Weight(kg) | 11.5 | 15.8 |








ZHEJIANG LASDUN WELDING EQUIPMENT CO.,LTD.
We have well equipped facilities and excellent quality control throughout all stages of production enables us to guarantee all customers' satisfaction.All of our products comply with international quality standards,such as CE,TUV and ISO9001:2008 quality system.With the excellent products and great reputation,we have gained a alobal sales network of our main market as Europe,South America,Southeast Asia and Middle East.
We will always maintain a close contact with customers,commit to developing high quality products to provideoptimized service,realizing the harmonious development between Laston and the customers.
