Specification
1. Quick Summary Description
This is a mid-range Intel (formerly Altera) Cyclone V E FPGA in a UBGA package. It's a general-purpose, low-power, cost-effective
programmable logic chip, often used in embedded systems, industrial controls, video processing, and as a companion processor in
complex designs.
----------------------------------------------------------------------------------------------------------------------------------

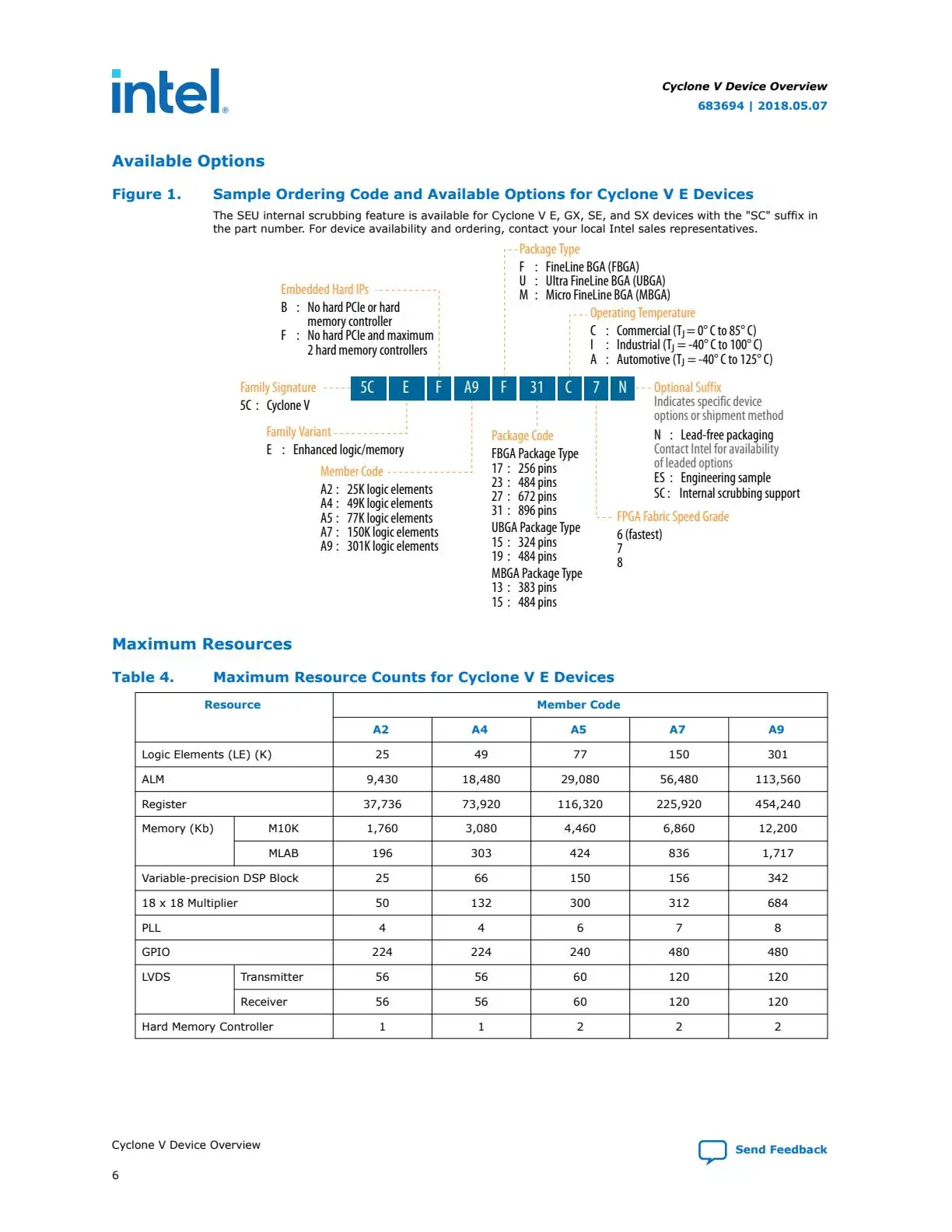

2. Detailed Part Number Breakdown
Let's decode the string 5CEBA9U19C7N segment by segment:
* 5C: Cyclone V Family. This is the 5th generation of the popular Cyclone series, known for its balance of power, cost, and
performance.
* E: E Variant. The Cyclone V family has several sub-families. The "E" stands for the standard, general-purpose FPGA core (as
opposed to "SE" which has a hard processor system, or "GT" which has high-speed transceivers).
* B: Logic Resource Tier. This indicates the size of the FPGA. "B" is a mid-range device within the Cyclone V E family, offering
a substantial number of logic elements.
* A9: Specific Device Code. This narrows down the exact resource count and configuration. In this case, it corresponds to a
device with 85,000 Logic Elements (LEs) and 4,450 Kbits of embedded memory.
* U19: Package Designator. "U" indicates a UBGA (Micro Ball Grid Array) package. "19" specifies the exact package size and pin
count. For this chip, it's a 19x19mm package with 672 pins.
* C7: Speed Grade. "C" indicates a Commercial temperature grade (0°C to 85°C Junction). "7" is the performance grade, where a
lower number is faster. "7" is a mainstream, mid-speed grade.
* N: Lead-Free. The "N" signifies that the package is compliant with the RoHS (Restriction of Hazardous Substances) directive,
meaning it is lead-free.
----------------------------------------------------------------------------------------------------------------------------------
3. Key Technical Specifications
Based on the decoded part number, here are the core specifications:
* Logic Elements (LEs): 85,000
* Embedded Memory: 4,450 Kbits
* Embedded 18x18 Multipliers: 150 (Used for DSP functions like filtering)
* Package: UBGA (19x19mm, 0.8mm pitch)
* Total Pins: 672
* User I/O Pins: ~300 (The exact number depends on configuration)
* Speed Grade: 7 (Commercial)
* Technology: 28 nm Low-Power (28LP) process
----------------------------------------------------------------------------------------------------------------------------------
4. Common Applications
This FPGA is a versatile chip used in a wide range of applications, including:
* Industrial Automation: Motor control, PLCs, I/O expansion modules.
* Video and Image Processing: Basic video switching, overlay, and image enhancement.
* Communications: Protocol bridging (e.g., translating between PCIe, Ethernet, and serial interfaces).
* Automotive: In-vehicle infotainment (IVI) and driver assistance systems.
* Test and Measurement Equipment: As a data acquisition and control hub.
* Aerospace and Defense: Ruggedized commercial-grade systems.
5. What is an FPGA?
An FPGA (Field-Programmable Gate Array) is not like a standard microprocessor. Instead of running software, it is a blank slate of
digital logic blocks and interconnects that you configure (or "program") to create custom hardware circuits. This allows for:
* Parallel Processing: Different tasks run simultaneously in dedicated hardware.
* Flexibility: The chip's function can be changed even after the board is manufactured.
* High Performance: Custom hardware can be optimized for specific tasks, often outperforming a general-purpose CPU.
In a nutshell: The 5CEBA9U19C7N is a well-balanced, commercially-focused FPGA from Intel, offering a solid amount of programmable
logic for embedded systems that require custom digital circuitry without the extreme cost or power consumption of high-end FPGAs.
This is a mid-range Intel (formerly Altera) Cyclone V E FPGA in a UBGA package. It's a general-purpose, low-power, cost-effective
programmable logic chip, often used in embedded systems, industrial controls, video processing, and as a companion processor in
complex designs.
----------------------------------------------------------------------------------------------------------------------------------
2. Detailed Part Number Breakdown
Let's decode the string 5CEBA9U19C7N segment by segment:
* 5C: Cyclone V Family. This is the 5th generation of the popular Cyclone series, known for its balance of power, cost, and
performance.
* E: E Variant. The Cyclone V family has several sub-families. The "E" stands for the standard, general-purpose FPGA core (as
opposed to "SE" which has a hard processor system, or "GT" which has high-speed transceivers).
* B: Logic Resource Tier. This indicates the size of the FPGA. "B" is a mid-range device within the Cyclone V E family, offering
a substantial number of logic elements.
* A9: Specific Device Code. This narrows down the exact resource count and configuration. In this case, it corresponds to a
device with 85,000 Logic Elements (LEs) and 4,450 Kbits of embedded memory.
* U19: Package Designator. "U" indicates a UBGA (Micro Ball Grid Array) package. "19" specifies the exact package size and pin
count. For this chip, it's a 19x19mm package with 672 pins.
* C7: Speed Grade. "C" indicates a Commercial temperature grade (0°C to 85°C Junction). "7" is the performance grade, where a
lower number is faster. "7" is a mainstream, mid-speed grade.
* N: Lead-Free. The "N" signifies that the package is compliant with the RoHS (Restriction of Hazardous Substances) directive,
meaning it is lead-free.
----------------------------------------------------------------------------------------------------------------------------------
3. Key Technical Specifications
Based on the decoded part number, here are the core specifications:
* Logic Elements (LEs): 85,000
* Embedded Memory: 4,450 Kbits
* Embedded 18x18 Multipliers: 150 (Used for DSP functions like filtering)
* Package: UBGA (19x19mm, 0.8mm pitch)
* Total Pins: 672
* User I/O Pins: ~300 (The exact number depends on configuration)
* Speed Grade: 7 (Commercial)
* Technology: 28 nm Low-Power (28LP) process
----------------------------------------------------------------------------------------------------------------------------------
4. Common Applications
This FPGA is a versatile chip used in a wide range of applications, including:
* Industrial Automation: Motor control, PLCs, I/O expansion modules.
* Video and Image Processing: Basic video switching, overlay, and image enhancement.
* Communications: Protocol bridging (e.g., translating between PCIe, Ethernet, and serial interfaces).
* Automotive: In-vehicle infotainment (IVI) and driver assistance systems.
* Test and Measurement Equipment: As a data acquisition and control hub.
* Aerospace and Defense: Ruggedized commercial-grade systems.
5. What is an FPGA?
An FPGA (Field-Programmable Gate Array) is not like a standard microprocessor. Instead of running software, it is a blank slate of
digital logic blocks and interconnects that you configure (or "program") to create custom hardware circuits. This allows for:
* Parallel Processing: Different tasks run simultaneously in dedicated hardware.
* Flexibility: The chip's function can be changed even after the board is manufactured.
* High Performance: Custom hardware can be optimized for specific tasks, often outperforming a general-purpose CPU.
In a nutshell: The 5CEBA9U19C7N is a well-balanced, commercially-focused FPGA from Intel, offering a solid amount of programmable
logic for embedded systems that require custom digital circuitry without the extreme cost or power consumption of high-end FPGAs.
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) | |
Mfr | Altera | |
Series | Cyclone® V E | |
Packaging | Tray | |
Part Status | Active | |
DigiKey Programmable | Not Verified | |
Number of LABs/CLBs | 113560 | |
Number of Logic Elements/Cells | 301000 | |
Total RAM Bits | 14251008 | |
Number of I/O | 240 | |
Voltage - Supply | 1.07V ~ 1.13V | |
Mounting Type | Surface Mount | |
Operating Temperature | 0°C ~ 85°C (TJ) | |
Package / Case | 484-FBGA | |
Supplier Device Package | 484-UBGA (19x19) | |
Base Product Number | 5CEBA9 | |
