Mô-đun chuyển đổi DC DC ADXL345BCCZ-RL7, điện áp vào 43V, điện áp ra 72V, công suất 60W, dòng điện 75A, hiệu suất 99%, dùng cho động cơ, điều hòa không khí, công nghiệp, tốt nhất

572

Đã bán

243.282đ

Mô-đun chuyển đổi DC DC ADXL345BCCZ-RL7, điện áp vào 43V, điện áp ra 72V, công suất 60W, dòng điện 75A, hiệu suất 99%, dùng cho động cơ, điều hòa không khí, công nghiệp, tốt nhất

572

Đã bán

243.282đ

Thông tin

Xem chi tiết

Số lượng

Điện áp đầu vào

Công suất đầu ra

Điện áp đầu ra

Số lượng

Đơn vị

1 Đơn vị

Chọn loại hàng (ví dụ:màu sắc ,kích thước)

Thông số sản phẩm

Danh Mục

Bộ biến tần và bộ chuyển đổi

Thuế VAT

Giá có VAT

243.282đ

Mã

a4CN5oEoz3

Nhãn hiệu

Update

Xuất xứ

Update

Thông tin

Mô tả sản phẩm

Specification

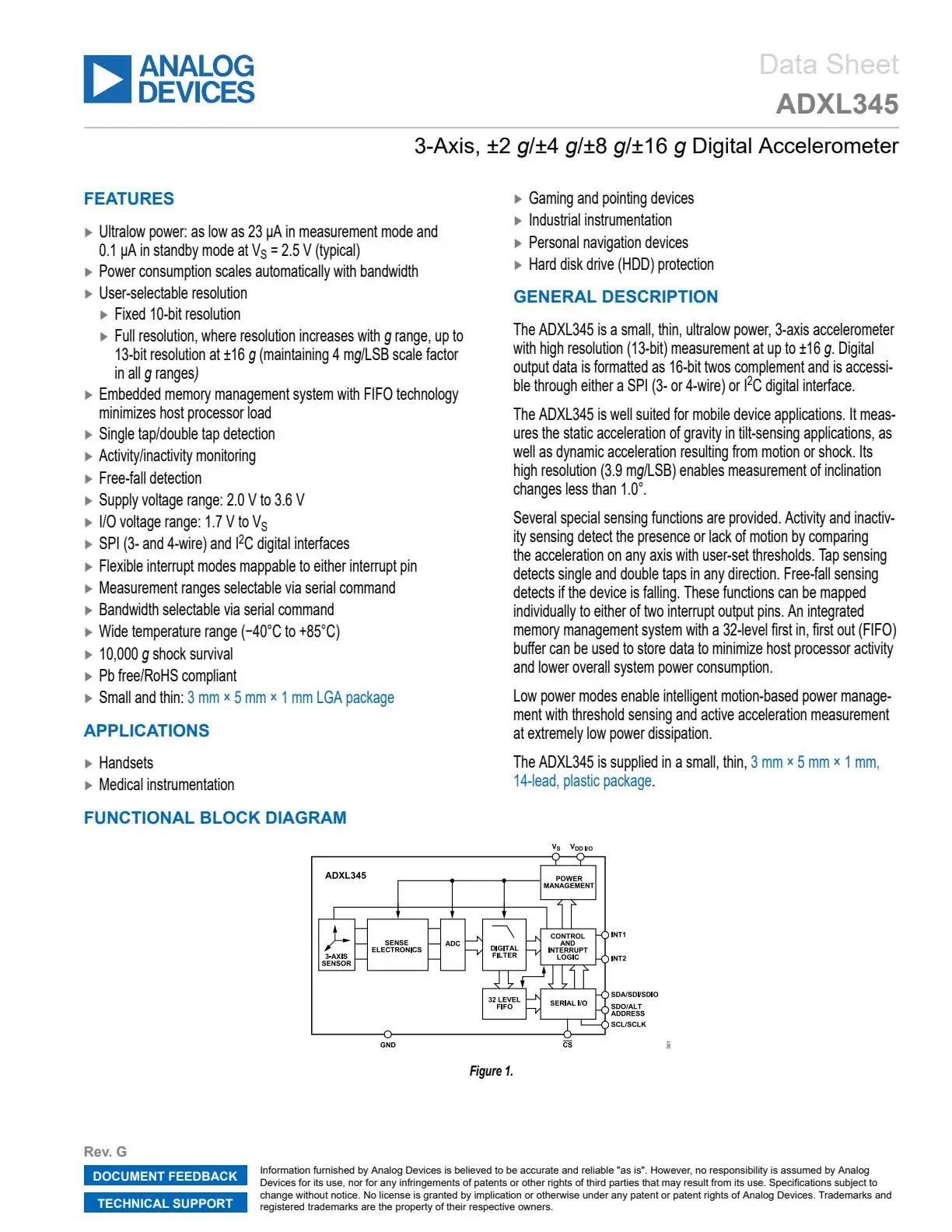

The ADXL345BCCZ-RL7 is a small, low-power, 3-axis accelerometer from Analog Devices. It is capable of measuring static
acceleration (like gravity for tilt sensing) and dynamic acceleration (like motion, shock, or vibration). The "RL7" suffix
indicates it comes on a 7-inch reel for high-volume, automated assembly.
It's one of the most popular accelerometers ever made, widely used in consumer electronics, industrial applications, and IoT
devices.

----------------------------------------------------------------------------------------------------------------------------------

Key Features and Descriptions
1. Core Functionality
* 3-Axis Sensing: It measures acceleration along three perpendicular axes (X, Y, and Z) simultaneously. This allows it to detect
orientation, movement, and impact in any direction.

* Digital Output: It provides the acceleration data as a digital signal, making it easy to interface directly with
microcontrollers (like Arduino, Raspberry Pi, ESP32) without needing an external Analog-to-Digital Converter (ADC).

* High Resolution: It can measure changes in acceleration as slight as 3.9 mg per digit (where 1 g = gravity of Earth). This
means it can detect very subtle movements and angles.

2. Selectable Measurement Range
The sensor's sensitivity can be programmed to one of four ranges, making it versatile for different applications:
* ±2 g (For subtle tilt sensing, low-speed motion)

* ±4 g

* ±8 g

* ±16 g (For high-impact, high-vibration scenarios)

3. Communication Interfaces
It features two standard digital interfaces, selectable by the user:
* I2C (Inter-Integrated Circuit): Ideal for connecting multiple sensors to a microcontroller with only two wires (plus power and
ground).

* SPI (Serial Peripheral Interface): Offers higher-speed communication, useful when faster data transfer is required.

4. Advanced Features
* Activity and Inactivity Sensing: It can be programmed to monitor itself and generate an interrupt signal when motion starts or
stops, allowing the main processor to sleep and save power.

* Tap/Double-Tap Detection: It can recognize single and double taps (like a knock or a hit), a feature famously used for screen
orientation and gesture control in smartphones.

* Free-Fall Detection: It can sense when a device is falling, a critical feature for protecting hard drives in laptops or other
fragile equipment.

* FIFO (First-In, First-Out) Memory: A 32-level internal buffer that stores data. This allows the microcontroller to read data in
bursts instead of constantly, further reducing power consumption and processing load.

* Low Power: It has a very low current consumption, especially in low-power modes, making it perfect for battery-operated
devices.

5. Physical Characteristics

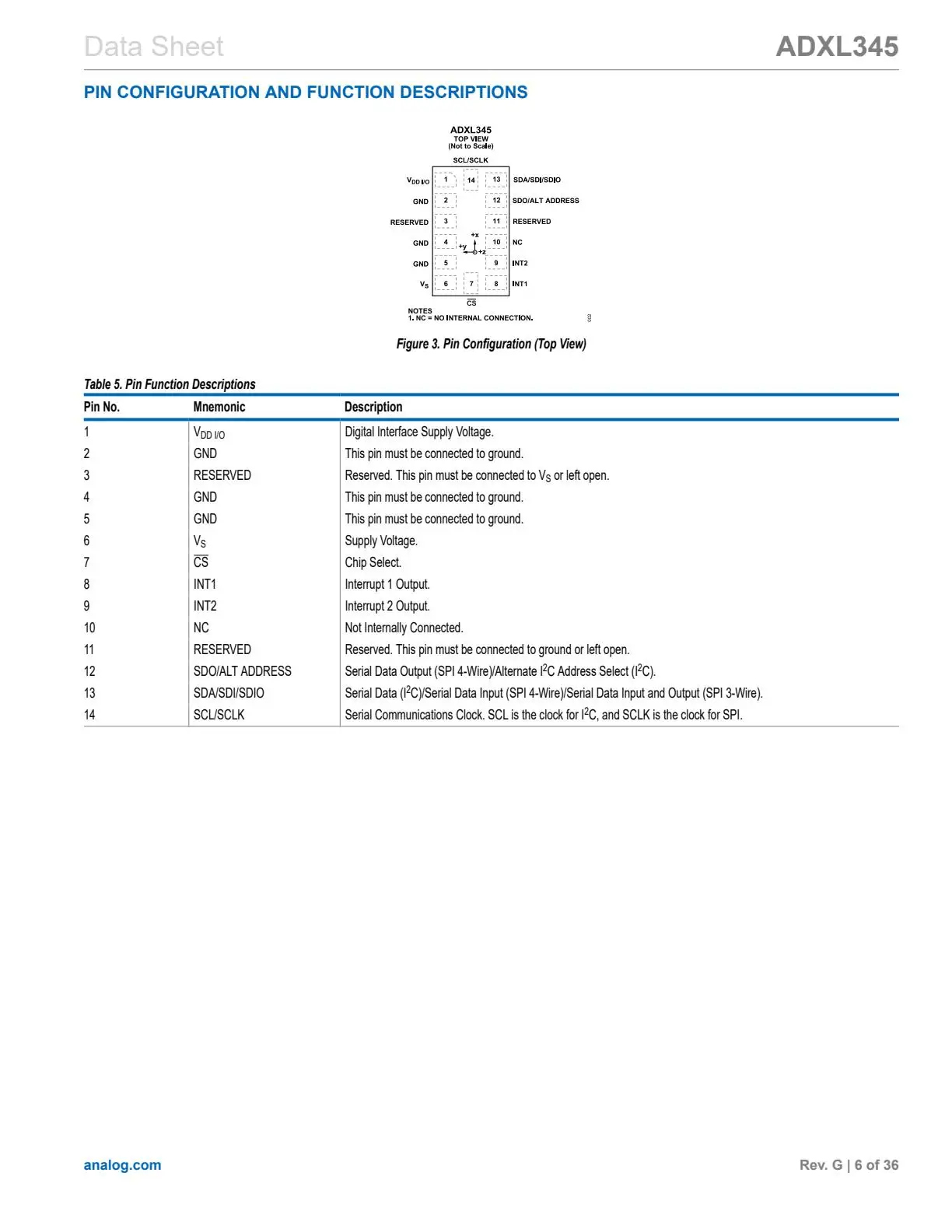

* Package: Comes in a small, surface-mount LGA-14 package. The "BCCZ" in the part number specifies this package variant.

* Small Size: The chip itself is extremely compact (3mm x 5mm x 1mm), allowing it to fit into very small form-factor devices.

* Reel Packaging (RL7): The "-RL7" means it is supplied on a tape-and-reel carrier, which is standard for automated
pick-and-place machines used in mass production.

----------------------------------------------------------------------------------------------------------------------------------

Typical Applications
You would find the ADXL345 in devices that need to sense motion, orientation, or impact:
* Consumer Electronics: Smartphones (for auto-rotate screens, gaming), fitness trackers, game controllers, and remote controls.

* Industrial Equipment: Condition monitoring for machinery (vibration analysis), instrument orientation, and impact loggers.

* IoT Devices: For detecting when a device is moved or tampered with (e.g., smart sensors, asset trackers).

* Robotics: For balancing robots, measuring tilt, and detecting collisions.

* Automotive: Airbag systems, telematics, and anti-theft devices.

----------------------------------------------------------------------------------------------------------------------------------

Summary
In essence, the ADXL345BCCZ-RL7 is a highly versatile, digital, 3-axis accelerometer IC packaged for mass production. Its
combination of low power, high resolution, programmable range, and built-in intelligent motion detection features makes it a
"go-to" solution for a vast number of motion-sensing applications across various industries.

Category	Power Supplies - Board Mount DC DC Converters
Mfr	Cosel USA, Inc.
Series	CBS (200W)
Packaging	Box
Part Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	8.4A
Power (Watts)	202 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Operating Temperature	-40°C ~ 100°C (With Derating)
Efficiency	87%
Mounting Type	Through Hole
Package / Case	Half Brick
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package	Half Brick
Base Product Number	CBS2002424
