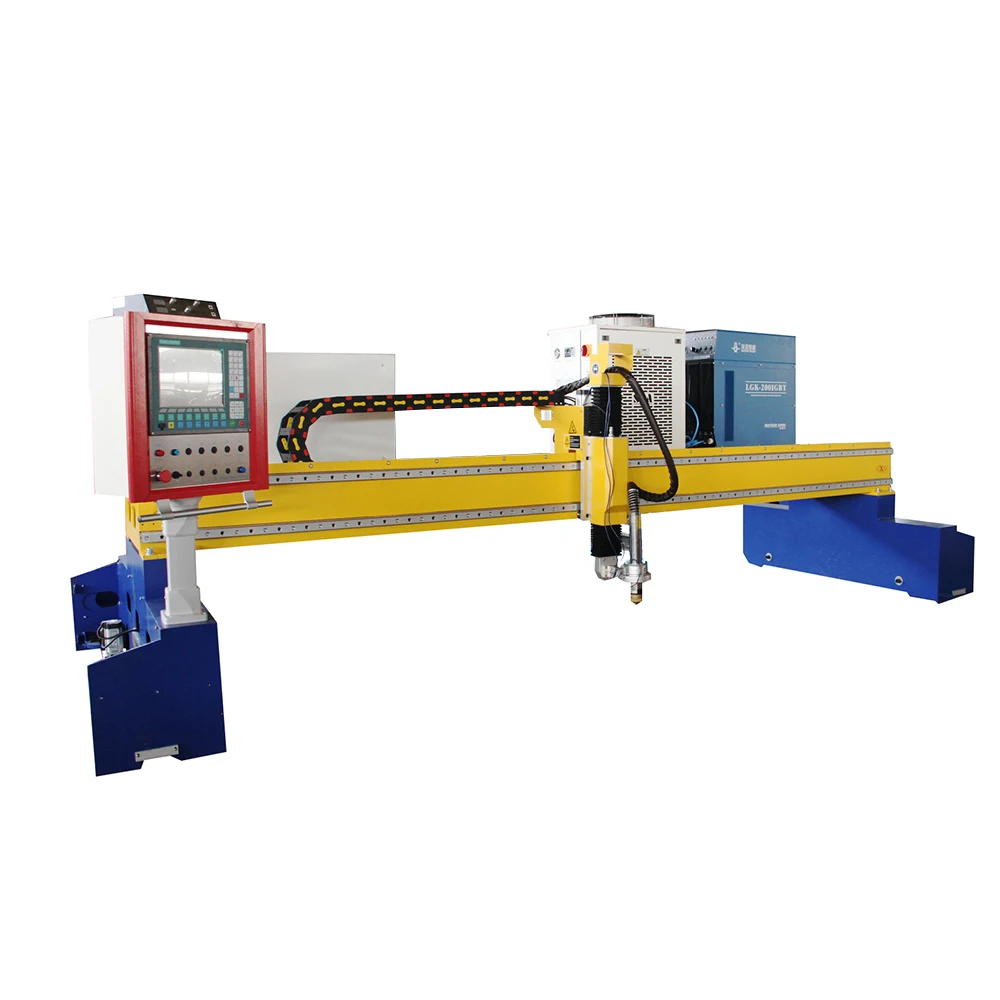

Máy cắt plasma hạng nặng 4080 Máy cắt plasma hạng nặng CNC 4080 Máy cắt ngọn lửa Plasma CNC
999
Đã bán
190.351.070đ
177.660.999đ ~ 190.351.070đ
190.351.070đ
177.660.999đ ~ 190.351.070đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
177.660.999đ
peruz0ootV
Mô tả sản phẩm
Loại động cơ: Servo MotorĐiều kiện: Mới
Nơi xuất xứ: Shandong, ChinaNhãn hiệu: JIAIXN
Số Mô Hình: G2080Điện áp: 220V
Công suất: 8.5kWKích thước (L * W * H): 5.2m * 1.5m * 1.4m
Trọng lượng (KG): 1200 KGNăm: 2023
Bảo hành: 1 NămKey Điểm Bán Hàng: Năng Suất cao
Áp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, In ấn Cửa Hàng, Xây dựng làm việc, Công Ty quảng cáoPhòng Trưng Bày Trí: Thổ Nhĩ Kỳ, Ý, Nước Pháp, Đức, Brasil, Peru, Ả Rập Saudi, Tây Ban Nha, Argentina, Sri Lanka, Romania, Bangladesh, Ukraina, Nigeria, Malaysia
Tiếp Thị Loại: 2023 sản phẩm nóngMáy Móc Báo Cáo Thử Nghiệm: Cung Cấp
Video Gọi Đi-Kiểm Tra: Cung CấpBảo Hành Của Core Thành Phần: 1 Năm
Core Thành Phần: Động CơTên: Mini giàn Plasma cutitng máy
Tên sản phẩm: Máy cắt kim loại Plasma CNCChế độ cắt: Cắt plasma + cắt ngọn lửa
Hệ thống điều khiển: Hệ thống điều khiển khởi độngKhu vực làm việc: 1500*7000M M
Thân máy: 2000mm * 8000m mĐộ dày cắt: Nguồn Plasma
Động cơ và ổ đĩa: Ổ đĩa bướcBộ điều khiển chiều cao đèn Pin: Điện áp hồ quang thc
Ứng dụng: Cắt kim loại công nghiệp
Product Description
Specification
technical Specification | |
Model | CNC |
Machine dimension (mm) | Maximum 12 meter in width and not limited in length |
Effective processing area (mm) | 1 meter less in width and 2 meter less in length than machine size |
Suggested cutting thickness (mm) | Stainless steel:1-50mm and Carbon steel:6-160mm |
Drilling capacity (mm) | Maximum 140mm in depth and 35mm in diameter |
Drilling power | 8Kw (25hp) 1Kw=1.36PS=1.34HP |
Drilling feed | 10m/min (400ipm) |
Drilling torque | 200 N.M. (150 ft-lb) |
Borehole pressure | 11000 N (2500 lbf) |
Cutting Speed (mm/min) | 50-9000 |
Running speed (mm/min) | 12000 |
Cutting Mode | Oxy-fuel/ Plasma/ High definition plasma/ Laser |
Drive mode | Servo motor, Dual-side |
Guide track | Straight ball-guide |
Cutting Torch Number | Customer specified |
Driving Motor | Panasonic from Japan |
NC Controller | Micro EDGE pro, Shanghai KP, SJTU-SK |
Plasma Power | Victory (Thermadyne), Kjellberg, Hypertherm, JIAXIN LGK |
Programming software | FASTCAM |
Gearbox | SEW or Neugart from Germany |
Working temperature | - 10°C -45°C |
Humidity | <90%, no condensation |
Surroundings | Ventilation, vibrationless |
Power voltage | 3×380V±10% 50Hz/ according to user's local condition |
Operation language | Multilingual and English available |

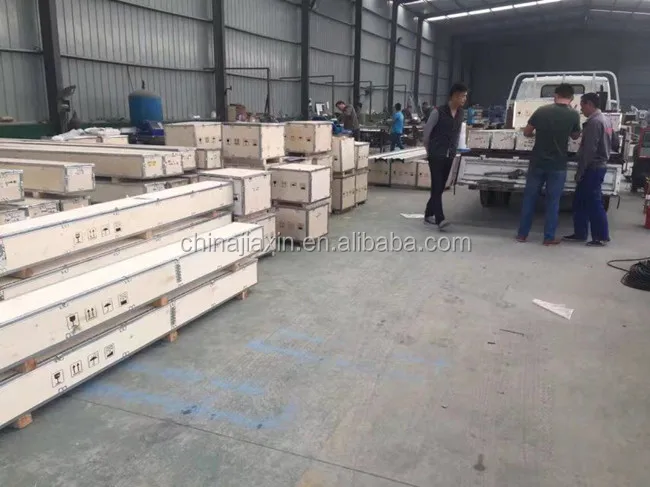

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Advantages
1. Easy and quick operation
Pioneering field adjustable cutting torch height control, over the cutting torch raised control body design has all the necessary
movement and control keys, to mobile operators in the cutting torch counterpoint is very convenient. Humanized design, more
efficient operation.
2. Professional design, beautiful and atmosphere, more durable
All keys, all adopt the top design of crystal buttons, relative to other enterprises film button, button always ensure that clear
bright, never wear. At the same time, the host body all adopt the technique of the lacquer that bake, colour is beautiful and
durable.
3. Simple and straightforward way of graphics programming
Complex graphics CAD design is used in the office, the U disk into the cutting machine, simple graphics can also be on the cutting
machine using a very simple and straightforward way programming input directly, such as "straight line, the fourth quadrant, X40,
Y30". This way of programming, ordinary operators are very easy to learn.
4. A fool type operating mode
Screen below a reminder of various operating methods, the operator can do not need training, does not need to look at the
instructions.
&diams Drilling and cutting the work piece automatically after programming, dispense further positioning the holes on work piece, high
precision on drilling finish.
&diams Gapless gearing transmit, stable and smooth running in high speed, smart, fine surface finish quality.
1. Easy and quick operation
Pioneering field adjustable cutting torch height control, over the cutting torch raised control body design has all the necessary
movement and control keys, to mobile operators in the cutting torch counterpoint is very convenient. Humanized design, more
efficient operation.
2. Professional design, beautiful and atmosphere, more durable
All keys, all adopt the top design of crystal buttons, relative to other enterprises film button, button always ensure that clear
bright, never wear. At the same time, the host body all adopt the technique of the lacquer that bake, colour is beautiful and
durable.
3. Simple and straightforward way of graphics programming
Complex graphics CAD design is used in the office, the U disk into the cutting machine, simple graphics can also be on the cutting
machine using a very simple and straightforward way programming input directly, such as "straight line, the fourth quadrant, X40,
Y30". This way of programming, ordinary operators are very easy to learn.
4. A fool type operating mode
Screen below a reminder of various operating methods, the operator can do not need training, does not need to look at the
instructions.
&diams Drilling and cutting the work piece automatically after programming, dispense further positioning the holes on work piece, high
precision on drilling finish.
&diams Gapless gearing transmit, stable and smooth running in high speed, smart, fine surface finish quality.
