Tay Rip Cưa Gỗ Log Máy Cắt Trượt Bảng Saw Hand Push Saw

999

Đã bán

81.217.493đ

70.817.692đ ~ 81.217.493đ

Tay Rip Cưa Gỗ Log Máy Cắt Trượt Bảng Saw Hand Push Saw

999

Đã bán

81.217.493đ

70.817.692đ ~ 81.217.493đ

Thông tin

Điều kiện: MớiLoại: Ban nhạc Saw, Ngang

Sử dụng: Chế biến gỗPhong cách: Ngang

Nơi xuất xứ: HENANNhãn hiệu: BEDO

Cách sử dụng: Cắt gỗĐiện áp: 380V, 50Hz hoặc tùy chỉnh

Kích thước (L * W * H): 200cm * 160cm * 160cmBảo hành: 1 Năm

ứng dụng: Máy nghiền gỗ, Nhà máy sản xuất hộp gỗ, Nhà máy sản xuất đồ nội thất, Nhà máy nhiên liệu SINH KHỐI, Bàn nhà máyTrọng lượng (KG): 500 KG

Điện (kW): 5kWKey Điểm Bán Hàng: Bền

Max. Làm Việc Chiều Rộng (Mm): 400m mBan Nhạc Thấy Loại: Đăng Nhập Ban Nhạc Thấy

Áp dụng Các Ngành Công Nghiệp: May mặc Cửa Hàng, Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Các trang trại, Nhà hàng, Bán lẻ, Thực phẩm Cửa Hàng, Xây dựng làm việc, Năng lượng & Khai Thác Mỏ, Thực phẩm và Đồ Uống Cửa Hàng, Công Ty quảng cáoTiếp Thị Loại: 2024 sản phẩm nóng

Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp

Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ

Tên: Bàn tay Rip cưa gỗ đăng nhập Máy cắt trượt bàn cưa tay đẩy cưaMô hình: BD-YC300

Chức năng: Gỗ tối ưu hóa Chiều dài cắtKích thước lưỡi: 405*36t * 6t * 3.6m m

Dịch vụ: Hỗ trợ trực tuyến 24hĐường kính lưỡi cưa: Chuyên nghiệp

Màu sắc: Yêu cầu của khách hàngTốc độ cho ăn: Hướng dẫn sử dụng đẩy thức ăn

Công suất động cơ: 2 * 7.5kW

Hand Rip Saws Wood Log Cutting Machine Sliding Table Saw Hand Push Saw

Products Description

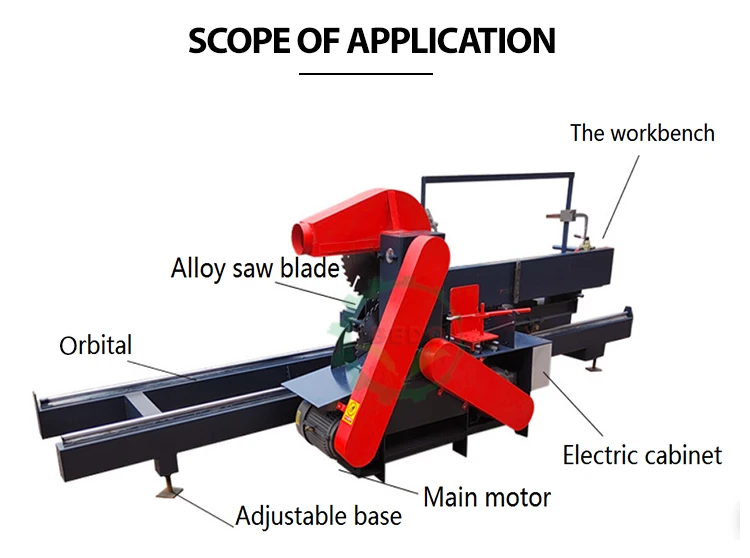

The layout of the saw blade is a single saw up and down, using a large size saw blade and equipped with a scraper. The sawing surface is flat and smooth, avoiding the phenomenon of saw bending and digging. The product is flat and standard, without over-planing, and can replace the band saw machine. With reasonable structure, beautiful appearance, high efficiency and energy saving, environmental protection, safety and reliability, it is very suitable for the processing of splicing boards, fingerboards, wood lines, plates and square materials. It is equipment for construction, furniture, wood, processing and other industries. The sawing precision is high, and the sawing size can be adjusted according to the needs, and it can be adjusted to specification wood or solid wood, solid wood or board according to the sawing size. The surface of the finished product is smooth without planing.

Specification

The frame adopts large thick square tube cutting molding, long time use without deformation. The main rail adopts 2 meters high precision bearing steel, linear rail, light and flexible use, greatly reducing the user's labor intensity. The machine is simple and safe to operate, only ordinary employees can operate, greatly saving labor costs for customers.

Technical Data

Model	BD-YC300	BD-YC400	BD-YC500
Feeding Length	10cm-400cm	10cm-400cm	10cm-400cm
Feeding Diameter	10cm-300cm	10cm-400cm	10cm-500cm
Power	2*7.5kw	7.5*11kw	11*11kw
Saw blade Specifications	40536T6T*3.6mm	50044T6T*3.8mm	60048T5mm
Size	200-800160160cm	200-800160160cm	200-800160160cm
Feeding Rate	Manual push feed	Manual push feed	Manual push feed
Weight	500-750kg	500-750kg	500-750kg

Details Images

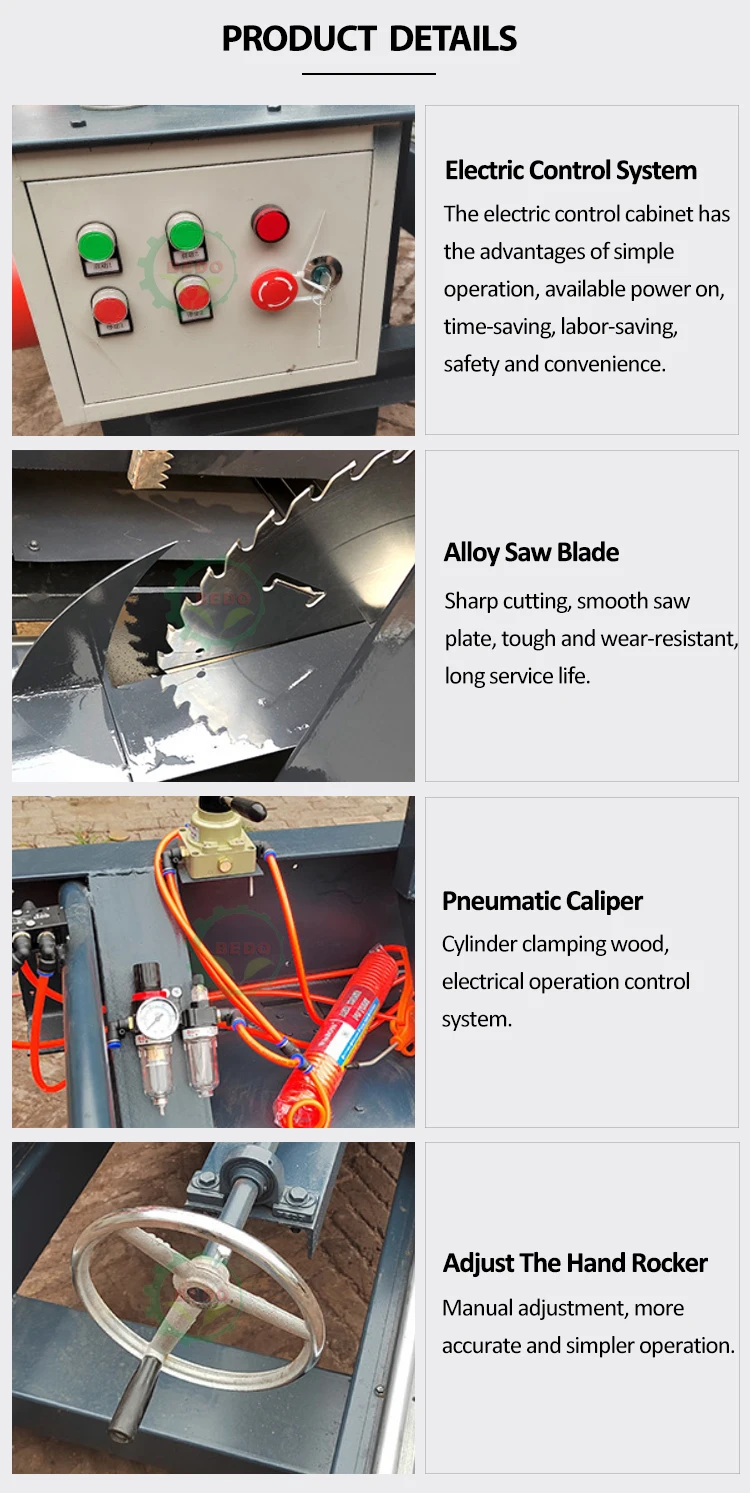

1.The saw blade is equipped with cooling device, which is not easy to burn the saw blade and prolongs the service life of the saw blade.

2.Double row sharp tooth chain feeding, simple and economical maintenance.

3.The discharging end has active feeding guide device, which is not easy to clamp saw blade and improves the smoothness of feeding.

4.Manual lubricating pump is used to supply oil to inlet and outlet guide rail and feeding guide rail of spindle box, which prolonging the service life of guide rail.

Applications

It is mainly used for longitudinal sawing of small diameter log, according to preset ruler, many sheets can be sawed out in one feed, which is widely used in the sawing process of small path lumber of jointing board and finger board factory.

Packing & Delivery

1. Packing: Nude Packing.

2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.

Daily maintenance：
1.Regularly adjust and check the feed chain, feed motor chain and navigation motor inside the log multi-blade saw.
2.Check regularly whether the length and tightness of the main motor belt is moderate, add oil regularly to the oil cup of the box, and check whether the oil pipe has been properly connected to the port.
3.The cushion cover, saw blade, navigation blade should be cleaned regularly (3~5 days) with diesel oil, wipe clean with a clean cloth, installation can not have debris, to clean, and then wipe clean with a cloth.
4.The spindle core should be used every day to flush the hole with water when replacing the log blade saw, or to blow the air with the air gun at the most inner outlet to blow the dirt out and ensure that the outlet is smooth.

5.Check regularly whether the spindle nut inside the log multi-blade saw machine is loose.

Company Profile

Henan Bedo Machinery Equipment Co.,LTD is a pioneer company in the field of manufacturing Wood Machinery, and Feed Machinery. Such as wood chipper, wood hammer mill, fish feed pellet machine, animal feed pellet machine,etc. In order to make our products attract more and more people, we have been improving technology and developing new products. We are looking forward to establishing business relationships with more and more customers from all over the world.
