Wbh620 suncomm ngoài trời cầu không dây 5GHz 15km IP67 tất cả các kim loại vỏ dưới Gigabit cổng Ethernet SFP 900Mbps PTP

Product Model

APH620

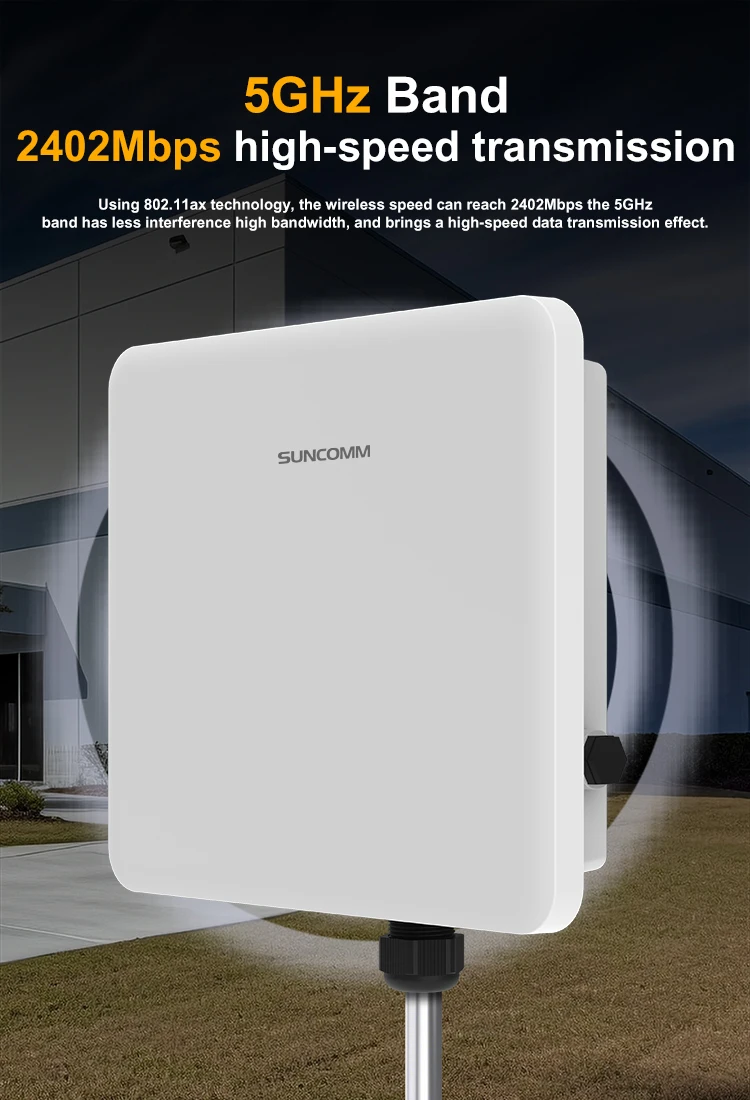

5Hz Band

5.150GHz～5.850GHz

5GHz WiFi Standard

802.11ax

Antennas

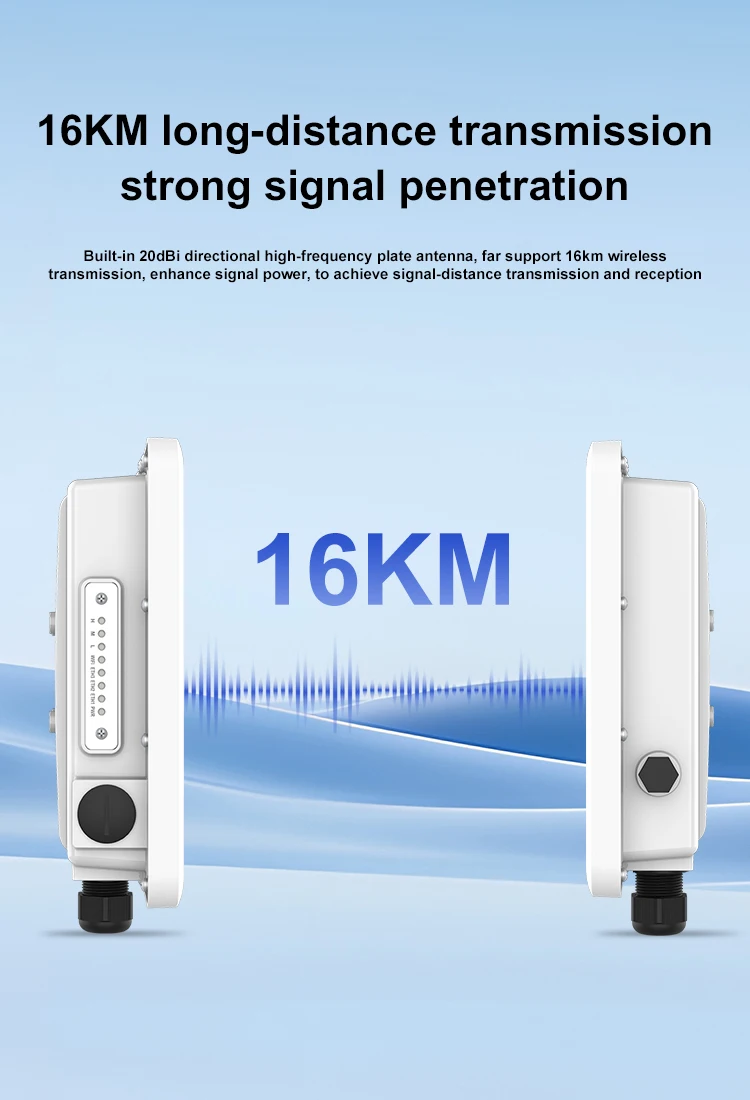

Built-in 20dBi directional flat antenna

Wireless Speed

5GHz: 2402Mbps, PTP Actual Throughput: 900+ Mbps

Tx Power

6GHz: <24±2dBm

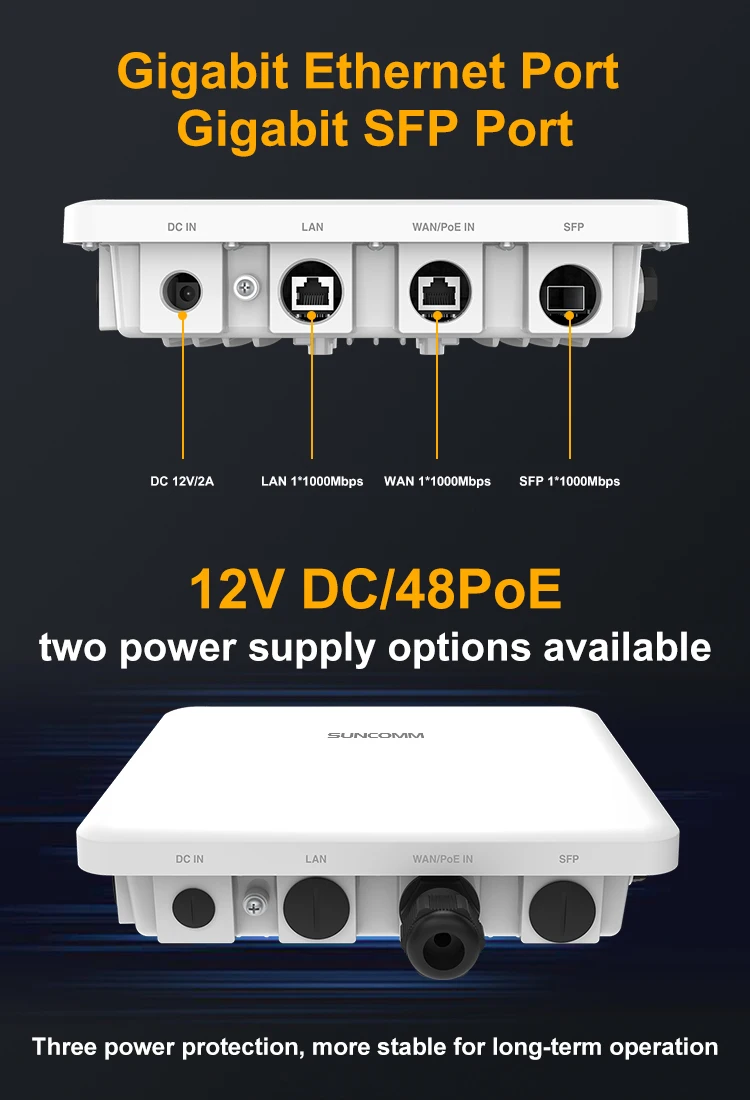

Interface

1×1000Mbps SFP Optical Port
1×10/100/1000Mbps WAN port，support PoE 48V power supply
1×10/100/1000Mbps LAN Port

Button

Reset Button (Press and hold for 6-10 seconds to restore factory default settings)

Status Indicators

PWR: Power Indicator
(Green: Steady on when powered; OFF when unpowered)
SFP: Gigabit Optical Port Indicator
(Green: OFF when disconnected; Steady on when linked; Flashes during data transfer)
WAN: Gigabit WAN Port Indicator
(Green: OFF when disconnected; Steady on when linked; Flashes during data transfer)
LAN: Gigabit LAN Port Indicator
(Green: OFF when disconnected; Steady on when linked; Flashes during data transfer)
WiFi: Wireless Status
(Green: Steady on when enabled & connected; Flashes when idle; OFF when disabled)
L: Signal Level (Low)
(Green: Steady on if ≥ threshold; OFF if < threshold)
M: Signal Level (Mid)
(Green: Steady on if ≥ threshold; OFF if < threshold)
H: Signal Level (High)
(Green: Steady on if ≥ threshold; OFF if < threshold)

Power Supply

DC2.0 12V /1A，PoE 802.3at

Power Consumption

<10W

Dimensions

218mm×243mm×64mm

Net Weight

1.56kg

Working Environment

Working Temp.:-40°C to 70°C；
Storage Temp.: -40°C to 70°C；
Humidity：5％～95％ (no condensation)

Status Display

Display work mode, network topology, signal strength, CPU/memory usage, real-time traffic rate, device description, internal network information, wireless information, bridging information, external network information (gateway / WISP).

Work Modes

AP Mode, Bridge Mode, WISP Mode, Gateway Mode

CPE Management

(AP/Bridge Modes) Self-Management Function for Bridges Based on the GHCP Private Protocol

Wireless Settings

SSID Broadcast， Hidden SSID，Channel Selection、Encryption Methods（NONE、WPA3-SAE、EAP）、Client Connection Limit（0-64）、Virtual AP (VAP)Support（2pcs）
Country Code、User Isolation、DFS、Radio Mode（2×2 MIMO/SISO）
MAC Access Control: Supports Blacklist/Whitelist Modes to Restrict Specific MAC Addresses from Accessing WiFi
WiFi Schedule
BSSID Lock、Watchdog Reboot(Kernel-level deadlock detection)

Security Center

Web Filtering
IP Address Filtering
MAC Address Filtering
Port Forwarding
DMZ

Network Settings

IPv4/IPv6
Port Configuration
Ping
Traceroute
LLDP Configuration
Cloud Management Platform
Static DHCP Binding: Bind MAC address and fixed IP, supporting 32 rules
Remote Access、VPN （IPsec/PPTP/L2TP）
Static Routing: Supports 16 routing rules

Device Management

Configuration Management
Scheduled Reboot
Firmware Upgrade
NTP Time Synchronization
Log Management
HTTP、Telnet、SSH、SNMP
QoS Configuration
Time Group/ IP Group Management
Dynamic DNS Configuration
