Ap830 điểm truy cập ngoài trời ipq5018 chip 4t4r băng tần kép 802.11ax 2.4G 5.8GHz PoE cung cấp điện 48V điểm truy cập không dây ngoài trời

430

Đã bán

1.962.069đ

1.868.637đ ~ 1.962.069đ

Ap830 điểm truy cập ngoài trời ipq5018 chip 4t4r băng tần kép 802.11ax 2.4G 5.8GHz PoE cung cấp điện 48V điểm truy cập không dây ngoài trời

430

Đã bán

1.962.069đ

1.868.637đ ~ 1.962.069đ

Thông tin

Ap830 điểm truy cập ngoài trời ipq5018 chip 4t4r băng tần kép 802.11ax 2.4G 5.8GHz PoE cung cấp điện 48V điểm truy cập không dây ngoài trời

Xem chi tiết

Số lượng

Màu sắc

Thông số kỹ thuật

Số lượng

Đơn vị

1 Cái

Chọn loại hàng (ví dụ:màu sắc ,kích thước)

Thông số sản phẩm

Danh Mục

Sản phẩm truyền thông và mạng khác

Thuế VAT

Giá có VAT

1.962.069đ

Mã

UkG9drtgU3

Nhãn hiệu

Update

Xuất xứ

Update

Thông tin

Ap830 điểm truy cập ngoài trời ipq5018 chip 4t4r băng tần kép 802.11ax 2.4G 5.8GHz PoE cung cấp điện 48V điểm truy cập không dây ngoài trời

Mô tả sản phẩm

Why Choose Us

Product Details

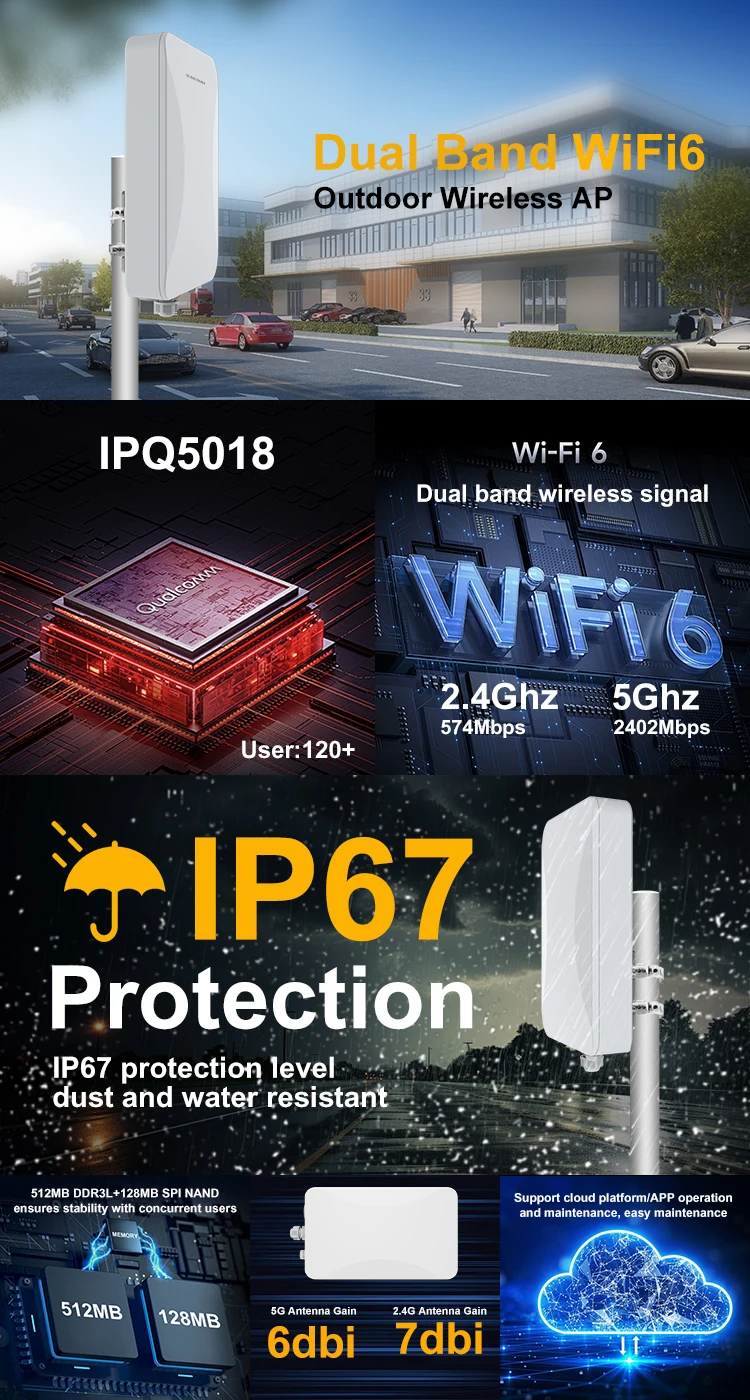

Product Overview SUNCOMM AP830 is a high-performance 4T4R dual band 802.11AX product that provides 2.4G and 5.8GHz dual band wireless services. 2.4G offers a maximum access rate of 574Mbps, while 5G offers a maximum access rate of 2402Mbps.

Product Features Having better transmission quality, higher transmission speed, and a concurrent speed of up to 3000Mbps. By adopting the IPQ5018 chip, the user capacity has been greatly expanded, and it can support up to 120+users. The heat sink adopts a buckle structure design and surface nano coating treatment, resulting in more ideal heat dissipation effect. The RF adopts high-power FEM, which has stable performance and longer coverage. The addition of lightning protection board components greatly enhances the protective capability of the equipment.

Hardware Specification
Product Model	AP830
CPU	IPQ5018 + QCN6102+ QCA8081
Flash	SPI NOR 8MB SPI NAND 128MB
DDR3L	512MB*1
2.4G operating frequency range	2.4GHz~2.484GHz
2.4G WIFI transmission protocol	802.11 b/g/n/ac/ax
5G operating frequency range	5.150GHz to 5.850GHz
5G WIFI transmission protocol	802.11 a/n/ac/ax

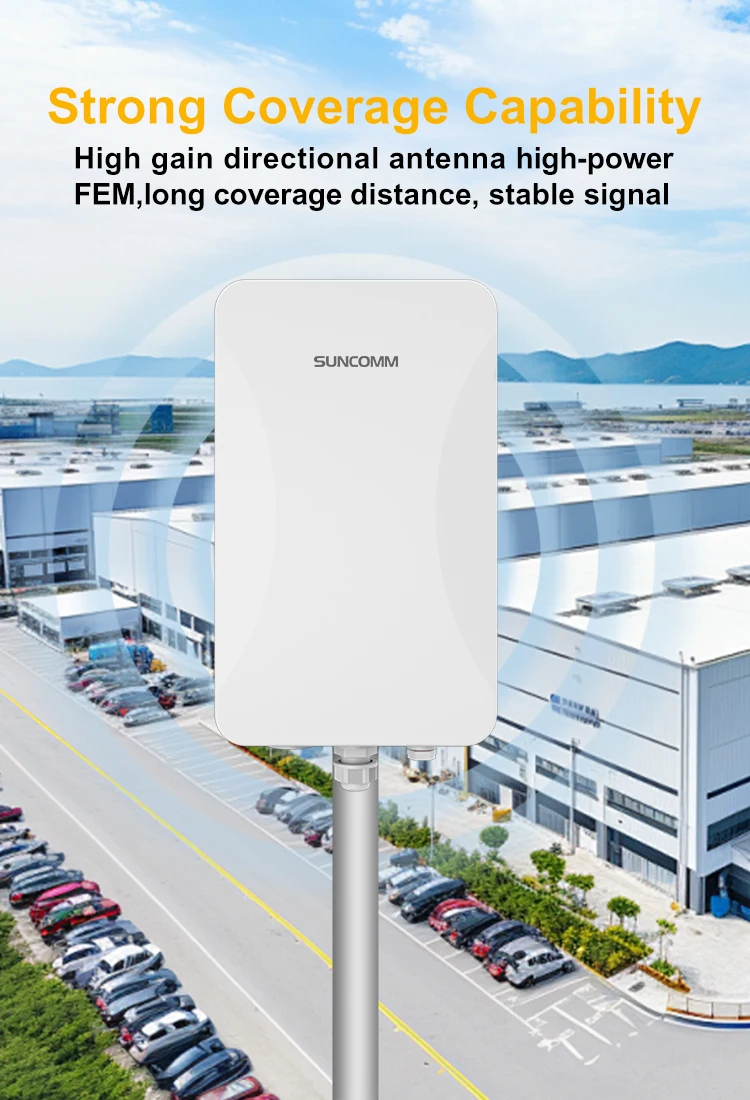

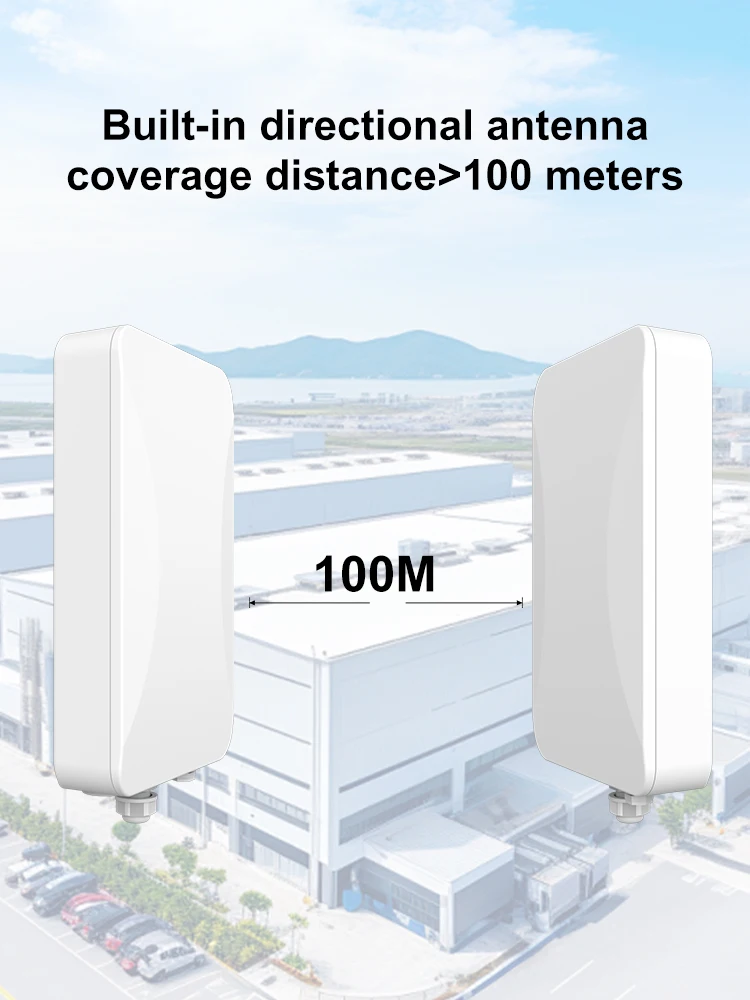

Antenna 2.4G/5G	4pcs*2.4G/5G dual band directional antennas, 2.4G antenna gain: 7dbi, 5G antenna gain: 6dBi

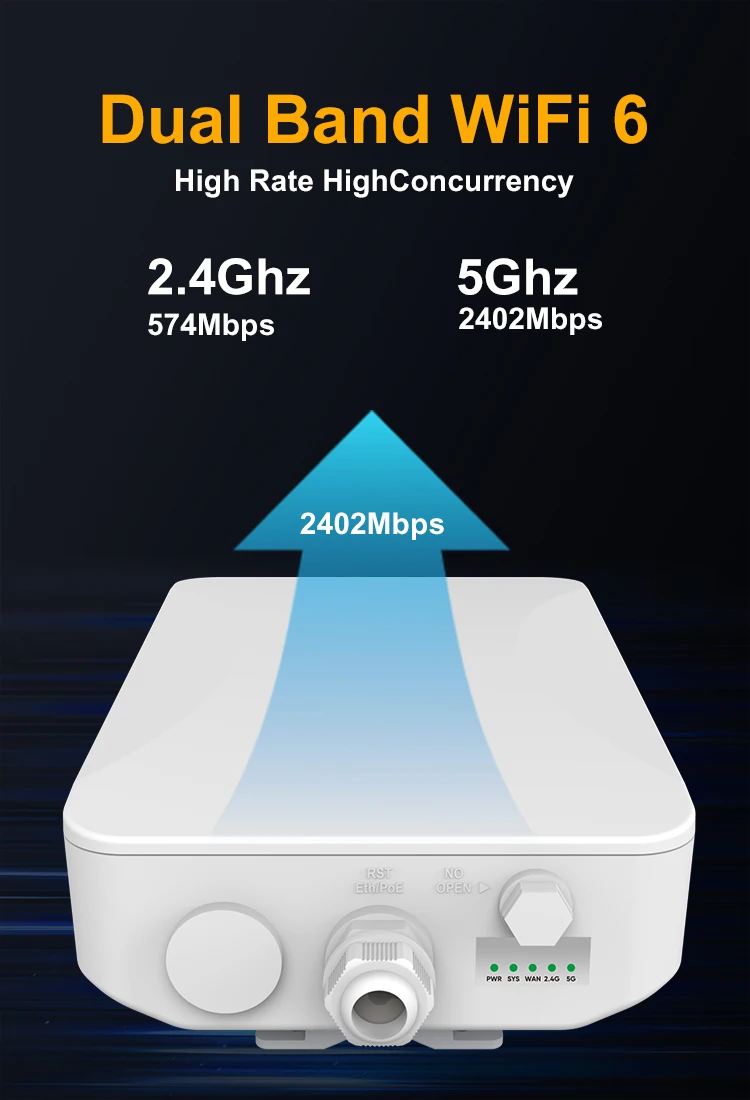

Maximum speed	2.4G provides a maximum access speed of 574Mbps, while 5G provides a maximum access speed of 2402Mbps
2.4G wireless power	802.11b,802.11g,802.11n HT20,802.11n HT40,802.11ax HE20,802.11ax HE40
2.4G EVM	802.11b:≤-10 dB ； 802.11g: ≤-25 dB ； 802.11n:≤-28 dB； 802.11ax:≤-35 dB
5G EVM	802.11a:≤-25 dB ； 802.11n: ≤-28 dB ； 802.11ac:≤-32 dB； 802.11ax:≤-35 dB
Frequency offset (ppm)	± 20ppm

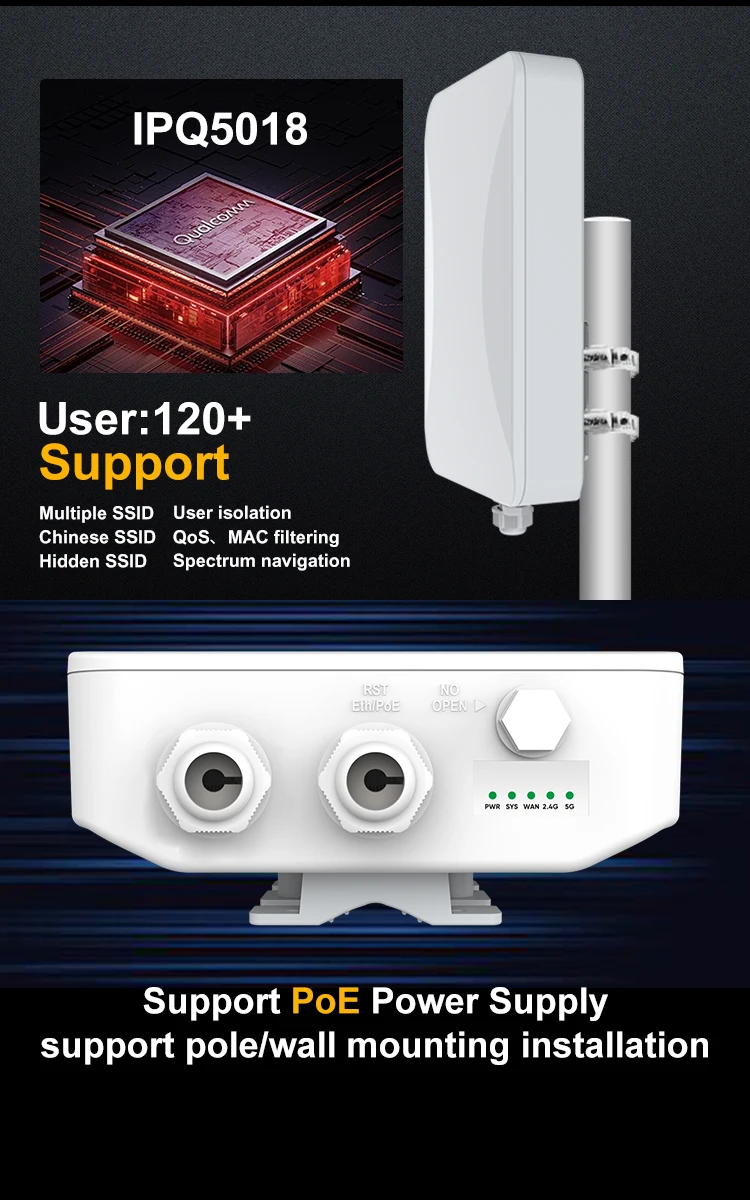

Interface (RJ45)	1*10/100/1000/2500Mbps adaptive WAN port, supporting POE 48V power supply;
Interface (RJ45)	1*10/100/1000Mbps adaptive LAN port;
External buttons	Reset button (press and hold for 6-10 seconds to restore factory default configuration)
status indicator light	PWR light, SYS light, WAN port light, 2.4G light, 5.8G light
Power supply	PoE 802.3at
Maximum power consumption	＜16W
Product size	304mm × 181mm × 88mm
Weight	1.6kg
working environment	Normal operating temperature: -30 ° C to 55 ° C; storage temperature: -40 ° C to 70 ° C; humidity: 5% to 95% (no condensation)

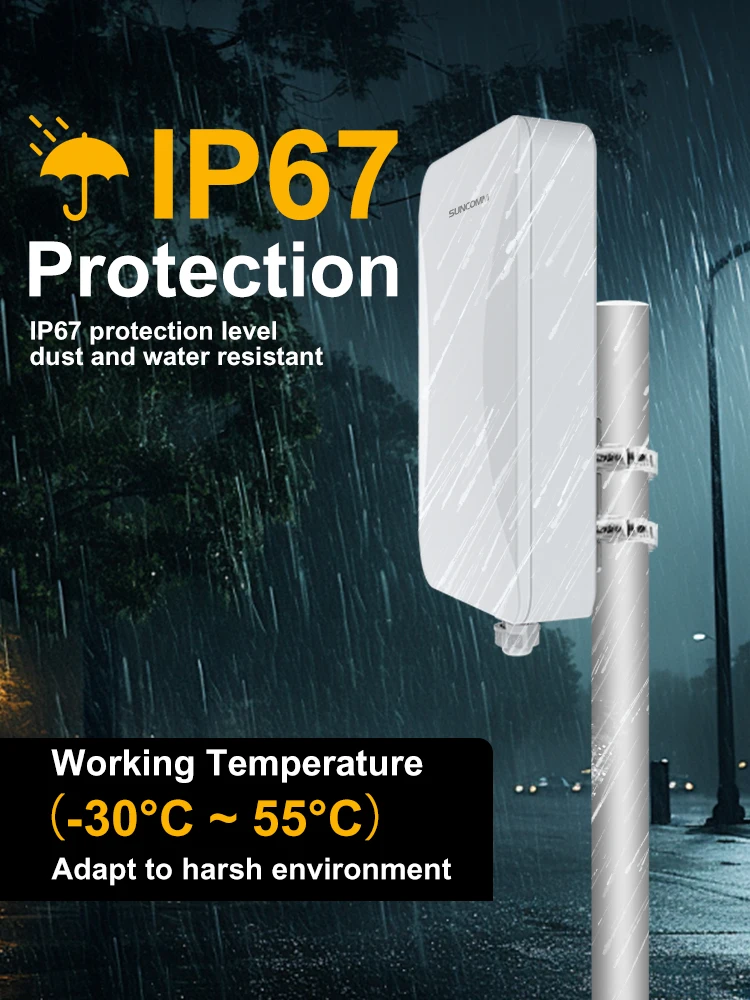

Protection level	IP67
ESD	Air discharge+/-8kV, contact discharge+/-6kV
Surge	Common mode 4kV, differential mode 2kV
Software specifications

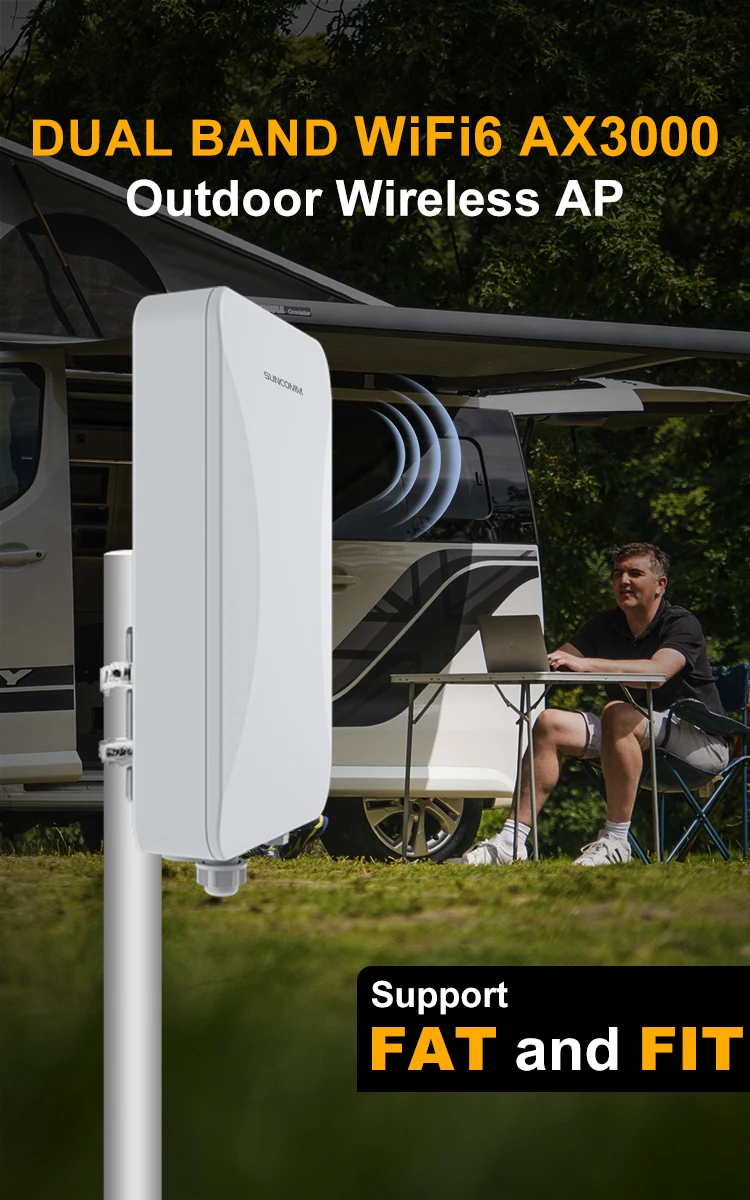

Home page	Working modes: Fat AP mode and Thin AP mode
		Wireless AP download rate, wireless AP upload rate, runtime
		Device information, device description, intranet information, WIFI information
Support mode	Gateway mode: the device connects to the WAN through the WAN port and then uses static IP, DHCP or PPPOE to access the Internet
Support mode		AP mode: The device covers wireless network signals to other clients and devices, and uses Ethernet to connect to other routers to access the wide area network
Wireless function	SSID Broadcast
		Number of SSIDs: 4 (2.4GHz)+4 (5GHz), supporting Chinese SSIDs
		Hide SSID function
		Wireless encryption: OPEN, WPA/WPA2PSK-TKIPIES, WPA3PSK-AES
		Wireless MAC address filtering: supports whitelist
		Spectrum navigation (5G priority)
		WiFi timed shutdown function
		User isolation: wireless network isolation, AP internal isolation
		Transmission power setting
		Wireless client quantity limit
		QoS：WMM
Network function	Connection method: Static address, obtained from management server, obtained from gateway
		DHCP Server: It can be a built-in DHCP server or an external DHCP server
		Cloud platform server
		Firewall function
		PPPOE function: Supports PPPOE dial-up function
Equipment Management	Backup configuration information
		Restore configuration information
		Restore factory settings
		Restarting includes scheduled restarts and immediate restarts
		Firmware update
		Time management includes system display of time and time synchronization
		system log
		Fat thin AP switching function
