Máy chủ lưu trữ dạng tháp Supermicro SSG-521E-E1CR24L, hỗ trợ socket đơn, tương thích với bộ xử lý Intel Xeon thế hệ thứ 4/5, 24 khay LFF, có sẵn trong kho

995

Đã bán

144.400.996đ

Máy chủ lưu trữ dạng tháp Supermicro SSG-521E-E1CR24L, hỗ trợ socket đơn, tương thích với bộ xử lý Intel Xeon thế hệ thứ 4/5, 24 khay LFF, có sẵn trong kho

995

Đã bán

144.400.996đ

Thông tin

Xem chi tiết

Số lượng

Dung lượng bộ nhớ tối đa

Max xử lý

Số lượng

Đơn vị

1 Đơn vị

Chọn loại hàng (ví dụ:màu sắc ,kích thước)

Thông số sản phẩm

Danh Mục

Máy chủ

Thuế VAT

Giá có VAT

144.400.996đ

Mã

3edJI4Wis4

Nhãn hiệu

Update

Xuất xứ

Update

Thông tin

Máy chủ lưu trữ dạng tháp Supermicro SSG-521E-E1CR24L, hỗ trợ socket đơn, tương thích với bộ xử lý Intel Xeon thế hệ thứ 4/5, 24 khay LFF, có sẵn trong kho

Mô tả sản phẩm

Specification

• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks

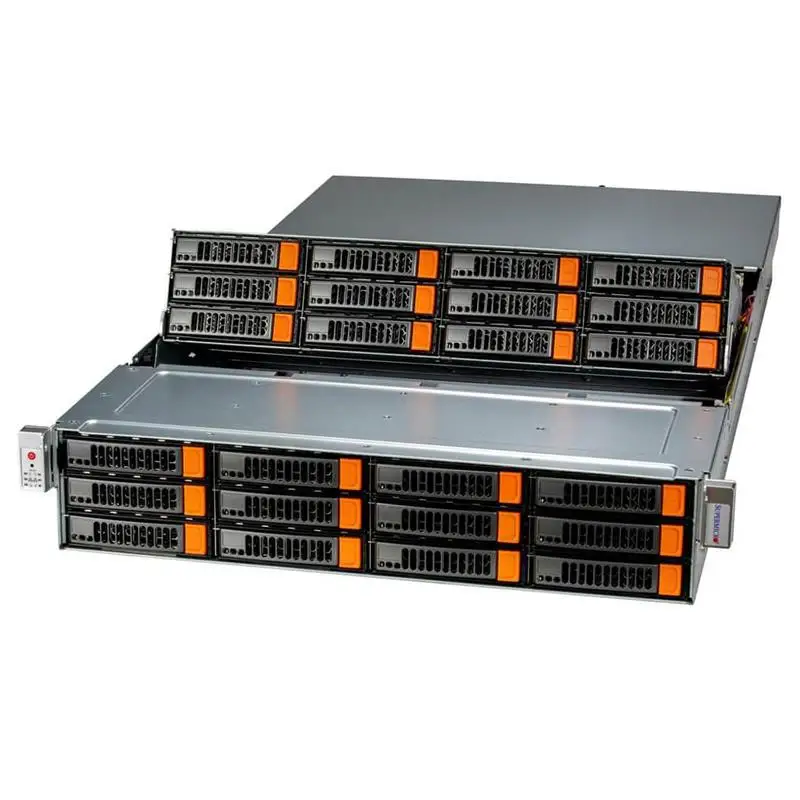

Barebone 2U Rackmount SuperServer, Support Single Socket E (LGA-4677), Supporting Intel Xeon Scalable 4th and 5th Generation
Processors (Up to 36-Core/72Thread Up to 180MB Cache). Up to 4TB in 16 DIMM slots, RDIMM, Chipset: Intel C741, On-Board: HBA
Controller support via Broadcom 3808. Drive Bays: 12x Front Hot-swap 3.5in SAS/SATA Drive Bays, 12x Top-loading Hot-swap 3.5in
SAS/SATA Drive Bays, 2x Rear Hot-swap 2.5in SATA Drive Bays, Network Connectivity: Via AIOM, 1600W Power Supply -
(CSE-826S3TS-R1K62P1 + X13SEDW-F) - SSG-521E-E1CR24L

Product Description

Product SKUs	SSG-521E-E1CR24L
Motherboard

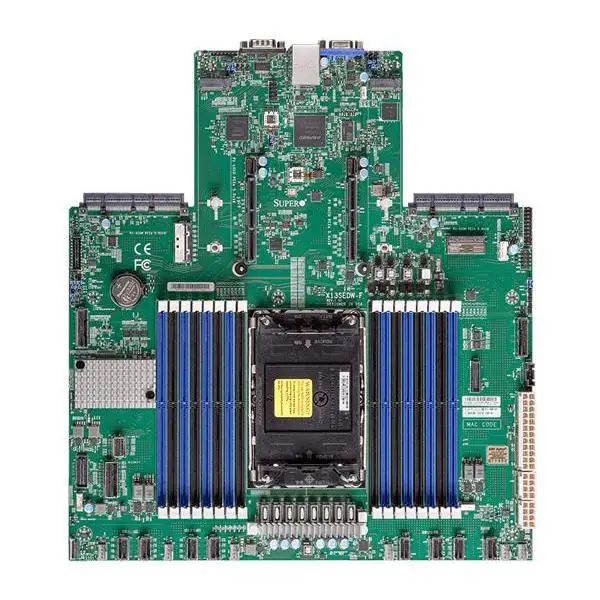

Motherboard	Super X13SEDW-F
Processor
CPU	Single Socket E (LGA-4677)
	5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 180MB Cache
Note	Supports 120W - 300W TDP CPUs (Air Cooled)
System Memory
Memory	View Memory Options
	Slot Count: 16 DIMM slots
	Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	Via AIOM
	View AOC Options
	View AIOM Options
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe	View NVMe Options

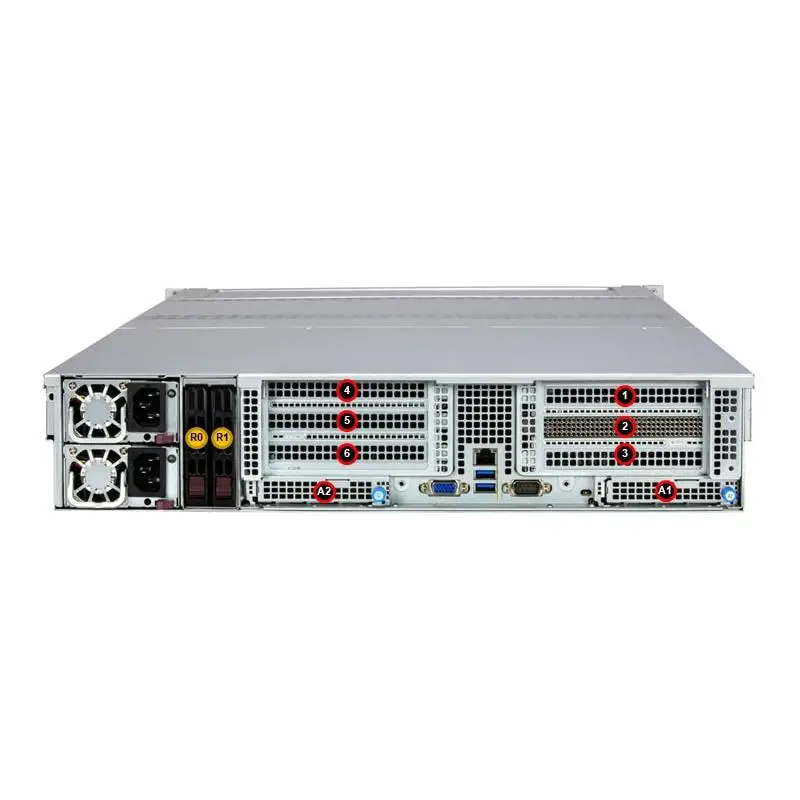

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)
DOM	2 Super DOM (Disk on Module) port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	KVM with dedicated LAN
	Redfish API
	SuperDoctor® 5
	IPMI 2.0
	Supermicro Power Manager (SPM)
	Supermicro Update Manager (SUM)
	Supermicro Server Manager (SSM)
	Super Diagnostics Offline
Power configurations	Power-on mode for AC power recovery
	ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
	Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware
	Secure Boot
	Secure Firmware Updates
	Automatic Firmware Recovery
	Supply Chain Security: Remote Attestation
	Runtime BMC Protections
	System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
	7 Phase-switching voltage regulator
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
	Thermal Control for fan connectors
Chassis
Form Factor	2U Rackmount
Model	CSE-826S3TS-R1K62P1
Dimensions and Weight
Height	3.5"
Width	17.2"
Depth	34"
Package	12" (H) x 29" (W) x 52" (D)
Weight	Gross Weight: 74.5 lbs (33.79 kg)
	Net Weight: 52 lbs (23.59 kg)
Available Color	Silver
Front Panel
LED	Power status
	Network activity
	System information (overheat/UID)
	SSD activity
Buttons	Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration	View Drive Options
	2 rear hot-swap 2.5" SATA drive bay(s)
	12 front hot-swap 3.5" SAS/SATA drive bay(s)

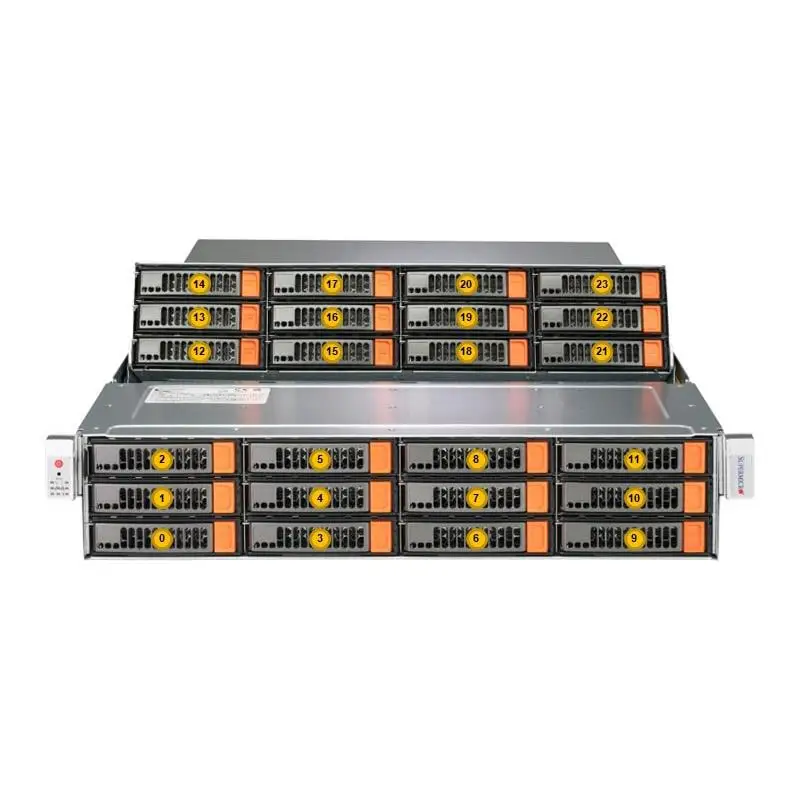

	Default: Total 26 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s)
	12 top-loading hot-swap 3.5" SAS/SATA drive bay(s)
	Option A: Total 28 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) 2 rear hot-swap 2.5" NVMe drive bay(s)
	2 rear hot-swap 2.5" NVMe drive bay(s)
	Option B: Total 30 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s) 4 rear hot-swap 2.5" NVMe drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s)
	4 rear hot-swap 2.5" NVMe drive bay(s)
M.2	View M.2 Options
	2 M.2 NVMe slot(s) (M-key 2280/22110)
System Cooling
Fans	4 Heavy Duty 8cm Fan(s)
Power Supply
Dimension (WxHxL)	73.5 x 40 x 203 mm
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac)
	Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
AC Input	1000W: 100-127Vac / 50-60Hz
	1600W: 200-240Vac / 50-60Hz
Output Type	Backplanes (gold finger)
Certification	Titanium Level
	[Test Report]
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 90% (Non-Condensing)
	Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
