Máy chủ Supermicro SSG-621E-ACR16H Tower Dual Xeon 4TB DDR5 16Bay SAS3 NVMe 10GbE 1600W Titanium Private Mold xuất xứ Mỹ, có sẵn trong kho

Product SKUsSuperServer SSG-621E-ACR16HMotherboardSuper X13DEI-TProcessorCPU * Dual Socket E (LGA-4677)
* 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Note * Supports up to 270W TDP CPUs (Air Cooled)

System MemoryMemory * Slot Count: 16 DIMM slots
* Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
* View Memory Options

Memory Voltage * 1.1V

On-Board DevicesChipset * Intel® C741

Network Connectivity * 2 RJ45 10GbE with Broadcom® BCM57416
* View AOC Options

Input / OutputLAN * 1 RJ45 1 GbE Dedicated BMC LAN port
* 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1)

USB * 4 USB 3.0 ports(rear)

Video * 1 VGA port(Rear)

Serial * 1 COM port(Rear)

TPM * 1 TPM header

System BIOSBIOS Type * AMI 32MB SPI Flash EEPROM

ManagementSoftware * SuperCloud Composer®
* Supermicro Server Manager (SSM)
* Supermicro Update Manager (SUM)
* Supermicro SuperDoctor® 5 (SD5)
* Super Diagnostics Offline (SDO)
* Supermicro Thin-Agent Service (TAS)

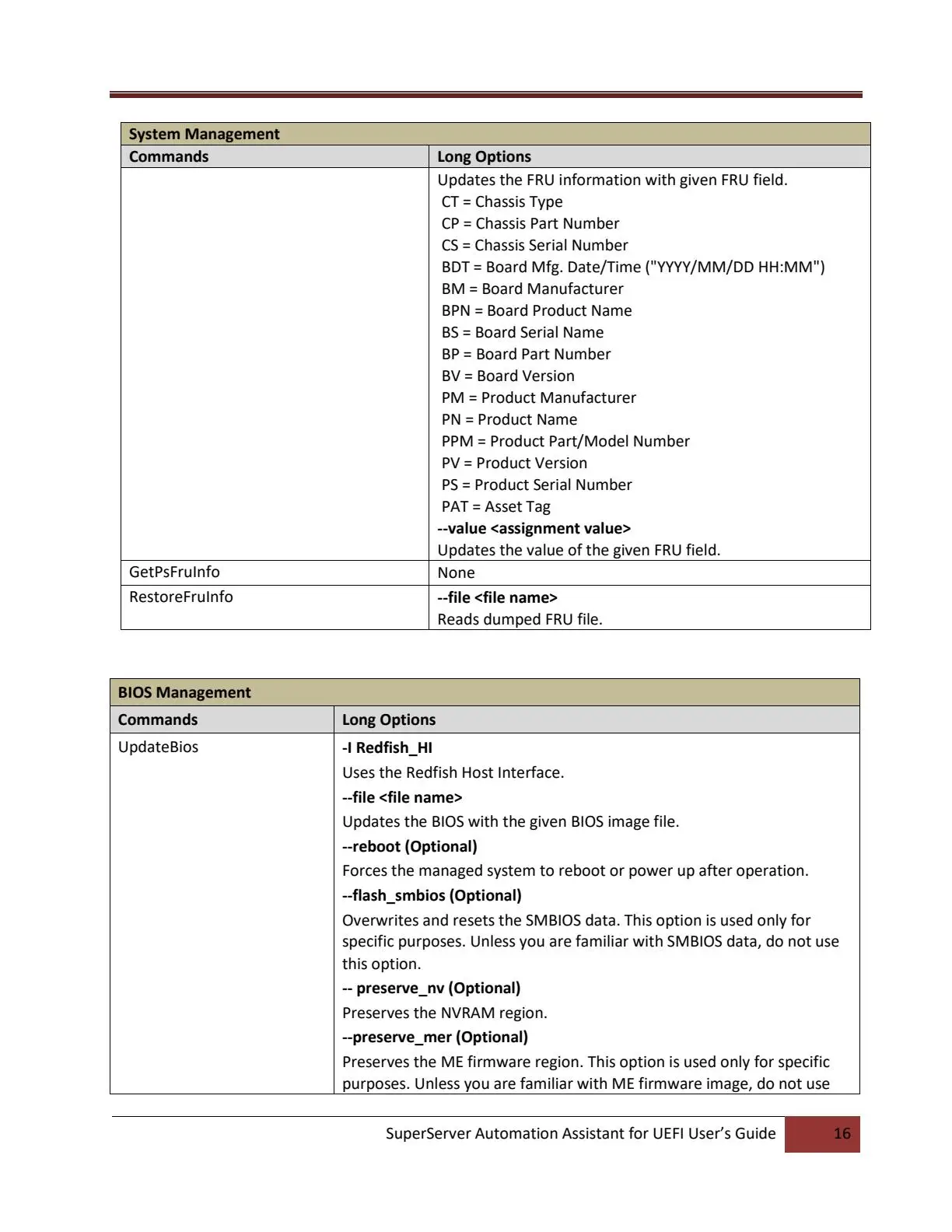

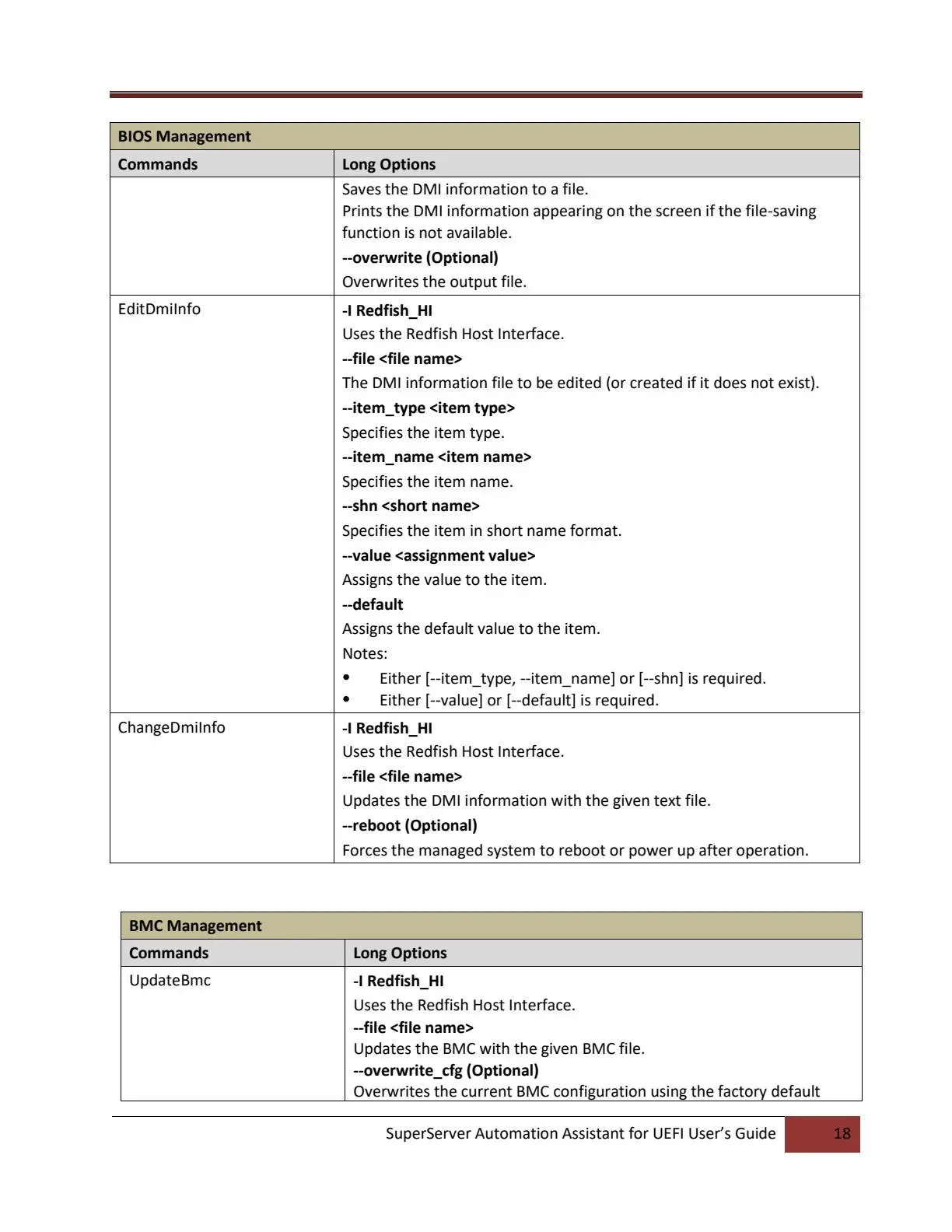

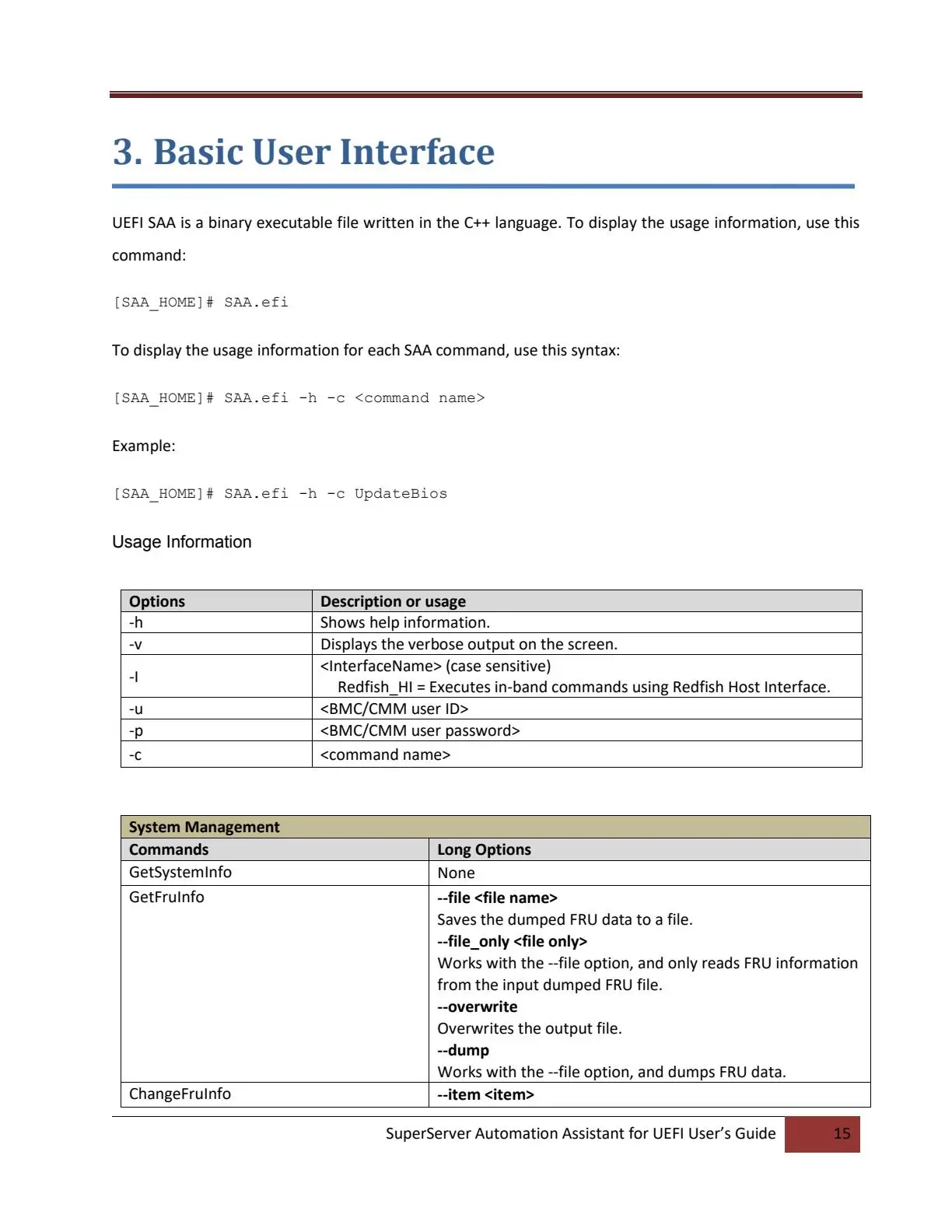

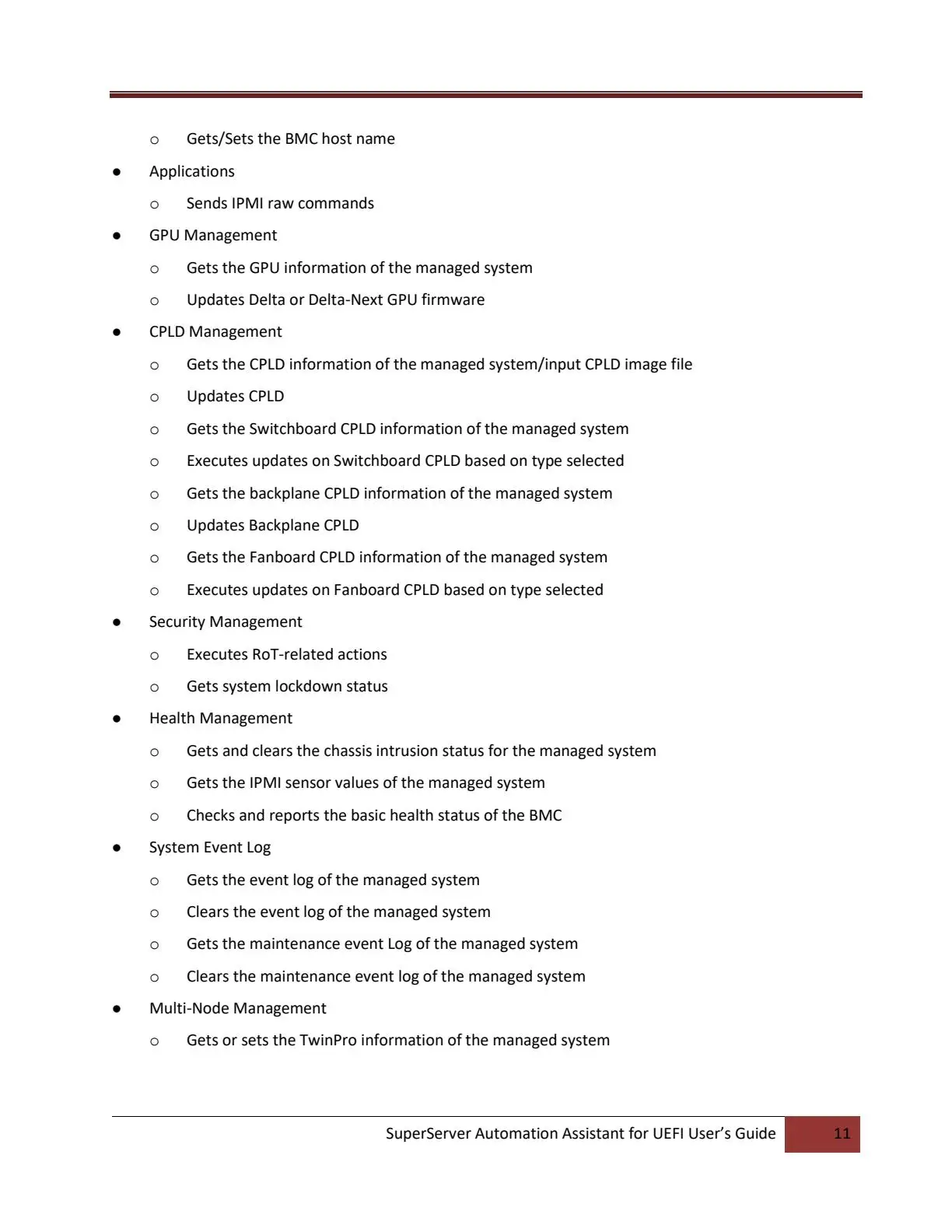

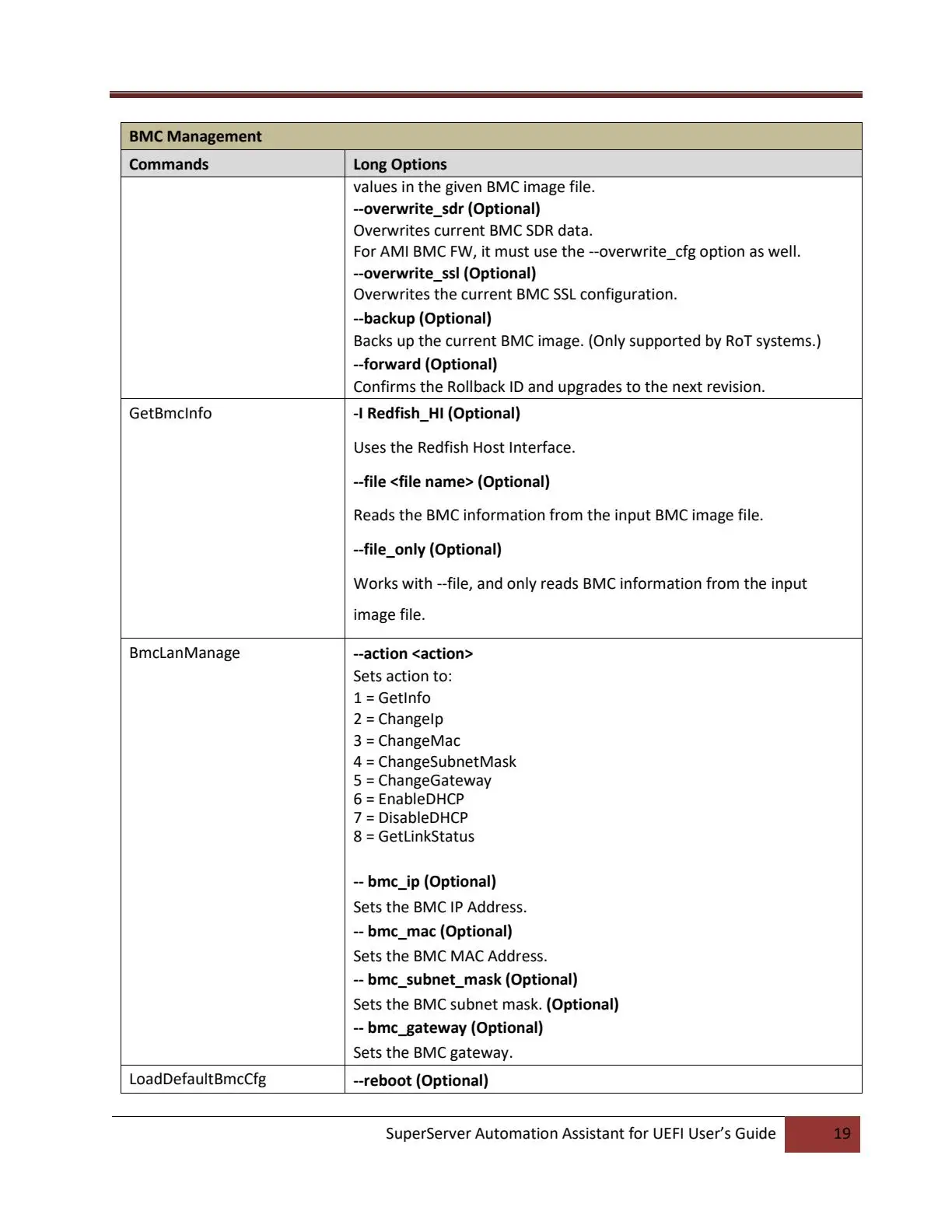

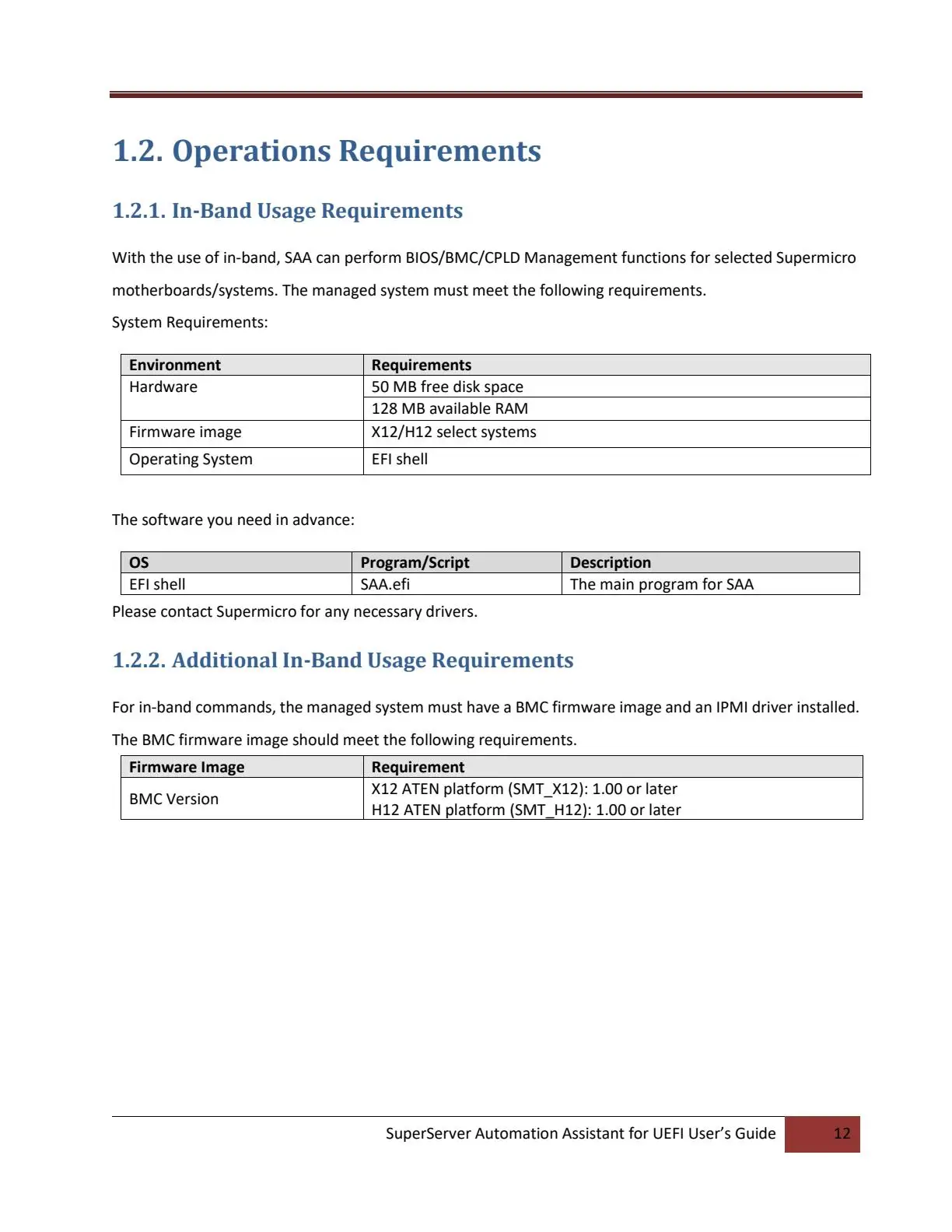

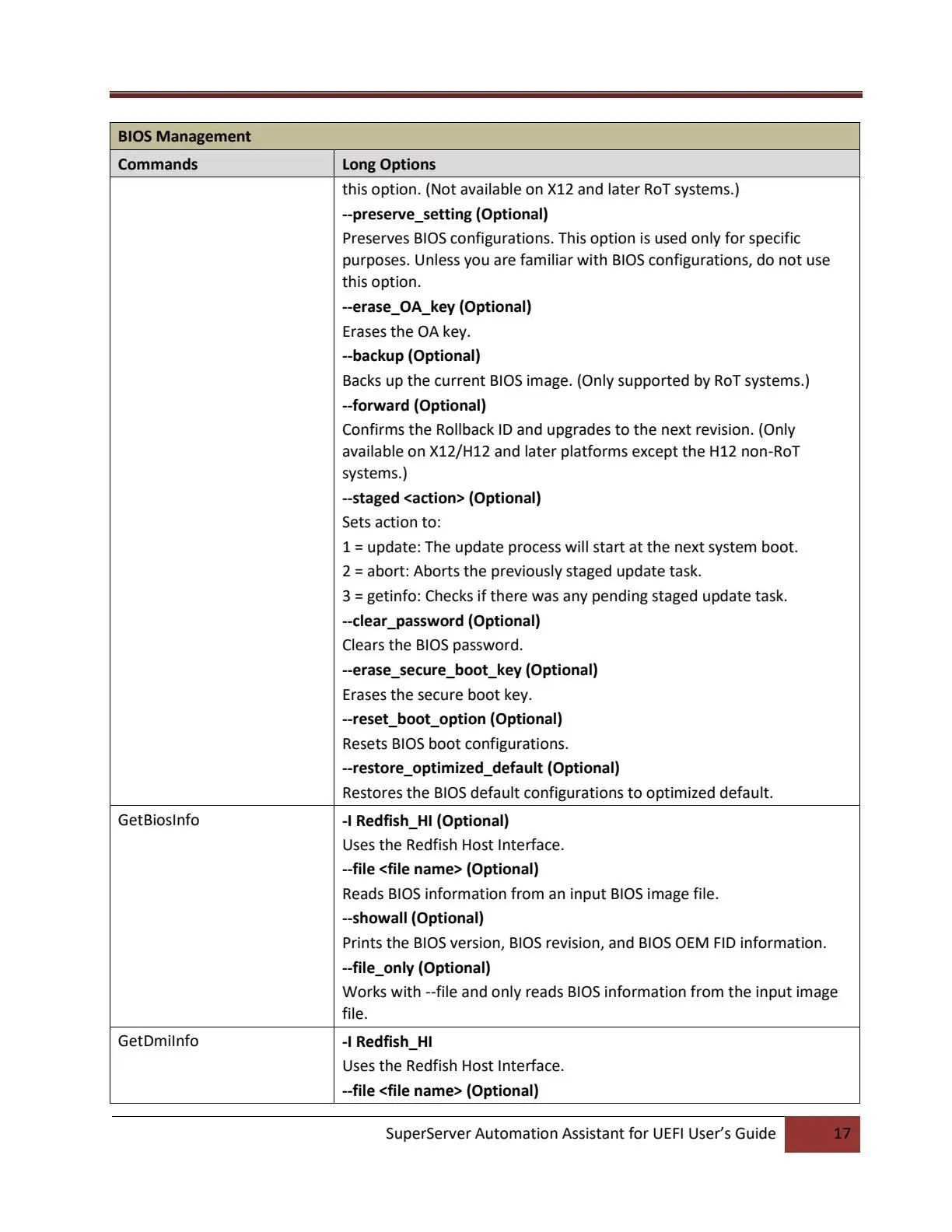

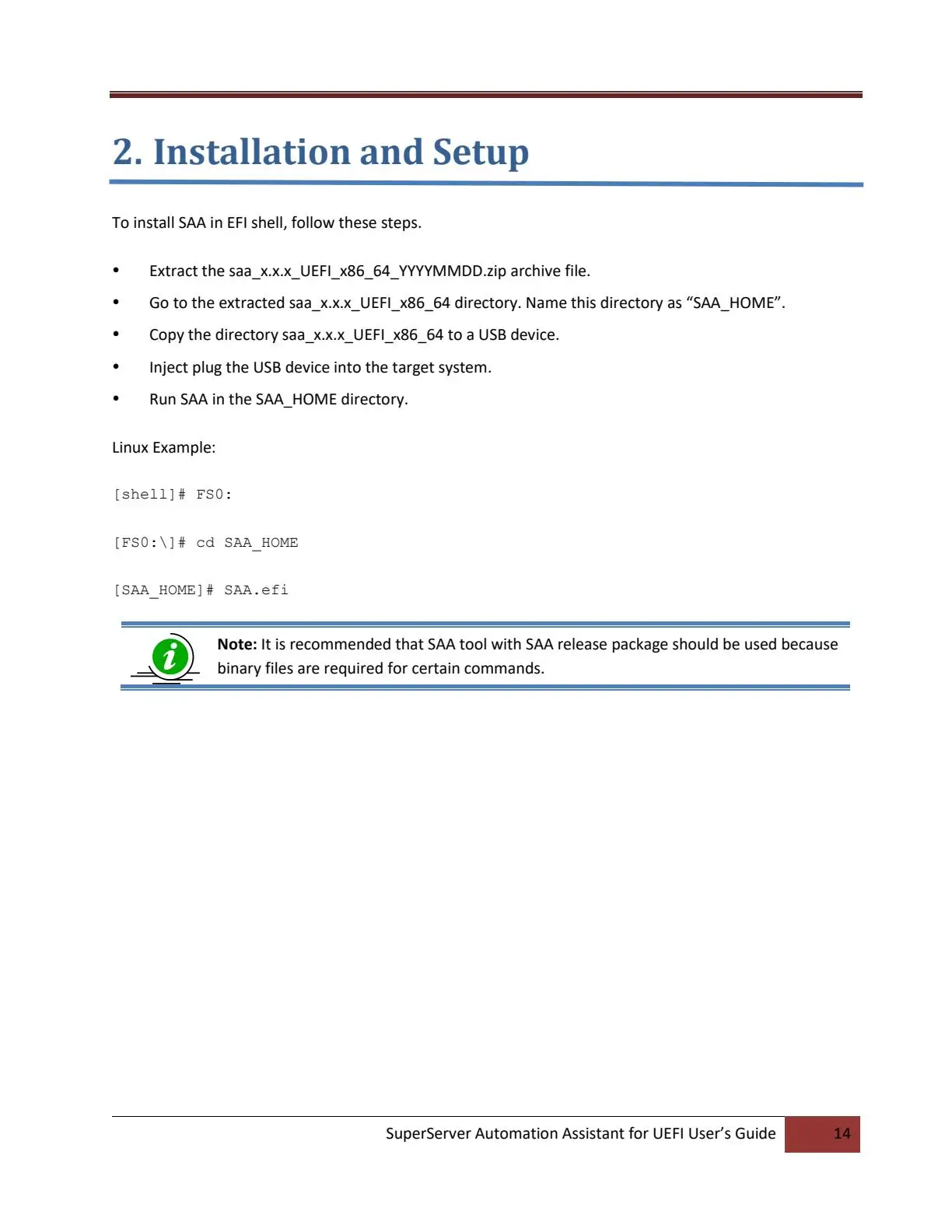

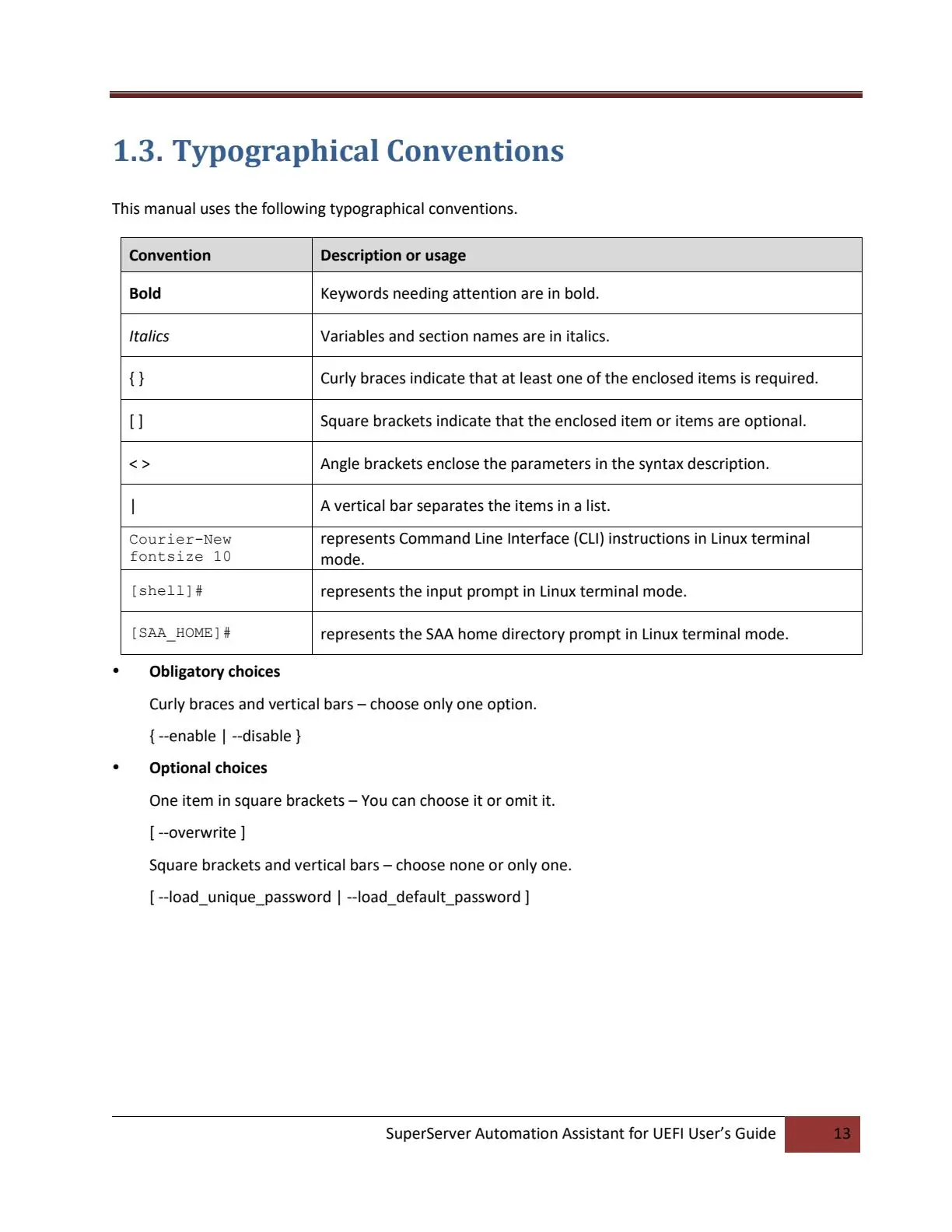

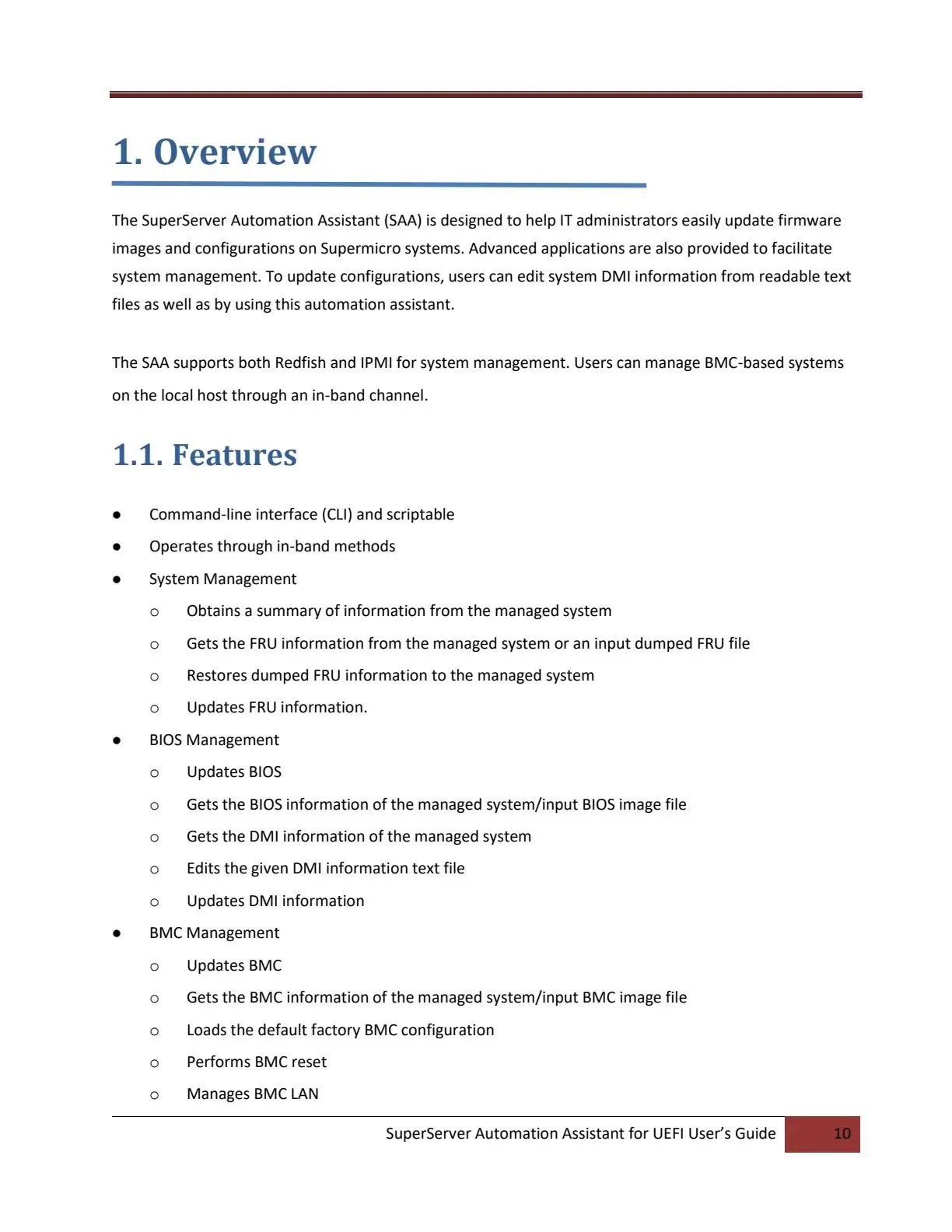

* SuperServer Automation Assistant (SAA) New!

Power configurations * Power-on mode for AC power recovery
* ACPI Power Management

SecurityHardware * Trusted Platform Module (TPM) 2.0
* Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features * Cryptographically Signed Firmware
* Secure Boot
* Secure Firmware Updates
* Automatic Firmware Recovery
* Supply Chain Security: Remote Attestation
* Runtime BMC Protections
* System Lockdown

PC Health MonitoringCPU * Monitors for CPU Cores, Chipset Voltages, Memory
* 7+1 Phase-switching voltage regulator

FAN * Fans with tachometer monitoring
* Status monitor for speed control
* Pulse Width Modulated (PWM) fan connectors

Temperature * Monitoring for CPU and chassis environment
* Thermal Control for fan connectors

ChassisForm Factor * 2U Rackmount

Model * CSE-829HTS-R1K62LPBP2

Dimensions and WeightHeight * 3.5" (89 mm)

Width * 17.2" (437 mm)

Depth * 27.75" (705 mm)

Package * 10.8" (H) x 25.9" (W) x 39.3" (D)

Weight * Gross Weight: 62 lbs (28.12 kg)
* Net Weight: 41.5 lbs (18.82 kg)

Available Color * Silver

Front PanelLED * HDD Fail LED
* Network Activity LEDs
* Power Fail LED
* Power status LED
* System Information LED

Buttons * Power On/Off button
* System Reset button

Expansion SlotsPCI-Express (PCIe) Configuration * Default
* 4 PCIe 5.0 x16 (in x16) LP slots
* 2 PCIe 5.0 x8 (in x8) LP slots


* View AOC Options

Drive Bays / StorageDrive Bays Configuration * Default: Total 18 bays * 12 front hot-swap 3.5" SAS/SATA drive bays
* 4 internal hot-swap 3.5" SAS/SATA drive bays
* 2 rear hot-swap 2.5" SATA drive bays


* Option A: Total 6 bays * 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bays


* (*NVMe support may require additional storage controller and/or cables, please see
the optional parts list for details)
* View NVMe Options
* View Drive Options

M.2 * 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
* View M.2 Options

System CoolingFans * 4 Heavy Duty 8cm Fan(s)

Air Shroud * 1 Air Shroud

Power Supply2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)73.5 x 40 x 203 mmInput1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)12V SBMax: 2.1A / Min: 0AOutput TypeBackplanes (gold finger)Certification Titanium Level

[ Test Report ]

Operating EnvironmentROHS * RoHS Compliant

Environmental Spec. * Operating Temperature: 10°C to 35°C (50°F to 95°F)
* Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
* Operating Relative Humidity: 8% to 90% (Non-Condensing)
* Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
