Máy chủ lưu trữ tháp Supermicro SSG-542B-DE1CR90 4U 90Bay mật độ cực cao, hỗ trợ hai bộ xử lý Xeon Scalable thế hệ thứ 4, kết nối 10GbE

198

Đã bán

37.424.781đ

Máy chủ lưu trữ tháp Supermicro SSG-542B-DE1CR90 4U 90Bay mật độ cực cao, hỗ trợ hai bộ xử lý Xeon Scalable thế hệ thứ 4, kết nối 10GbE

198

Đã bán

37.424.781đ

Thông tin

Xem chi tiết

Số lượng

Dung lượng bộ nhớ tối đa

Max xử lý

Số lượng

Đơn vị

1 Đơn vị

Chọn loại hàng (ví dụ:màu sắc ,kích thước)

Thông số sản phẩm

Danh Mục

Máy chủ

Thuế VAT

Giá có VAT

37.424.781đ

Mã

b7ntD7shou

Nhãn hiệu

Update

Xuất xứ

Update

Thông tin

Máy chủ lưu trữ tháp Supermicro SSG-542B-DE1CR90 4U 90Bay mật độ cực cao, hỗ trợ hai bộ xử lý Xeon Scalable thế hệ thứ 4, kết nối 10GbE

Mô tả sản phẩm

Specification

Big Data & Analytics, Data Lake
• HPC and AI/ML Workloads
• Telco & Cloud Service Providers
• Financial Services & Healthcare Image Archives
• Content Repositories
• Government Data Protection

Barebone 4U Rackmount SuperServer, Support Single Socket E2 (LGA-4710), Supporting Intel Xeon 6700/6500 Series Processors With
P-cores or 6700 Series Processors With E-cores, Core Count, Up to 144C/144T, Up to 108MB Cache, Supports up to 350W TDP CPUs (Air
Cooled). Up to 2TB in 16 DIMM slots, DDR5-6400 RDIMM, Chipset: System on Chip, On-Board: NVMe, RAID 0/1 Support, Drive Bays /
Storage: 90 Top-loading Hot-swap 3.5in/2.5in SAS/SATA Drive Bays, 2 M.2 PCIe 4.0 x2 NVMe Slots (M-key 2280/22110). Network
Connectivity: No NIC Option Supported. 2600W Power Supply - (CSE-947HTS-R2K63P + X14SBSC) - SSG-542B-DE1CR90

Product Description

System Memory
Memory Voltage	1.1V
Memory	View Memory Options
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
On-Board Devices
Chipset	System on Chip
Network Connectivity	No NIC option supported
View AOC Options
NVMe	NVMe; RAID 0/1 support
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 64MB SPI Flash
Management
Software	Supermicro Thin-Agent Service (TAS)
Supermicro Server Manager (SSM)
SuperCloud Composer®
Super Diagnostics Offline (SDO)
SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery
ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Drive Bays / Storage
Drive Bays Configuration	View Drive Options
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)

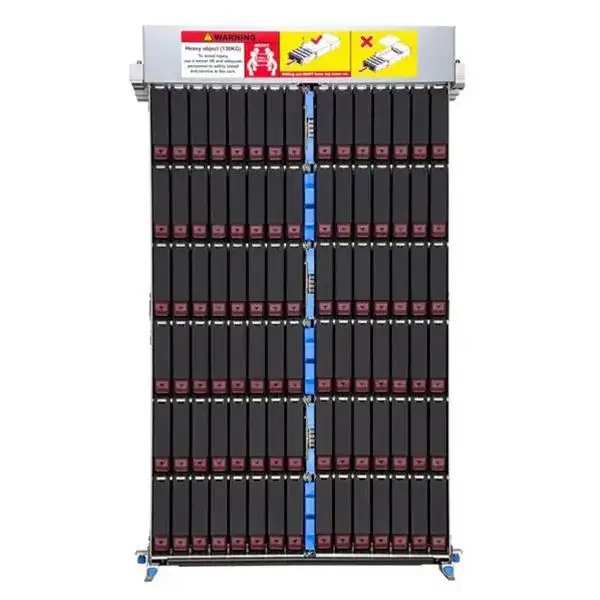

Default: Total 90 bays 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays
90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays
2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays
Option A: Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays
M.2	2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
Product SKUs
Product SKUs	SSG-542B-DE1CR90
Motherboard

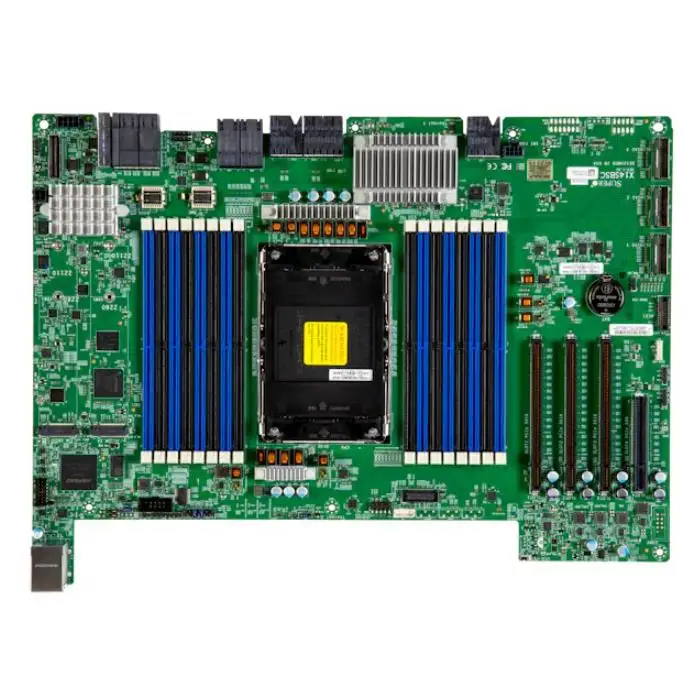

Motherboard	Super X14SBSC
Processor
CPU	Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Single Socket E2 (LGA-4710)
Core Count	Up to 144C/144T; Up to 108MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)
Chassis
Form Factor	4U Rackmount
Model	CSE-947HTS-R2K63P
Dimensions and Weight
Height	6.96" (177 mm)
Width	17.6" (447 mm)
Depth	43.3" (1099 mm)
Package	N/A
Weight	Gross Weight: 225 lbs (102.06 kg)
Net Weight: 130 lbs (58.97 kg)
Palletized Packing (W x H x L)	35.82" (910 mm) x 29.92" (755 mm) x 53.15" (1345 mm)
Available Color	N/A
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
System Cooling
Fans	6 Heavy Duty 8cm Fan(s)
1 Counter Rotating 6cm Fan(s)
Operating Environment
Environmental Spec.	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Operating Temperature: 10°C to 35°C (50°F to 95°F)
